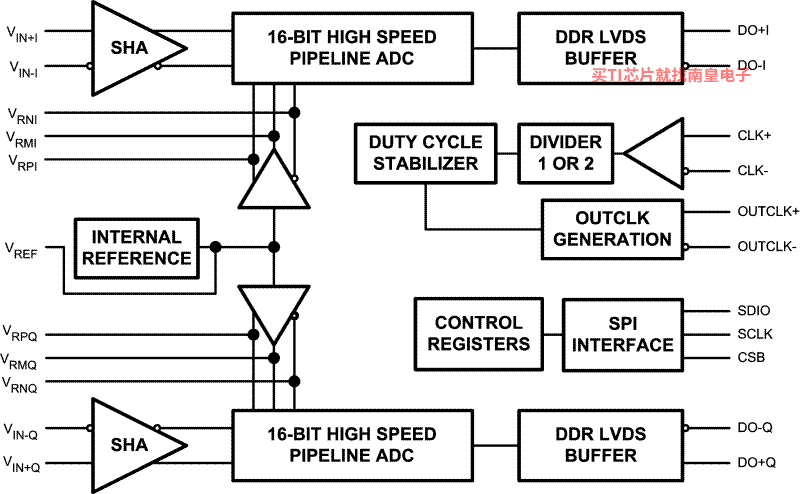

The ADC16DV160 is a monolithic dual channel high performance CMOS analog-to-digital converter capable of converting analog input signals into 16-bit digital words at rates up to 160 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and external component count while providing excellent dynamic performance. Automatic power-up calibration enables excellent dynamic performance and reduces part-to-part variation, and the ADC16DV160 can be re-calibrated at any time through the 3-wire Serial Peripheral Interface (SPI). An integrated low noise and stable voltage reference and differential reference buffer amplifier eases board level design. The on-chip duty cycle stabilizer with low additive jitter allows a wide range of input clock duty cycles without compromising dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.4 GHz. The interface between the ADC16DV160 and a receiver block can be easily verified and optimized via fixed pattern generation and output clock position features. The digital data is provided via dual data rate LVDS outputs – making possible the 68-pin, 10 mm x 10 mm VQFN package. The ADC16DV160 operates on dual power supplies of +1.8V and +3.0V with a power-down feature to reduce power consumption to very low levels while allowing fast recovery to full operation.

• Low Power Consumption
• On-Chip Precision Reference and Sample-and-Hold Circuit
• On-Chip Automatic Calibration During Power-Up
• Dual Data Rate LVDS Output Port
• Dual Supplies: 1.8V and 3.0V Operation

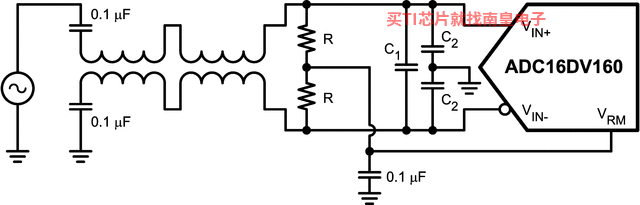

• Selectable Input Range: 2.4 and 2.0 VPP
• Sampling Edge Flipping with Clock Divider by 2 Option
• Internal Clock Divide by 1 or 2
• On-Chip Low Jitter Duty-Cycle Stabilizer
• Power-Down and Sleep Modes
• Output Fixed Pattern Generation
• Output Clock Position Adjustment
• 3-Wire SPI
• Offset Binary or 2's Complement Data Format
• 68-Pin VQFN Package (10x10x0.8, 0.5mm Pin-Pitch)

Key Specifications

• Resolution: 16 Bits
• Conversion Rate: 160 MSPS
• SNR (@FIN = 30 MHz): 78 dBFS (typ)
• SNR (@FIN = 197 MHz): 76 dBFS (typ)
• SFDR (@FIN = 30 MHz): 95 dBFS (typ)
• SFDR (@FIN = 197 MHz): 89 dBFS (typ)
• Full Power Bandwidth: 1.4 GHz (typ)
• Power Consumption:
  • Core per channel: 612 mW (typ)
  • LVDS Driver: 117 mW (typ)
  • Total: 1.3W (typ)
• Operating Temperature Range (-40°C ~ 85°C)

• Sample rate (Max) (MSPS)
• 160
• Resolution (Bits)
• 16
• Number of input channels
• 2
• Interface type
• DDR LVDS, Parallel LVDS
• Analog input BW (MHz)
• 1400
• Features
• High Performance
• Rating
• Catalog
• Input range (Vp-p)
• 2, 2.4
• Power consumption (Typ) (mW)
• 1340
• Architecture
• Pipeline
• SNR (dB)
• 78
• ENOB (Bits)
• 12.3
• SFDR (dB)
• 95
• Operating temperature range (C)
• -40 to 85
• Input buffer
• No

ADC16DV160的完整型号有：ADC16DV160CILQ/NOPB、ADC16DV160CILQE/NOPB、ADC16DV160CILQX/NOPB，以下是这些产品的关键参数及官网采购报价：

ADC16DV160CILQ/NOPB，工作温度：-40 to 85，封装：VQFN (NKE)-68，包装数量MPQ：168个，MSL 等级/回流焊峰值温度：Level-4-260C-72 HR，引脚镀层/焊球材料：NIPDAUAG，TI官网ADC16DV160CILQ/NOPB的批量USD价格：101.704（1000+）

ADC16DV160CILQE/NOPB，工作温度：-40 to 85，封装：VQFN (NKE)-68，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-4-260C-72 HR，引脚镀层/焊球材料：NIPDAUAG，TI官网ADC16DV160CILQE/NOPB的批量USD价格：101.704（1000+）

ADC16DV160CILQX/NOPB，工作温度：-40 to 85，封装：VQFN (NKE)-68，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-4-260C-72 HR，引脚镀层/焊球材料：NIPDAUAG，TI官网ADC16DV160CILQX/NOPB的批量USD价格：99.704（1000+）

ADC16DV160HFEB — ADC16DV160HFEB 评估板

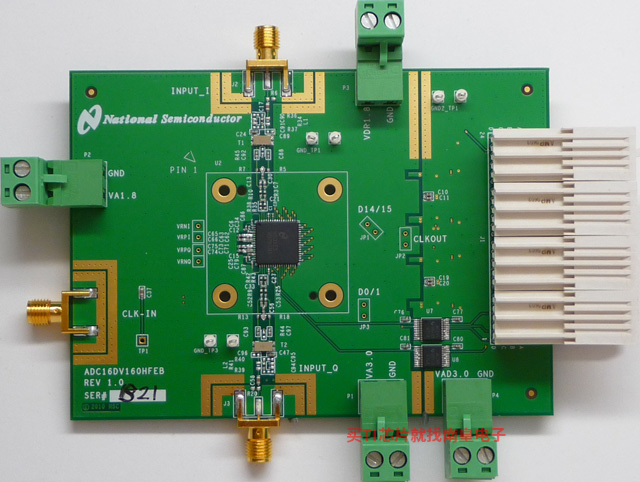

This Design Kit is designed to ease evaluation and design-in of National Semiconductor's ADC16DV160 Dual Channel 16-bit Analog-to-Digital Converter with DDR LVDS outputs, which operates at speeds up 160 Msps.
