The ADS801 is a low-power, monolithic 12-bit, 25MHz Analog-to-Digital (A/D) converter utilizing a small geometry CMOS process. This complete converter includes a 12-bit quantizer, wideband track-and-hold, reference, and three-state outputs. It operates from a single +5V power supply and can be configured to accept either single-ended or differential input signals.

The ADS801 employs digital error correction to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR, and high-oversampling capability give it the extra margin needed for telecommunications, instrumentation, and video applications.

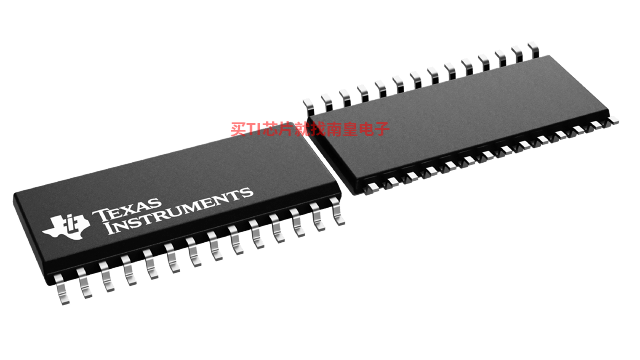

This high-performance A/D converter is specified over temperature for ac and DC performance at a 25MHz sampling rate. The ADS820 is available in an SO-28 package.

• NO MISSING CODES
• LOW POWER:270mW
• INTERNAL REFERENCE
• WIDEBAND TRACK-AND-HOLD:65MHz
• SINGLE +5V SUPPLY
• PACKAGE:SO-28 and SSOP-28
• APPLICATIONS
  • IF AND BASEBAND DIGITIZATION
  • DIGITAL COMMUNICATIONS
  • TEST INSTRUMENTATION
  • CCD IMAGING
    • Copiers
    • Scanners
    • Cameras
  • VIDEO DIGITIZING
  • GAMMA CAMERAS

All trademarks are the property of their respective owners.

• Sample rate (Max) (MSPS)
• 25
• Resolution (Bits)
• 12
• Number of input channels
• 1
• Interface type
• Parallel CMOS
• Analog input BW (MHz)
• 65
• Features
• Low Power
• Rating
• Catalog
• Input range (Vp-p)
• 2
• Power consumption (Typ) (mW)
• 270
• Architecture
• Pipeline
• SNR (dB)
• 66
• ENOB (Bits)
• 10.3
• SFDR (dB)
• 77
• Operating temperature range (C)
• -40 to 85
• Input buffer
• No

ADS801的完整型号有：ADS801U，以下是这些产品的关键参数及官网采购报价：

ADS801U，工作温度：-40 to 85，封装：SOIC (DW)-28，包装数量MPQ：20个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网ADS801U的批量USD价格：18.644（1000+）

PSPICE-FOR-TI — 适用于 TI 设计和模拟工具的 PSpice

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用，包括业内超大的模型库之一，涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库，您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案，然后再进行布局和制造，可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中，您可以搜索 TI (...)

JITTER-SNR-CALC — 用于 ADC 的抖动和 SNR 计算器

JITTER-SNR-CALC 可用于根据输入频率和时钟抖动来计算 ADC 的理论信噪比 (SNR) 性能。
