CD40161B-MIL的基本参数
  • 制造厂商:TI
  • 产品类别:逻辑和电压转换
  • 技术类目:触发器、锁存器和寄存器 - 计数器
  • 功能描述:具有异步清零功能的 CMOS 同步可编程 4 位二进制计数器
  • 点击这里打开及下载CD40161B-MIL的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
快速报价,在行业拥有较高的知名度及影响力
CD40161B-MIL的产品详情:

CD40160B, CD40161B, CD40162B, and CD40163B are 4-bit synchronous programmable counters. The CLEAR function of the CD40162B and CD40163B is synchronous and a low level at the CLEAR\ input sets all four outputs low on the next positive CLOCK edge. The CLEAR function of the CD40160B and CD40161B is asynchronous and a low level at the CLEAR\ input sets all four outputs low regardless of the state of the CLOCK, LOAD\, or ENABLE inputs. A low level at the LOAD\ input disables the counter and causes the output to agree with the setup data after the next CLOCK pulse regardless of the conditions of the ENABLE inputs.

The carry look-ahead circuitry provides for cascading counters for n-bit synchronous applications without additional gating. Instrumental in accomplishing this function are two count-enable inputs and a carry output (COUT). Counting is enabled when both PE and TE inputs are high. The TE input is fed forward to enable COUT. This enabled output produces a positive output pulse with a duration approximately equal to the positive portion of the Q1 output. This positive overflow carry pulse can be used to enable successive cascaded stages. Logic transitions at the PE or TE inputs may occur when the clock is either high or low.

The CD40160B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix). The CD40161B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).

The CD40160B through CD40163B types are functionally equivalent to and pin-compatible with the TTL counter series 74LS160 through 74LS163 respectively.

CD40161B-MIL的优势和特性:
  • Internal look-ahead for fast counting
  • Carry output for cascading
  • Synchronously programmable
  • Clear asynchronous input (CD40160B, CD40161B)
  • Clear synchronous input (CD40162B, CD40163B)
  • Synchronous load control input
  • Low-power TTL compatibility
  • Standardized, symmetrical output characteristics
  • 100% tested for quiescent current at 20 V
  • Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
  • Noise margin (full package temperature range):
    • 1 V at VDD = 5 V
    • 2 V at VDD = 10 V
    • 2.5 V at VDD = 15 V
  • 5-V, 10-V, and 15-V parametric ratings
  • Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
  • Applications
    • Programmable binary and decade counting
    • Counter control/timers
    • Frequency dividing

Data sheet acquired from Harris Semiconductor CD40160B - Decade with Asynchronous Clear CD40161B - Binary with Asynchronous Clear CD40162B - Decade with Synchronous Clear CD40163B - Binary with Synchronous Clear CD40160B, CD40162B, and CD40163B were not acquired from Harris Semiconductor.

CD40161B-MIL的参数(英文):
  • Function
  • Counter
  • Bits (#)
  • 4
  • Technology Family
  • CD4000
  • Supply voltage (Min) (V)
  • 3
  • Supply voltage (Max) (V)
  • 18
  • Input type
  • Standard CMOS
  • Output type
  • Push-Pull
  • Features
  • Balanced outputs, Standard speed (tpd > 50ns), Positive input clamp diode, Presettable
CD40161B-MIL具体的完整产品型号参数及价格(美元):

CD40161B-MIL的完整型号有:CD40161BF3A,以下是这些产品的关键参数及官网采购报价:

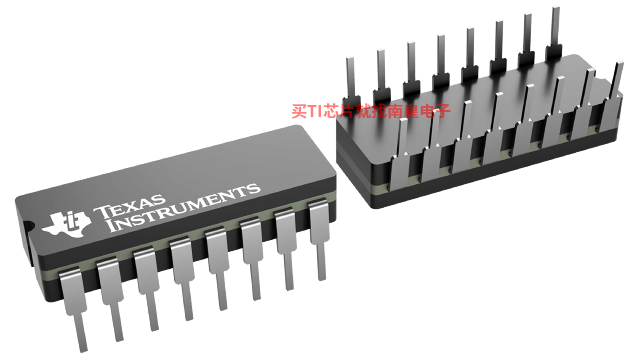

CD40161BF3A,工作温度:-55 to 125,封装:CDIP (J)-16,包装数量MPQ:1个,MSL 等级/回流焊峰值温度:N/A for Pkg Type,引脚镀层/焊球材料:SNPB,TI官网CD40161BF3A的批量USD价格:8.006(1000+)
