- 制造厂商：TI
- 产品类别：逻辑和电压转换
- 技术类目：逻辑门 - 组合门

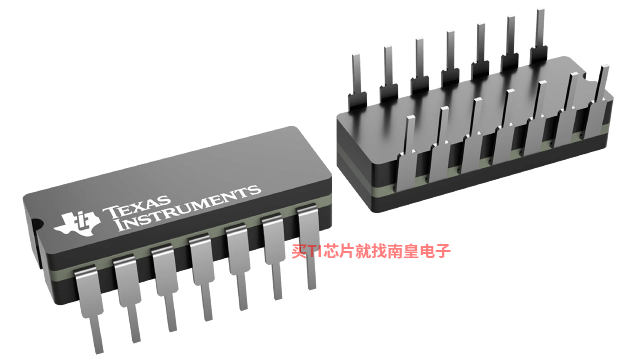

- 功能描述：CMOS 可扩展 4 宽度 2 输入与或非门
- 点击这里打开及下载CD4086B-MIL的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
CD4086B contains one 4-wide 2-input AND-OR-INVERT gate with an INHIBIT/(EXP\) input and an ENABLE/EXP input. For a 4-wide A-O-I function INHIBIT/(EXP\) is tied to VSS and ENABLE/EXP to VDD. See Fig. 10 and its associated explanation for applications where a capability greater than 4-wide is required.
The CD4086B types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).
- Medium-speed operation - tPHL = 90 ns; tPLH = 140 ns (typ.) at 10 V
- INHIBIT and ENABLE inputs
- Buffered outputs
- 100% tested for quiescent current at 20 V
- Maximum input leakage current of 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- Noise margin (over full package temperature range): 1 V at VDD = 5 V 2 V at VDD = 10 V 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
- Technology Family
- CD4000
- Supply voltage (Min)
- 3
- Supply voltage (Max) (V)
- 18
- Number of channels (#)
- 1
- Inputs per channel
- 2
- IOL (Max) (mA)
- 1.5
- IOH (Max) (mA)
- -1.5
- Input type
- Standard CMOS
- Output type
- Push-Pull
- Features
- Standard speed (tpd > 50ns)
- Data rate (Max) (Mbps)
- 8
- Rating
- Military
- Operating temperature range (C)
- -55 to 125
CD4086B-MIL的完整型号有：CD4086BF3A，以下是这些产品的关键参数及官网采购报价：
CD4086BF3A，工作温度：-55 to 125，封装：CDIP (J)-14，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网CD4086BF3A的批量USD价格：7.124（1000+）
