CD54ACT280的基本参数
- 制造厂商：TI
- 产品类别：逻辑和电压转换
- 技术类目：专用逻辑 IC - 数字算术 IC
- 功能描述：9 位奇偶校验发生器/校验器
- 点击这里打开及下载CD54ACT280的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
CD54ACT280的产品详情：
The ’AC280 and ’ACT280 are 9-bit odd/even parity generator/checkers that utilize Advanced CMOS Logic technology. Both even and odd parity outputs are available for checking or generating parity for words up to nine bits long. Even parity is indicated (
E output to any input of an additional ’AC280, ’ACT280 parity checker.
CD54ACT280的优势和特性：
- Buffered Inputs
- Typical Propagation Delay - 10ns at VCC = 5V, TA = 25°C, CL = 50pF
- Exceeds 2kV ESD Protection per MIL-STD-883, Method 3015
- SCR-Latchup-Resistant CMOS Process and Circuit Design
- Speed of Bipolar FAST?/AS/S with Significantly Reduced Power Consumption
- Balanced Propagation Delays
- AC Types Feature 1.5V to 5.5V Operation and Balanced Noise Immunity at 30% of the Supply
- ±24mA Output Drive Current - Fanout to 15 FAST? ICs - Drives 50 Transmission Lines
- Characterized for operation from –40° to 85°C
FAST? is a Trademark of Fairchild Semiconductor.
CD54ACT280的参数（英文）：
- Number of channels (#)
- 9
- Technology Family
- ACT
- Input type
- TTL-Compatible CMOS
- Output type
- Push-Pull
- Features
- Balanced outputs, Very high speed (tpd 5-10ns)
CD54ACT280具体的完整产品型号参数及价格（美元）：
CD54ACT280的完整型号有：CD54ACT280F3A，以下是这些产品的关键参数及官网采购报价：

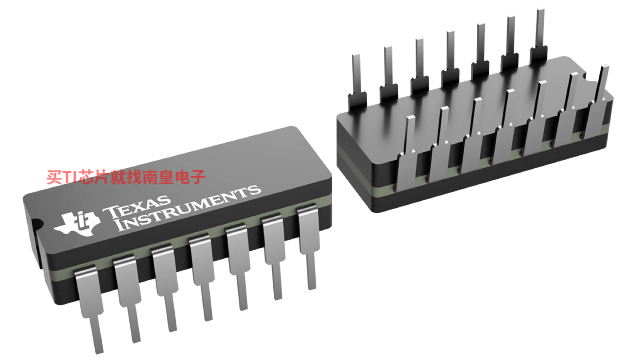

CD54ACT280F3A，工作温度：-55 to 125，封装：CDIP (J)-14，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网CD54ACT280F3A的批量USD价格：33.666（1000+）
CD54ACT280的评估套件：
CD54ACT280F3A，工作温度：-55 to 125，封装：CDIP (J)-14，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网CD54ACT280F3A的批量USD价格：33.666（1000+）
CD54ACT280的电路图解：
CD54ACT280的评估套件：
