CDC351的基本参数
  • 制造厂商:TI
  • 产品类别:时钟和计时
  • 技术类目:时钟缓冲器
  • 功能描述:具有三态输出的 1 线路至 10 线路 3.3V 时钟驱动器
  • 点击这里打开及下载CDC351的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
快速报价,在行业拥有较高的知名度及影响力
CDC351的产品详情:

The CDC351 is a high-performance clock-driver circuit that distributes one input (A) to ten outputs (Y) with minimum skew for clock distribution. The output-enable (OE)\ input disables the outputs to a high-impedance state. The CDC351 operates at nominal 3.3-V VCC.

The propagation delays are adjusted at the factory using the P0 and P1 pins. The factory adjustments ensure that the part-to-part skew is minimized and is kept within a specified window. Pins P0 and P1 are not intended for customer use and should be connected to GND.

CDC351的优势和特性:
  • Low Output Skew, Low Pulse Skew for Clock-Distribution and Clock-Generation Applications
  • Operates at 3.3-V VCC
  • LVTTL-Compatible Inputs and Outputs
  • Supports Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
  • Distributes One Clock Input to Ten Outputs
  • Distributed VCC and Ground Pins Reduce Switching Noise
  • High-Drive Outputs (-32-mA IOH, 32-mA IOL)
  • State-of-the-Art EPIC-IIBTM BiCMOS Design Significantly Reduces Power Dissipation

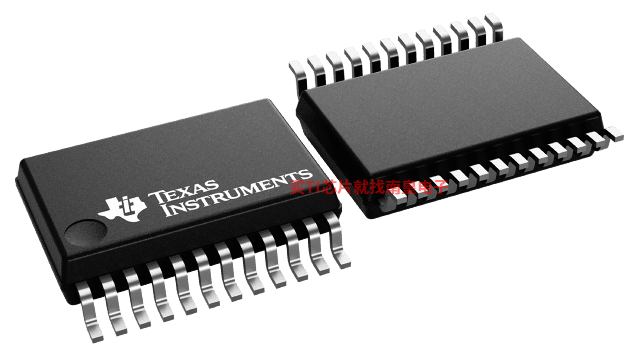

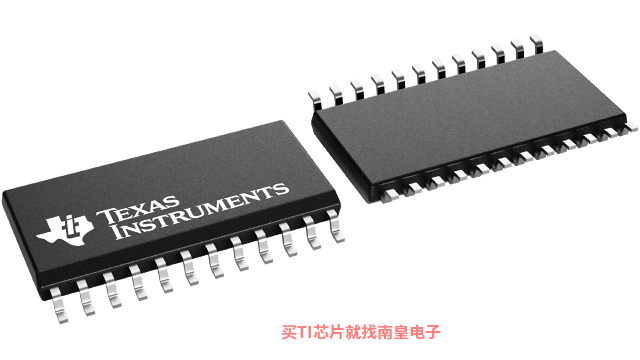

  • Package Options Include Plastic Small-Outline (DW) and Shrink Small-Outline (DB) Packages

EPIC-IIB is a trademark of Texas Instruments Incorporated.

CDC351的参数(英文):
  • Function
  • Single-ended
  • Output frequency (Max) (MHz)
  • 100
  • Number of outputs
  • 10
  • Output supply voltage (V)
  • 3.3
  • Core supply voltage (V)
  • 3.3
  • Output skew (ps)
  • 0.6
  • Features
  • Pin control
  • Operating temperature range (C)
  • -40 to 85, 0 to 70
  • Rating
  • Catalog
  • Output type
  • LVTTL
  • Input type
  • LVTTL
CDC351具体的完整产品型号参数及价格(美元):

CDC351的完整型号有:CDC351DB、CDC351DBR、CDC351DW、CDC351DWR、CDC351IDB、CDC351IDBR、CDC351IDW,以下是这些产品的关键参数及官网采购报价:

CDC351DB,工作温度:0 to 70,封装:SSOP (DB)-24,包装数量MPQ:60个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDC351DB的批量USD价格:6.688(1000+)

CDC351DBR,工作温度:0 to 70,封装:SSOP (DB)-24,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDC351DBR的批量USD价格:5.697(1000+)

CDC351DW,工作温度:0 to 70,封装:SOIC (DW)-24,包装数量MPQ:25个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDC351DW的批量USD价格:6.688(1000+)

CDC351DWR,工作温度:0 to 70,封装:SOIC (DW)-24,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDC351DWR的批量USD价格:5.697(1000+)

CDC351IDB,工作温度:-40 to 85,封装:SSOP (DB)-24,包装数量MPQ:60个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDC351IDB的批量USD价格:6.688(1000+)

CDC351IDBR,工作温度:-40 to 85,封装:SSOP (DB)-24,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDC351IDBR的批量USD价格:5.697(1000+)

CDC351IDW,工作温度:-40 to 85,封装:SOIC (DW)-24,包装数量MPQ:25个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDC351IDW的批量USD价格:5.697(1000+)

轻松满足您的TI芯片采购需求
CDC351的评估套件:

CDC351 IBIS Model

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用,包括业内超大的模型库之一,涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库,您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案,然后再进行布局和制造,可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中,您可以搜索 TI (...)
