- 制造厂商：TI
- 产品类别：逻辑和电压转换
- 技术类目：专用逻辑 IC - 数字多路复用器和编码器
- 功能描述：四路 2 输入多路复用器
- 点击这里打开及下载CY54FCT157T的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
The \x92FCT157T devices are quad two-input multiplexers that select four bits of data from two sources under the control of a common data-select (S) input. The output-enable (E\) input is active low. When E\ is high, all of the outputs (Y) are forced low, regardless of all other input conditions.
Moving data from two groups of registers to four common output buses is a common use of the \x92FCT157T devices. The state of S determines the particular register from which the data comes. It also can be used as a function generator. These devices are useful for implementing highly irregular logic by generating any 4 of the 16 different functions of 2 variables, with 1 variable common.
The \x92FCT157T devices are logic implementations of a four-pole, two-position switch, where the position of the switch is determined by the logic levels at S.
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Function, Pinout, and Drive Compatible With FCT and F Logic
- Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
- Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics
- Ioff Supports Partial-Power-Down Mode Operation
- Matched Rise and Fall Times
- Fully Compatible With TTL Input and Output Logic Levels
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
- CY54FCT157T
- 32-mA Output Sink Current
- 12-mA Output Source Current
- CY74FCT157T
- 64-mA Output Sink Current
- 32-mA Output Source Current
- 3-State Outputs
- Technology Family
- FCT
- Function
- Digital Multiplexer
- Configuration
- 2:1
- Number of channels (#)
- 4
- Operating temperature range (C)
- -55 to 125
- Rating
- Military
CY54FCT157T的完整型号有：5962-9220803M2A，以下是这些产品的关键参数及官网采购报价：

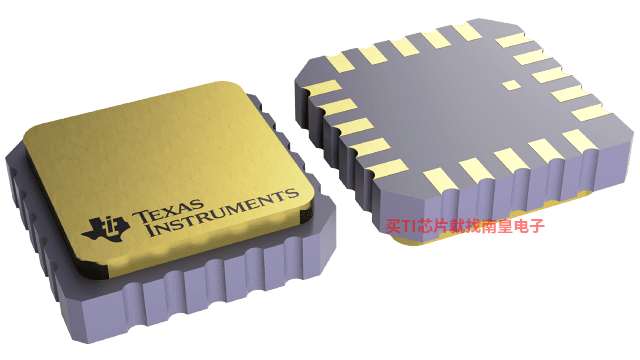

5962-9220803M2A，工作温度：-55 to 125，封装：LCCC (FK)-20，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网5962-9220803M2A的批量USD价格：49.74（1000+）
5962-9220803M2A，工作温度：-55 to 125，封装：LCCC (FK)-20，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网5962-9220803M2A的批量USD价格：49.74（1000+）
