The DAC900 is a high-speed, Digital-to-Analog Converter (DAC) offering a 10-bit resolution option within the SpeedPlus family of high-performance converters. Featuring pin compatibility among family members, the DAC908, DAC902, and DAC904 provide a component selection option to an 8-, 12-, and 14-bit resolution, respectively. All models within this family of DACs support update rates in excess of 165MSPS with excellent dynamic performance,and are especially suited to fulfill the demands of a variety of applications.

The advanced segmentation architecture of the DAC900 is optimized to provide a high Spurious-Free Dynamic Range (SFDR) for single-tone, as well as for multi-tone signals—essential when used for the transmit signal path of communication systems.

The DAC900 has a high impedance (200k) current output with a nominal range of 20mA and an output compliance of up to 1.25V. The differential outputs allow for both a differential or single-ended analog signal interface. The close matching of the current outputs ensures superior dynamic performance in the differential configuration, which can be implemented with a transformer.

Utilizing a small geometry CMOS process, the monolithic DAC900 can be operated on a wide, single-supply range of +2.7V to +5.5V. Its low power consumption allows for use in portable and battery-operated systems. Further optimization can be realized by lowering the output current with the adjustable full-scale option.

For noncontinuous operation of the DAC900, a power-down mode results in only 45mW of standby power.

The DAC900 comes with an integrated 1.24V bandgap reference and edge-triggered input latches, offering a complete converter solution. Both +3V and +5V CMOS logic families can be interfaced to the DAC900.

The reference structure of the DAC900 allows for additional flexibility by utilizing the on-chip reference, or applying an external reference. The full-scale output current can be adjusted over a span of 2mA to 20mA, with one external resistor, while maintaining the specified dynamic performance.

The DAC900 is available in SO-28 and TSSOP-28 packages.

• SINGLE +5V OR +3V OPERATION
• HIGH SFDR: 5MHz Output at 100MSPS: 68dBc
• LOW GLITCH: 3pV-s
• LOW POWER: 170mW at +5V
• INTERNAL REFERENCE: Optional Ext. Reference Adjustable Full-Scale Range Multiplying Option
• APPLICATIONS
  • COMMUNICATION TRANSMIT CHANNELS WLL, Cellular Base Station Digital Microwave Links Cable Modems
  • WAVEFORM GENERATION Direct Digital Synthesis (DDS) Arbitrary Waveform Generation (ARB)
  • MEDICAL/ULTRASOUND
  • HIGH-SPEED INSTRUMENTATION AND CONTROL
  • VIDEO, DIGITAL TV

• Resolution (Bits)
• 10
• Number of DAC channels (#)
• 1
• Interface type
• Parallel CMOS
• Sample/update rate (MSPS)
• 200
• Features
• Low Power
• Rating
• Catalog
• Interpolation
• 1x
• Power consumption (Typ) (mW)
• 170
• SFDR (dB)
• 76
• Architecture
• Current Source
• Operating temperature range (C)
• -40 to 85
• Reference type
• Ext, Int

DAC900的完整型号有：DAC900E、DAC900E/2K5、DAC900U、DAC900U/1K，以下是这些产品的关键参数及官网采购报价：

DAC900E，工作温度：-40 to 85，封装：TSSOP (PW)-28，包装数量MPQ：50个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网DAC900E的批量USD价格：5.699（1000+）

DAC900E/2K5，工作温度：-40 to 85，封装：TSSOP (PW)-28，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网DAC900E/2K5的批量USD价格：4.749（1000+）

DAC900U，工作温度：-40 to 85，封装：SOIC (DW)-28，包装数量MPQ：20个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网DAC900U的批量USD价格：5.699（1000+）

DAC900U/1K，工作温度：-40 to 85，封装：SOIC (DW)-28，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网DAC900U/1K的批量USD价格：4.749（1000+）

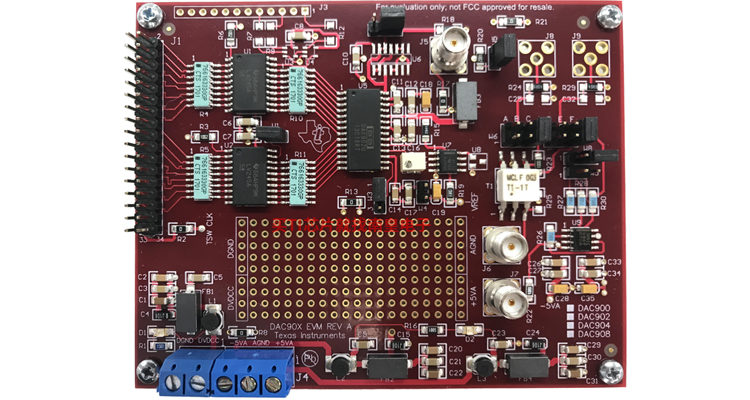

DAC900EVM — DAC900 10 位、165MSPS 数模转换器 (DAC) 评估模块

DAC900 评估模块 (EVM) 适用于评估 10 位高速
CMOS 接口 DAC900。该 EVM 只需极少的简单外部组件，更大限度地降低了系统成本和功耗。

DAC900 IBIS Model for 3.3V

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用，包括业内超大的模型库之一，涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库，您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案，然后再进行布局和制造，可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中，您可以搜索 TI (...)

MATCHGAIN-CALC — Wideband Comp Current Output DAC to SE Interface: Impr Matching for Gain & Compliance Volt Swing

NOTE: Calculator software is available when downloading the application note.

• Click on "abstract" to view abstract of document.
• Open the ZIP file to extract the calculator tool.
• Open the PDF file to view the application note.

---

High-speed digital-to-analog converters (DACs) most often use a (...)
