The DRV603PW is a 3-V_RMS pop-free stereo line driver designed to allow the removal of the output dc-blocking capacitors for reduced component count and cost. The device is ideal for single-supply electronics where size and cost are critical design parameters.

Designed using TI’s patented DirectPath™ technology, The DRV603 is capable of driving 3 V_rms into a 2.5-k load with 5-V supply voltage. The device has differential inputs and uses external gain-setting resistors to support a gain range of ±1 V/V to ±10 V/V, and line outputs that have ±8 kV IEC ESD protection. The DRV603 (occasionally referred to as the ‘603) has built-in shutdown control for pop-free on/off control. The DRV603 has an external and internal undervoltage detector that mutes the output.

Using the DRV603 in audio products can reduce component count considerably compared to traditional methods of generating a 3-V_rms output. The DRV603 does not require a power supply greater than 5 V to generate its 8.5-V_pp output, nor does it require a split-rail power supply. The DRV603 integrates its own charge pump to generate a negative supply rail that provides a clean, pop-free ground biased 3-V_rms output.

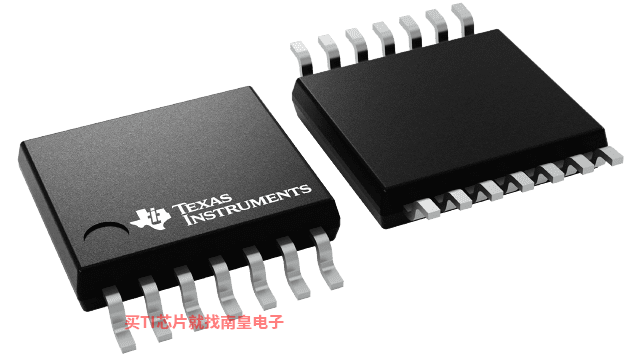

The DRV603 is available in a 14-pin TSSOP.

If the low noise and trimmed dc-offset and external undervoltage mute function are not beneficial in the application, TI recommends the footprint compatible DRV602.

• DirectPath
  • Eliminates Pop/Clicks
  • Eliminates Output DC-Blocking Capacitors
  • Provides Flat Frequency Response 20 Hz–20 kHz
• Low Noise and THD
  • SNR > 109 dB
  • Typical Vn < 7 μVms
  • THD+N < 0.002%
• Output Voltage Into 2.5-k Load
  • 2 Vrms With 3.3-V Supply Voltage
  • 3 Vrms With 5-V Supply Voltage
• Differential Input
• External Undervoltage Mute
• APPLICATIONS
  • PDP / LCD TV
  • Blu-ray Disc, DVD Players
  • Home Theater in a Box
  • Set-Top Boxes

• Gain (V/V)
• Adjustable
• Iq (Typ) (mA)
• 11
• Load capacitance (μF)
• 2.20E-04
• Number of channels (#)
• 2
• THD + N @ 1 kHz (%)
• 0.001
• Noise floor (RTO, 20 kHz BW) (dBu)
• 126.7
• Slew rate (Typ) (V/us)
• 4.5
• Small-Signal bandwidth (Typ) (MHz)
• 8
• Operating temperature range (C)
• -40 to 85

DRV603的完整型号有：DRV603PW、DRV603PWR，以下是这些产品的关键参数及官网采购报价：

DRV603PW，工作温度：-40 to 85，封装：TSSOP (PW)-14，包装数量MPQ：90个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网DRV603PW的批量USD价格：.468（1000+）

DRV603PWR，工作温度：-40 to 85，封装：TSSOP (PW)-14，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网DRV603PWR的批量USD价格：.39（1000+）

DRV603EVM — DRV603 评估模块 (EVM)

DRV603EVM 客户评估模块 (EVM) 演示了德州仪器 (TI) 的 DRV603 集成电路的功能和运行。

DRV603 是一款 2VRMS 无杂音立体声线路驱动器，旨在消除音频应用中输出直流阻隔电容器的使用，以便减少组件数并降低总成本。对于将尺寸和成本作为关键设计参数的单电源电子产品，该器件是理想之选。

DRV603 采用 TI 的 DirectPath™ 专利技术进行设计，能够使用 3.3V 电源电压为 2.5kW 负载驱动 2VRMS，使用 5V 电源电压时可以驱动超过 3VRMS。该器件采用差动输入并使用外部增益设置电阻器，支持 +/-1V/V 至 +/-10V/V (...)
