The DRV8834 provides a flexible motor driver solution for toys, printers, cameras, and other mechatronic applications. The device has two H-bridge drivers, and is intended to drive a bipolar stepper motor or two DC motors.

The output driver block of each H-bridge consists of N-channel power MOSFETs configured as an H-bridge to drive the motor windings. Each H-bridge includes circuitry to regulate or limit the winding current.

With proper PCB design, each H-bridge of the DRV8834 can driving up to 1.5-A RMS (or DC) continuously, at 25°C with a V_M supply of 5 V. The device can support peak currents of up to 2.2 A per bridge. Current capability is reduced slightly at lower V_M voltages.

Internal shutdown functions with a fault output pin are provided for overcurrent protection, short-circuit protection, undervoltage lockout and overtemperature. A low-power sleep mode is also provided.

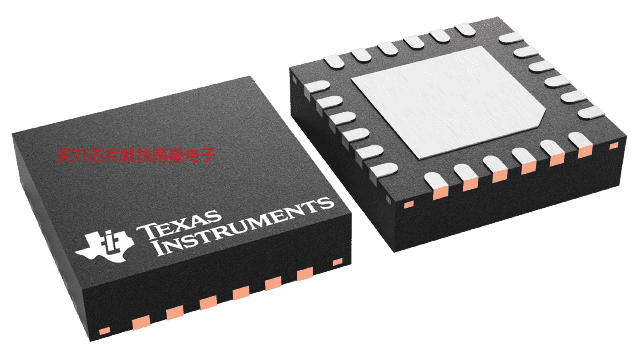

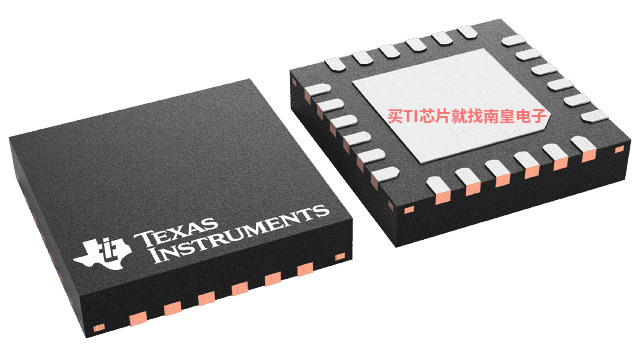

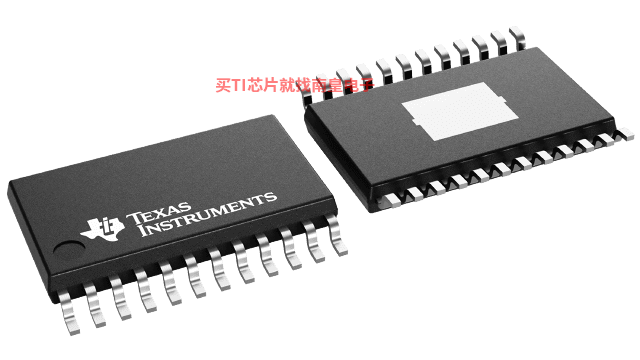

The DRV8834 is packaged in a 24-pin HTSSOP or VQFN package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).

• Dual-H-Bridge Current-Control Motor Driver
  • Capable of Driving Two DC Motors or One Stepper Motor
• Two Control Modes:
  • Built-In Indexer Logic With Simple STEP/DIRECTION Control and Up to 1/32-Step Microstepping
  • PHASE/ENABLE Control, With the Ability to Drive External References for > 1/32-Step Microstepping
• Output Current 1.5-A Continuous, 2.2-A Peak per H-Bridge (at VM = 5 V, 25°C)
• Low RDS(ON): 305-mΩ HS + LS (at VM = 5 V, 25°C)
• Wide Power Supply Voltage Range: 2.5 V to 10.8 V
• Dynamic tBLANK and Mixed Decay Modes for Smooth Microstepping
• PWM Winding Current Regulation and Limiting
• Thermally Enhanced Surface-Mount Package

• Number of full bridges
• 2
• Vs (Min) (V)
• 2.5
• Vs ABS (Max) (V)
• 11.8
• Full-scale current (A)
• 1.5
• Peak output current (A)
• 2
• RDS(ON) (HS + LS) (mOhms)
• 305
• Sleep current (uA)
• 0.6
• Control mode
• PH/EN, STEP/DIR
• Control interface
• Hardware (GPIO)
• Micro-stepping levels
• 32
• Features
• Current Regulation
• Rating
• Catalog
• Operating temperature range (C)
• -40 to 85

DRV8834的完整型号有：DRV8834PWP、DRV8834PWPR、DRV8834RGER、DRV8834RGET，以下是这些产品的关键参数及官网采购报价：

DRV8834PWP，工作温度：-40 to 85，封装：HTSSOP (PWP)-24，包装数量MPQ：60个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：NIPDAU，TI官网DRV8834PWP的批量USD价格：1.287（1000+）

DRV8834PWPR，工作温度：-40 to 85，封装：HTSSOP (PWP)-24，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：NIPDAU，TI官网DRV8834PWPR的批量USD价格：1.089（1000+）

DRV8834RGER，工作温度：-40 to 85，封装：VQFN (RGE)-24，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：NIPDAU，TI官网DRV8834RGER的批量USD价格：.99（1000+）

DRV8834RGET，工作温度：-40 to 85，封装：VQFN (RGE)-24，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：NIPDAU，TI官网DRV8834RGET的批量USD价格：1.188（1000+）

DRV8834EVM — DRV8834 评估模块

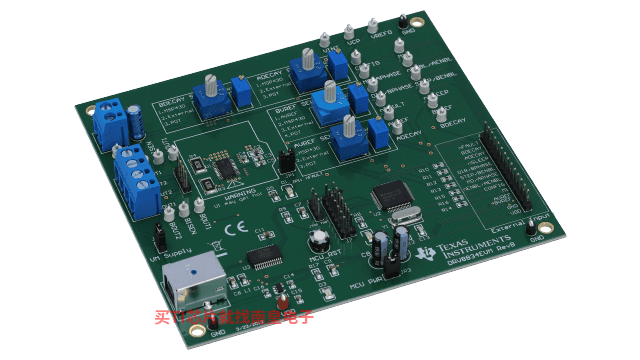

DRV8834 评估模块 (EVM) 展示了来自德州仪器 (TI) 的 DRV8834 电机驱动器的功能和性能。该 EVM 附带板载 MSP430 微控制器，该微控制器已使用一组有用的算法进行预编程，用于驱动一个步进电机或两个刷式直流电机。使用图形用户界面，可以通过用户的计算机经由 USB 端口控制 EVM。MSP430 的调节电压由 LP2985-33 单通道 LDO 提供。此 EVM 可在 2.5V 至 10.8V 的电源电压下工作。
