The DS320PR 810 is a n eight channel low-power high-performance linear repeater or redriver designed to support PCIe 5.0, CXL 2.0, UPI 2.0, and other interfaces up to 32 Gbps.

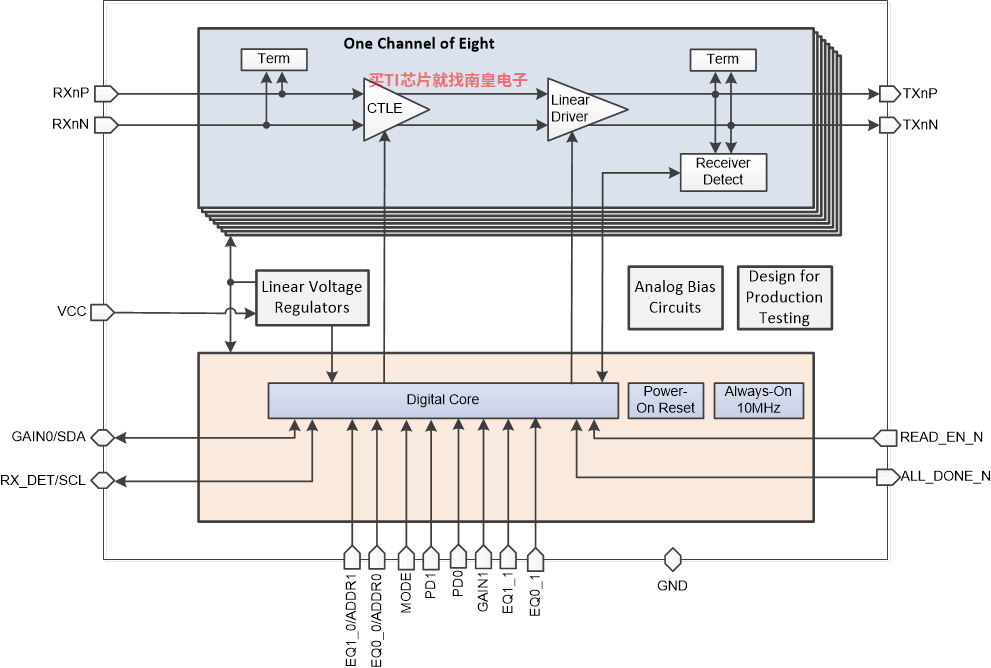

The DS320PR 810 receivers deploy continuous time linear equalizers (CTLE) to provide a programmable high-frequency boost. The equalizer can open an input eye that is completely closed due to inter-symbol interference (ISI) induced by an interconnect medium, such as PCB traces. The CTLE receiver is followed by a linear output driver. The linear data-paths of DS320PR 810 preserve transmit preset signal characteristics. The linear redriver becomes part of the passive channel that as a whole get link trained for best transmit and receive equalization settings. This transparency in the link training protocol results in best electrical link and lowest possible latency. Low channel-channel cross-talk, low additive jitter and excellent return loss makes the device almost a passive element in the link, but with its useful equalization. The data-path of the device uses an internally regulated power rail that provides high immunity to any supply noise on the board.

The device also has low AC and DC gain variation providing consistent equalization in high volume platform deployment.

• Eight-channel linear redriver supporting PCIe 5.0, CXL 2.0, UPI 2.0 up to 32 Gbps
• Supports most ac coupled interfaces including DP, SAS, SATA, XFI
• CTLE boosts up to 22 dB at 16 GHz
• Ultra-low latency of 100 ps
• Low additive random jitter of 75 fs for PRBS data
• Excellent return loss of -10 dB at 16 GHz
• Single 3.3 V supply
• Internal voltage regulator provides immunity to supply noise
• Low active power of 160 mW / channel
• No heat sink required
• Pin-strap, SMBus or EEPROM programming
• Automatic receiver detection for PCIe use cases
• Protocol agnostic linear redriver allows seamless support for PCIe link training
• Support for x4, x8, x16, x24 bus width with one or multiple DS320PR 810
• Temperature range of –40 °C to 85 °C
• 5.5 mm × 10 mm, 64 pin WQFN package

• Type
• Redriver
• Protocols
• CXL, PCIe1, PCIe2, PCIe3, PCIe4, PCIe5, UPI
• Number of channels (#)
• 8
• Speed (Max) (Gbps)
• 32
• Supply voltage (V)
• 3.3
• Rating
• Catalog
• Operating temperature range (C)
• -40 to 85

DS320PR810的完整型号有：DS320PR810NJXR、DS320PR810NJXT，以下是这些产品的关键参数及官网采购报价：

DS320PR810NJXR，工作温度：-40 to 85，封装：WQFN (NJX)-64，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网DS320PR810NJXR的批量USD价格：10（1000+）

DS320PR810NJXT，工作温度：-40 to 85，封装：WQFN (NJX)-64，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网DS320PR810NJXT的批量USD价格：12（1000+）

DS320PR810-SMP-EVM — DS320PR810 evaluation module for PCIe 5.0 eight-channel redriver with subminiature push on

The DS320PR810-SMP evaluation board provides a complete high-bandwidth platform for evaluating the signal conditioning features of the Texas Instruments DS320PR810 PCI-Express® linear redriver. It features one DS320PR810 device that can extend the transmission distance of a PCI-Express® (...)

DS320PR810RSCEVM — DS320PR810 evaluation module for PCIe 5.0, 32-Gbps, eight-channel linear redriver

DS320PR810RSC 评估板提供了完整的高带宽平台，可用于评估德州仪器 (TI) DS320PR810 PCI-Express® 线性转接驱动器的信号调节特性。它具有四个 DS320PR810 器件，可扩展 PCI-Express® 5.0 16x 总线的传输距离。该评估板可用于标准合规性测试、性能评估和初始系统原型设计。
