- 制造厂商：TI
- 产品类别：电源管理
- 技术类目：电源开关 - 低侧开关
- 功能描述：四路电话中继驱动器
- 点击这里打开及下载DS3680的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
The DS3680 telephone relay driver is a monolithic integrated circuit designed to interface -48-V relay systems to TTL or other systems in telephone applications. It is capable of sourcing up to 50 mA from standard -52-V battery power. To reduce the effects of noise and IR drop between logic ground and battery ground, these drivers are designed to operate with a common-mode input range of ±20 V referenced to battery ground. The common-mode input voltages for the four drivers can be different, so a wide range of input elements can be accommodated. The high-impedance inputs are compatible with positive TTL and CMOS levels or negative logic levels. A clamp network is included in the driver outputs to limit high-voltage transients generated by the relay coil during switching. The complementary inputs ensure that the driver output is off as a fail-safe condition when either output is open.
The DS3680 is characterized for operation from 0°C to 70°C.
- Designed for -52-V Battery Operation
- 50-mA Output Current Capability
- Input Compatible With TTL and CMOS
- High Common-Mode Input Voltage Range
- Very Low Input Current
- Fail-Safe Disconnect Feature
- Built-in Output Clamp Diode
- Direct Replacement for National DS3680 and Fairchild uA3680
- Drivers per package
- 4
- Switching voltage (Max) (V)
- 60
- Output voltage (Max) (V)
- 60
- Peak output current (mA)
- 100
- Delay time (Typ) (ns)
- 1000
- Input compatibility
- CMOS, TTL
- Vol @ lowest spec current (Typ) (mV)
- 900
- Iout/ch (Max) (mA)
- 100
- Iout_off (Typ) (uA)
- 100
- Rating
- Catalog
DS3680的完整型号有：DS3680D、DS3680N，以下是这些产品的关键参数及官网采购报价：

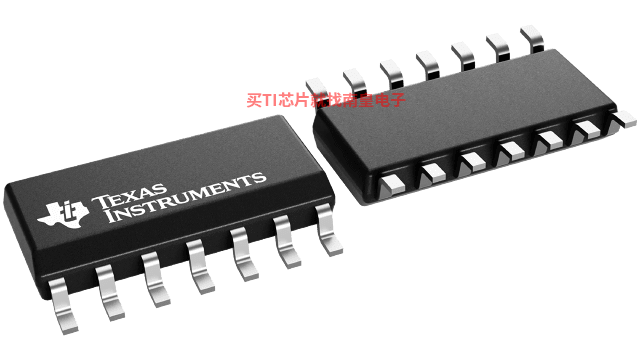

DS3680D，工作温度：0 to 70，封装：SOIC (D)-14，包装数量MPQ：50个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网DS3680D的批量USD价格：.348（1000+）

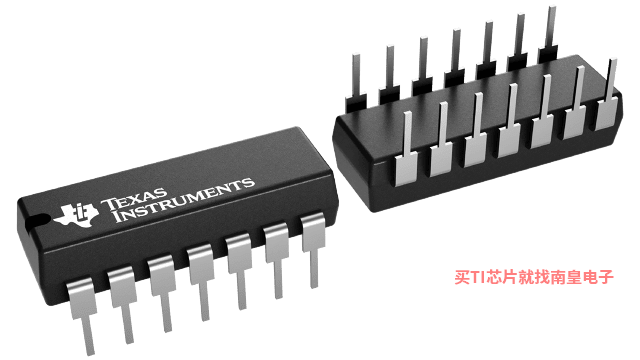

DS3680N，工作温度：0 to 70，封装：PDIP (N)-14，包装数量MPQ：25个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：NIPDAU，TI官网DS3680N的批量USD价格：.4（1000+）
