LM134的基本参数
  • 制造厂商:TI
  • 产品类别:电源管理
  • 技术类目:电压基准 - 电流基准
  • 功能描述:3 端子可调节电流源
  • 点击这里打开及下载LM134的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
快速报价,在行业拥有较高的知名度及影响力
LM134的产品详情:

The LM134/LM234/LM334 are 3-terminal adjustable current sources featuring 10,000:1 range in operating current, excellent current regulation and a wide dynamic voltage range of 1V to 40V. Current is established with one external resistor and no other parts are required. Initial current accuracy is ±3%. The LM134/LM234/LM334 are true floating current sources with no separate power supply connections. In addition, reverse applied voltages of up to 20V will draw only a few dozen microamperes of current, allowing the devices to act as both a rectifier and current source in AC applications.

The sense voltage used to establish operating current in the LM134 is 64mV at 25°C and is directly proportional to absolute temperature (°K). The simplest one external resistor connection, then, generates a current with ≈+0.33%/°C temperature dependence. Zero drift operation can be obtained by adding one extra resistor and a diode.

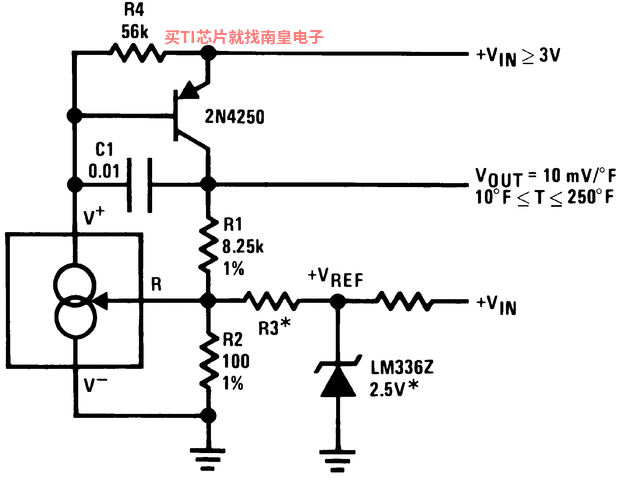

Applications for the current sources include bias networks, surge protection, low power reference, ramp generation, LED driver, and temperature sensing. The LM234-3 and LM234-6 are specified as true temperature sensors with ensured initial accuracy of ±3°C and ±6°C, respectively. These devices are ideal in remote sense applications because series resistance in long wire runs does not affect accuracy. In addition, only 2 wires are required.

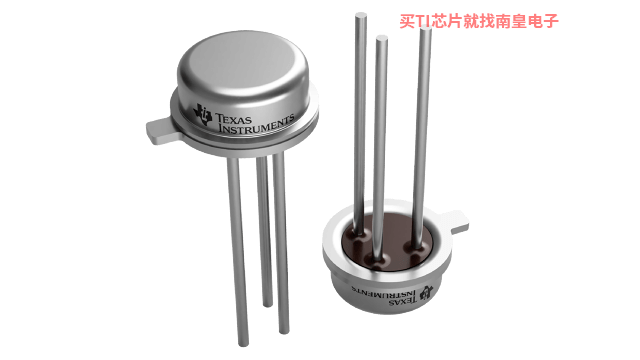

The LM134 is specified over a temperature range of −55°C to +125°C, the LM234 from −25°C to +100°C and the LM334 from 0°C to +70°C. These devices are available in TO hermetic, TO-92 and SOIC-8 plastic packages.

LM134的优势和特性:
  • Operates From 1V to 40V
  • 0.02%/V Current Regulation
  • Programmable From 1μA to 10mA
  • True 2-Terminal Operation
  • Available as Fully Specified Temperature Sensor
  • ±3% Initial Accuracy

All trademarks are the property of their respective owners.

LM134的参数(英文):
  • Iout/Iz (Max) (mA)
  • 0.01
  • Vin (Min) (V)
  • 0.8
  • Vin (Max) (V)
  • 40
  • Initial accuracy (Max) (%)
  • 3
LM134具体的完整产品型号参数及价格(美元):

LM134的完整型号有:LM134 MDC、LM134H、LM134H/NOPB,以下是这些产品的关键参数及官网采购报价:

LM134 MDC,工作温度:-40 to 85,封装: (Y)-0,包装数量MPQ:400个,MSL 等级/回流焊峰值温度:Level-1-NA-UNLIM,引脚镀层/焊球材料:Call TI,TI官网LM134 MDC的批量USD价格:3.964(1000+)

LM134H,工作温度:-55 to 125,封装:TO (NDV)-3,包装数量MPQ:1000个,MSL 等级/回流焊峰值温度:Call TI,引脚镀层/焊球材料:Call TI,TI官网LM134H的批量USD价格:13.091(1000+)

LM134H/NOPB,工作温度:-55 to 125,封装:TO (NDV)-3,包装数量MPQ:1000个,MSL 等级/回流焊峰值温度:Level-1-NA-UNLIM,引脚镀层/焊球材料:Call TI,TI官网LM134H/NOPB的批量USD价格:11.166(1000+)

轻松满足您的TI芯片采购需求
LM134的评估套件:

PSPICE-FOR-TI — 适用于 TI 设计和模拟工具的 PSpice

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用,包括业内超大的模型库之一,涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库,您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案,然后再进行布局和制造,可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中,您可以搜索 TI (...)

SHUNT_VOLTAGE_REFERENCE_RESISTOR_CALCULATOR — 分流参考电压外部电阻快速入门计算器

这一外部电阻快速入门计算器工具让用户可以根据电压基准、电源和负载电流限值轻松计算有效的外部电阻值。使用这些输入,用户可以马上查看计算结果并通过以颜色标记的指示了解计算出的输出是否有效。
