The LM20154 is a full featured 1 MHz synchronous buck regulator capable of delivering up to 4A of continuous output current. The current mode control loop can be compensated to be stable with virtually any type of output capacitor. For most cases, compensating the device only requires two external components, providing maximum flexibility and ease of use. The device is optimized to work over the input voltage range of 2.95V to 5.5V making it suited for a wide variety of low voltage systems.

The device features internal over voltage protection (OVP) and over current protection (OCP) circuits for increased system reliability. A precision enable pin and integrated UVLO allows the turn on of the device to be tightly controlled and sequenced. Start-up inrush currents are limited by both an internally fixed and externally adjustable Soft-Start circuit. Fault detection and supply sequencing is possible with the integrated power good circuit.

The LM20154 features an open drain SYNCOUT pin which provides an external clock that matches the switching frequency of the device but is shifted by 180 degrees.

The LM20154 is designed to work well in multi-rail power supply architectures. The output voltage of the device can be configured to track a higher voltage rail using the SS/TRK pin. If the output of the LM20154 is pre-biased at startup it will not sink current to pull the output low until the internal soft-start ramp exceeds the voltage at the feedback pin.

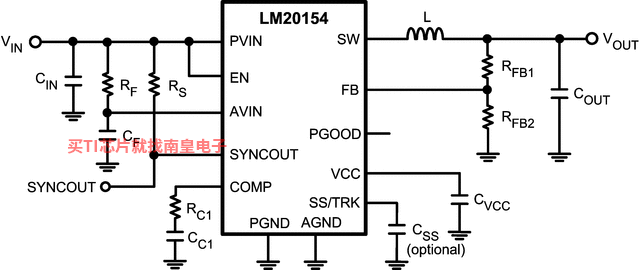

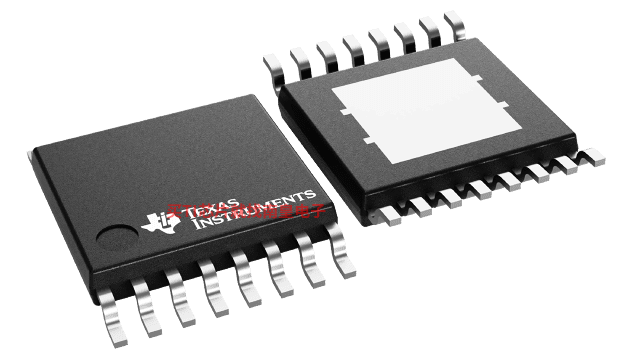

The LM20154 is offered in an exposed pad 16-pin HTSSOP package that can be soldered to the PCB, eliminating the need for bulky heatsinks.

• LM20154-Q1 is AEC-Q100 Qualified and Manufactured on an Automotive Grade Flow
• Input Voltage Range 2.95V to 5.5V
• Accurate Current Limit Minimizes Inductor Size

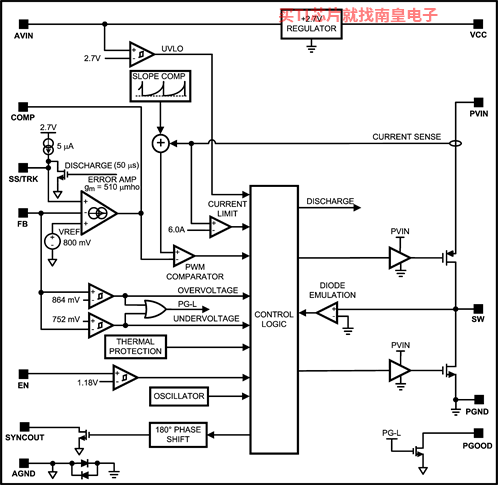

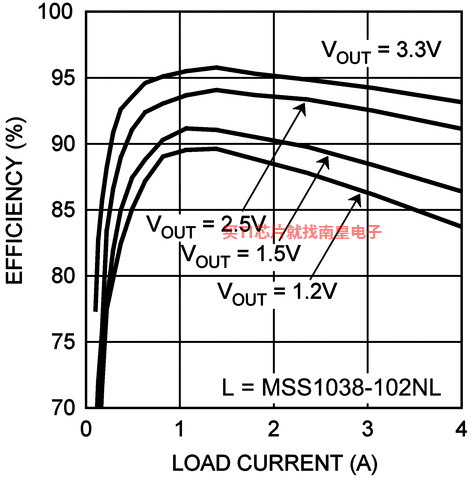

• 96% Peak Efficiency at 1.0 MHz Switching Frequency
• Frequency Synchronization Output
• 32 m? Integrated FET Switches
• Starts up into Pre-Biased Loads
• Output Voltage Tracking
• Peak Current Mode Control
• Adjustable Output Voltage Down to 0.8V
• Adjustable Soft-Start with External Capacitor
• Precision Enable Pin with Hysteresis
• Integrated OVP, UVLO, Power Good and Thermal Shutdown
• HTSSOP Exposed Pad Package

All trademarks are the property of their respective owners.

• Vin (Min) (V)
• 2.95
• Vin (Max) (V)
• 5.5
• Vout (Min) (V)
• 0.8
• Vout (Max) (V)
• 5
• Iout (Max) (A)
• 4
• Iq (Typ) (uA)
• 3500
• Switching frequency (Min) (kHz)
• 1000
• Switching frequency (Max) (kHz)
• 1000
• Features
• Enable, Phase Interleaving, Power Good, Synchronous Rectification, Tracking
• Rating
• Catalog
• Regulated outputs (#)
• 1
• Control mode
• Current Mode
• Duty cycle (Max) (%)
• 85

LM20154的完整型号有：LM20154MH/NOPB、LM20154MHE/NOPB、LM20154MHX/NOPB，以下是这些产品的关键参数及官网采购报价：

LM20154MH/NOPB，工作温度：-40 to 125，封装：HTSSOP (PWP)-16，包装数量MPQ：92个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM20154MH/NOPB的批量USD价格：1.742（1000+）

LM20154MHE/NOPB，工作温度：-40 to 125，封装：HTSSOP (PWP)-16，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM20154MHE/NOPB的批量USD价格：1.742（1000+）

LM20154MHX/NOPB，工作温度：-40 to 125，封装：HTSSOP (PWP)-16，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM20154MHX/NOPB的批量USD价格：1.452（1000+）
