The LM2736 regulator is a monolithic, high frequency, PWM step-down DC/DC converter in a 6-pin Thin SOT package. It provides all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area.

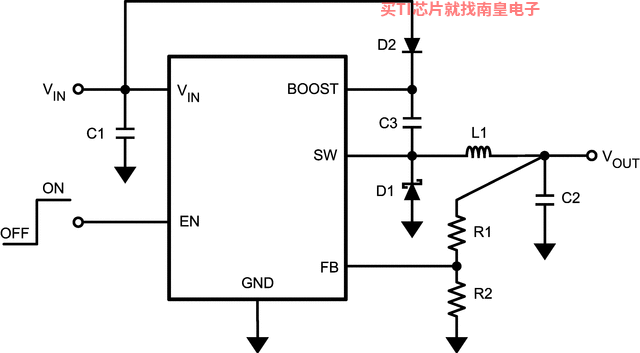

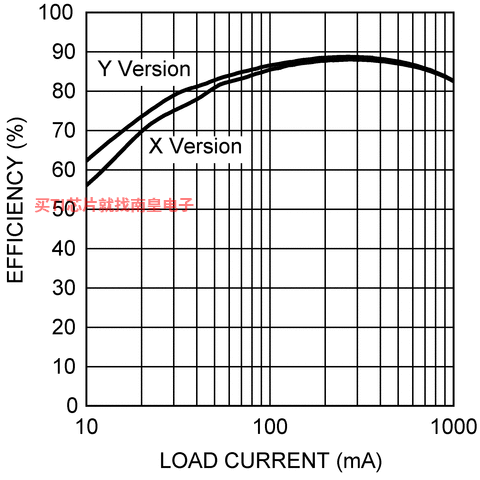

With a minimum of external components and online design support through WEBENCH, the LM2736 is easy to use. The ability to drive 750 mA loads with an internal 350 m? NMOS switch using state-of-the-art 0.5 µm BiCMOS technology results in the best power density available. The world class control circuitry allows for on-times as low as 13 ns, thus supporting exceptionally high frequency conversion over the entire 3 V to 18 V input operating range down to the minimum output voltage of 1.25 V. Switching frequency is internally set to 550 kHz (LM2736Y) or 1.6 MHz (LM2736X), allowing the use of extremely small surface mount inductors and chip capacitors. Even though the operating frequencies are very high, efficiencies up to 90% are easy to achieve. External shutdown is included, featuring an ultra-low stand-by current of 30 nA. The LM2736 utilizes current-mode control and internal compensation to provide high-performance regulation over a wide range of operating conditions. Additional features include internal soft-start circuitry to reduce inrush current, pulse-by-pulse current limit, thermal shutdown, and output over-voltage protection.

For all available packages, see the orderable addendum at the end of the datasheet.

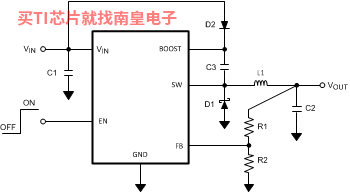

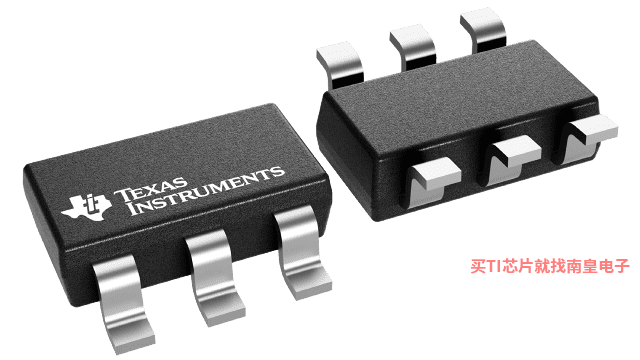

• Thin SOT-6 Package
• 3.0 V to 18 V Input Voltage Range
• 1.25 V to 16 V Output Voltage Range
• 750 mA Output Current
• 550 kHz (LM2736Y) and 1.6 MHz (LM2736X) Switching Frequencies
• 350 m? NMOS Switch
• 30 nA Shutdown Current
• 1.25 V, 2% Internal Voltage Reference
• Internal Soft-Start
• Current-Mode, PWM Operation
• WEBENCH Online Design Tool
• Thermal Shutdown

• Vin (Min) (V)
• 3
• Vin (Max) (V)
• 18
• Vout (Min) (V)
• 1.25
• Vout (Max) (V)
• 16
• Iout (Max) (A)
• 0.75
• Iq (Typ) (uA)
• 1500
• Switching frequency (Min) (kHz)
• 400
• Switching frequency (Max) (kHz)
• 1900
• Features
• Enable, Light Load Efficiency, Pre-Bias Start-Up
• Rating
• Catalog
• Regulated outputs (#)
• 1
• Control mode
• Current Mode
• Duty cycle (Max) (%)
• 96

LM2736的完整型号有：LM2736XMK/NOPB、LM2736XMKX/NOPB、LM2736YMK/NOPB、LM2736YMKX/NOPB、LM2736XMK、LM2736YMK，以下是这些产品的关键参数及官网采购报价：

LM2736XMK/NOPB，工作温度：-40 to 125，封装：SOT-23-THIN (DDC)-6，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM2736XMK/NOPB的批量USD价格：.814（1000+）

LM2736XMKX/NOPB，工作温度：-40 to 125，封装：SOT-23-THIN (DDC)-6，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM2736XMKX/NOPB的批量USD价格：.678（1000+）

LM2736YMK/NOPB，工作温度：-40 to 125，封装：SOT-23-THIN (DDC)-6，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM2736YMK/NOPB的批量USD价格：.814（1000+）

LM2736YMKX/NOPB，工作温度：-40 to 125，封装：SOT-23-THIN (DDC)-6，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM2736YMKX/NOPB的批量USD价格：.678（1000+）

LM2736XMK，工作温度：-40 to 125，封装：SOT-23-THIN (DDC)-6，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SNPB，TI官网LM2736XMK的批量USD价格：1.458（1000+）

LM2736YMK，工作温度：-40 to 125，封装：SOT-23-THIN (DDC)-6，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SNPB，TI官网LM2736YMK的批量USD价格：1.356（1000+）

PSPICE-FOR-TI — 适用于 TI 设计和模拟工具的 PSpice

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用，包括业内超大的模型库之一，涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库，您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案，然后再进行布局和制造，可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中，您可以搜索 TI (...)
