The LM2796 is a charge-pump based white-LED driver that is ideal for mobile phone display backlighting. It can drive up to 7 LEDs in parallel with up to 20mA through each LED. Regulated internal current sources deliver excellent current and brightness matching in all LEDs. The LED-driver current sources are split into two independently controlled groups. The primary group (4 LEDs) can be used to backlight the main phone display. The second group (3 LEDs) can be used to backlight a secondary display or to provide other lighting features (keypad LEDs, for example). Brightness of the two groups can be adjusted independently with pulse-width modulated (PWM) digital signals.

The LM2796 works off an extended Li-Ion input voltage range (2.7V to 5.5V). Voltage boost is achieved with a high-efficiency 3/2×-gain charge pump.

The LM2796 is available in TI’s chip-scale 18-bump DSBGA package.

• Drives up to 7 LEDs with up to 20mA Each
• LEDs Controlled in 2 Distinct Groups, for Backlighting 2 Displays (Main LCD and Sub-LCD)

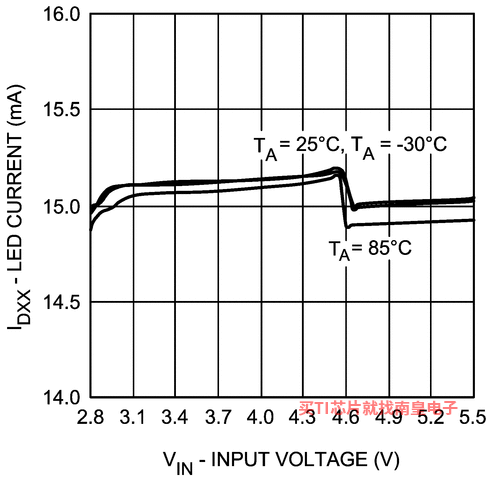

• Excellent Current and Brightness Matching
• High-Efficiency 3/2x Charge Pump
• Extended Li-Ion Input: 2.7V to 5.5V
• PWM Brightness Control: 100Hz - 1kHz
• 18-bump Thin DSBGA Package: (2.1mm x 2.4mm x 0.6mm)

All trademarks are the property of their respective owners.

• Number of channels (#)
• 7
• Vin (Min) (V)
• 2.7
• Vin (Max) (V)
• 5.5
• Vout (Min) (V)
• 2.7
• Vout (Max) (V)
• 5.5
• Type
• Capacitive
• Switching frequency (Max) (kHz)
• 675
• LED current per channel (mA)
• 20
• Peak efficiency (%)
• 80
• Topology
• Boost
• Features
• Direct PWM Dimming
• Operating temperature range (C)
• -30 to 85

LM2796的完整型号有：LM2796TL/NOPB、LM2796TLX/NOPB，以下是这些产品的关键参数及官网采购报价：

LM2796TL/NOPB，工作温度：-30 to 85，封装：DSBGA (YZR)-18，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SNAGCU，TI官网LM2796TL/NOPB的批量USD价格：.78（1000+）

LM2796TLX/NOPB，工作温度：-30 to 85，封装：DSBGA (YZR)-18，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SNAGCU，TI官网LM2796TLX/NOPB的批量USD价格：.655（1000+）

LM2796TLEV — 具有 3 2x 开关电容器升压的双显示白光 LED 驱动器

The LM2796 is a charge-pump based white-LED driver that is ideal for mobile phone display backlighting.
