- 制造厂商：TI
- 产品类别：电源管理
- 技术类目：线性和低压降 (LDO) 稳压器
- 功能描述：100mA、35V 线性稳压器
- 点击这里打开及下载LM340L的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格

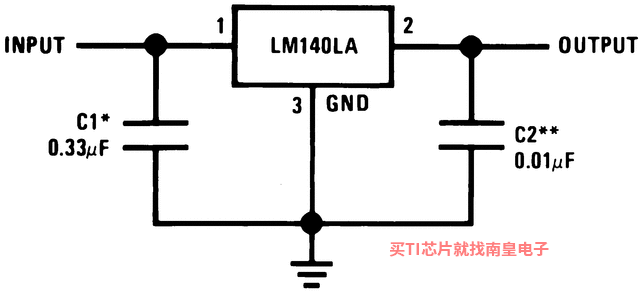

The LM140L series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications. The LM140LA is an improved version of the LM78LXX series with a tighter output voltage tolerance (specified over the full military temperature range), higher ripple rejection, better regulation and lower quiescent current. The LM140LA regulators have ±2% VOUT specification, 0.04%/V line regulation, and 0.01%/mA load regulation. When used as a zener diode/resistor combination replacement, the LM140LA usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the LM140LA to be used in logic systems, instrumentation, Hi-Fi, and other solid state electronic equipment. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

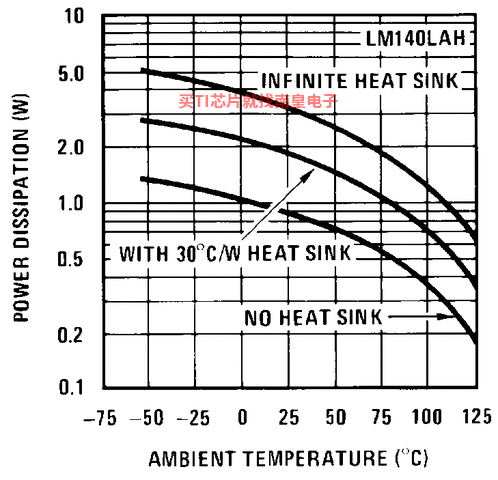

The LM140LA/LM340LA are available in the low profile metal three lead TO (NDT) and the LM340LA are also available in the plastic TO-92 (LP). With adequate heat sinking the regulator can deliver 100 mA output current. Current limiting is included to limit the peak output current to a safe value. Safe area protection for the output transistor is provided to limit internal power dissipation. If internal power dissipation becomes too high for the heat sinking provided, the thermal shut-down circuit takes over, preventing the IC from overheating.
For applications requiring other voltages, see LM117L Data Sheet.
- Line Regulation of 0.04%/V
- Load Regulation of 0.01%/mA
- Output Voltage Tolerances of
- ±2% at Tj = 25°C and ±4% Over the Temperature Range (LM140LA)
- ±3% Over the Temperature Range (LM340LA)
- Output Current of 100 mA
- Internal Thermal Overload Protection
- Output Transistor Safe Area Protection
- Internal Short Circuit Current Limit
- Available in
- Metal TO Low Profile Package (LM140LA/LM340LA)

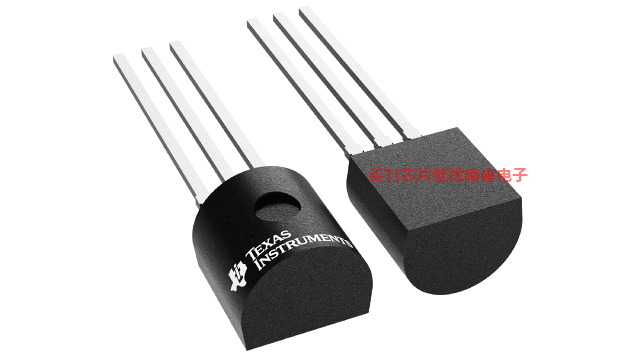

- Plastic TO-92 (LM340LA)
All trademarks are the property of their respective owners.
- Output options
- Fixed Output
- Iout (Max) (A)
- 0.1
- Vin (Max) (V)
- 35
- Vin (Min) (V)
- 7
- Vout (Max) (V)
- 15
- Vout (Min) (V)
- 5
- Fixed output options (V)
- 5, 12, 15
- Noise (uVrms)
- 40
- Iq (Typ) (mA)
- 3
- Thermal resistance θJA (°C/W)
- 232
- Rating
- Catalog
- Load capacitance (Min) (μF)
- 0
- Regulated outputs (#)
- 1
- Features
- —
- Accuracy (%)
- 2.5
- PSRR @ 100 KHz (dB)
- 43
- Dropout voltage (Vdo) (Typ) (mV)
- 2000
- Operating temperature range (C)
- 0 to 70
LM340L的完整型号有：LM340LAZ-5.0/LFT4、LM340LAZ-5.0/NOPB，以下是这些产品的关键参数及官网采购报价：
LM340LAZ-5.0/LFT4，工作温度：PropertyValue，封装：TO-92 (LP)-3，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：Call TI，TI官网LM340LAZ-5.0/LFT4的批量USD价格：.29（1000+）
LM340LAZ-5.0/NOPB，工作温度：0 to 70，封装：TO-92 (LP)-3，包装数量MPQ：1800个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：Call TI，TI官网LM340LAZ-5.0/NOPB的批量USD价格：.337（1000+）
LM340LAZ-5.0/LFT4，工作温度：PropertyValue，封装：TO-92 (LP)-3，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：Call TI，TI官网LM340LAZ-5.0/LFT4的批量USD价格：.29（1000+）
LM340LAZ-5.0/NOPB，工作温度：0 to 70，封装：TO-92 (LP)-3，包装数量MPQ：1800个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：Call TI，TI官网LM340LAZ-5.0/NOPB的批量USD价格：.337（1000+）
