LM3526_TI 2 通道、0.5A 负载、2.7-5.5V、100mΩ USB 电源开关

LM3526的基本参数

制造厂商：TI
产品类别：电源管理
技术类目：USB 电源开关和充电端口控制器
功能描述：2 通道、0.5A 负载、2.7-5.5V、100mΩ USB 电源开关
点击这里打开及下载LM3526的技术文档资料
TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格

LM3526的产品详情：

The LM3526 provides Universal Serial Bus standard power switch and over-current protection for all host port applications. The dual port device is ideal for Notebook and desktop PC's that supply power to more than one port.

A 1 ms delay on the fault flag output prevents erroneous overcurrent reporting caused by in-rush currents during hot-plug events.

The dual stage thermal protection circuit in the LM3526 provides individual protection to each switch and the entire device. In a short-circuit/over-current event, the switch dissipating excessive heat is turned off, allowing the second switch to continue to function uninterrupted.

The LM3526 accepts an input voltage between 2.7V and 5.5V allowing use as a device-based in-rush current limiter for 3.3V USB peripherals, as well as Root and Self-Powered Hubs at 5.5V. The Enable inputs accept both 3.3V and 5.0V logic thresholds.

The small size, low R_ON, and 1 ms fault flag delay make the LM3526 a good choice for root hubs as well as per-port power control in embedded and stand-alone hubs.

LM3526的优势和特性：

Compatible with USB1.1 and USB 2.0
1 ms Fault Flag Delay Filters Hot-Plug Events
Smooth Turn-on Eliminates In-rush Induced Voltage Drop
UL Recognized Component: REF# 205202
1A Nominal Short Circuit Output Current Protects PC Power Supplies
Thermal Shutdown Protects Device in Direct Short Condition
500mA Minimum Continuous Load Current

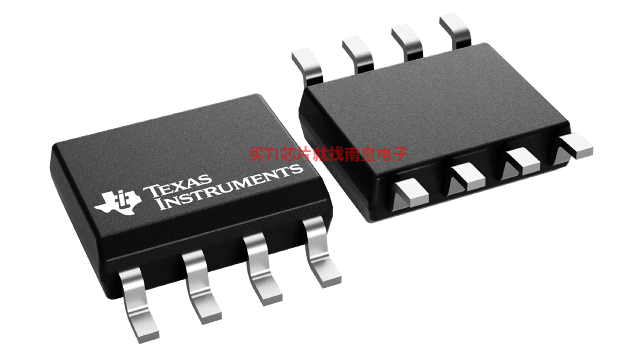

Small SOIC-8 package minimizes board space
2.7V to 5.5V Input Voltage Range

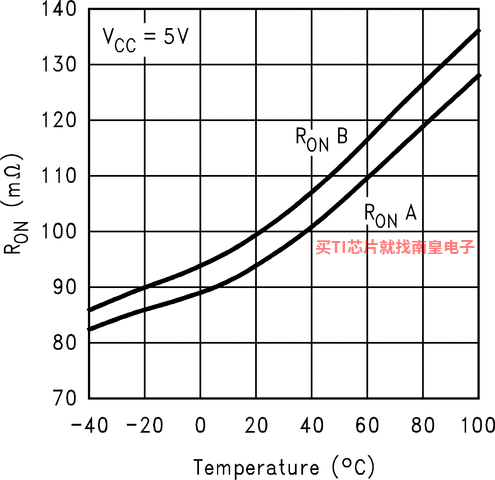

140 m? Max. Switch Resistance
1 μA Max. Standby Current
200 μA Max. Operating Current
Under-voltage Lockout (UVLO)

All trademarks are the property of their respective owners.

LM3526的参数（英文）：

Vin (Min) (V)
2.7
Vin (Max) (V)
5.5
Continuous current (Max) (A)
0.5
Current limit (A)
1.2
Product type
Fixed current limit, Power switch
Operating temperature range (C)
-40 to 125
Enable
Active High, Active Low
Number of switches
2
Rating
Catalog

LM3526具体的完整产品型号参数及价格（美元）：

LM3526的完整型号有：LM3526M-H、LM3526M-H/NOPB、LM3526M-L、LM3526M-L/NOPB、LM3526MX-H/NOPB、LM3526MX-L、LM3526MX-L/NOPB，以下是这些产品的关键参数及官网采购报价：

LM3526M-H，工作温度：-40 to 125，封装：SOIC (D)-8，包装数量MPQ：95个，MSL 等级/回流焊峰值温度：Level-1-235C-UNLIM，引脚镀层/焊球材料：SNPB，TI官网LM3526M-H的批量USD价格：.696（1000+）

LM3526M-H/NOPB，工作温度：-40 to 125，封装：SOIC (D)-8，包装数量MPQ：95个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM3526M-H/NOPB的批量USD价格：.539（1000+）

LM3526M-L，工作温度：-40 to 125，封装：SOIC (D)-8，包装数量MPQ：95个，MSL 等级/回流焊峰值温度：Level-1-235C-UNLIM，引脚镀层/焊球材料：SNPB，TI官网LM3526M-L的批量USD价格：.696（1000+）

LM3526M-L/NOPB，工作温度：-40 to 125，封装：SOIC (D)-8，包装数量MPQ：95个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM3526M-L/NOPB的批量USD价格：.539（1000+）

LM3526MX-H/NOPB，工作温度：-40 to 125，封装：SOIC (D)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM3526MX-H/NOPB的批量USD价格：.449（1000+）

LM3526MX-L，工作温度：-40 to 125，封装：SOIC (D)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-235C-UNLIM，引脚镀层/焊球材料：SNPB，TI官网LM3526MX-L的批量USD价格：.606（1000+）

LM3526MX-L/NOPB，工作温度：-40 to 125，封装：SOIC (D)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM3526MX-L/NOPB的批量USD价格：.449（1000+）

LM3526的评估套件：

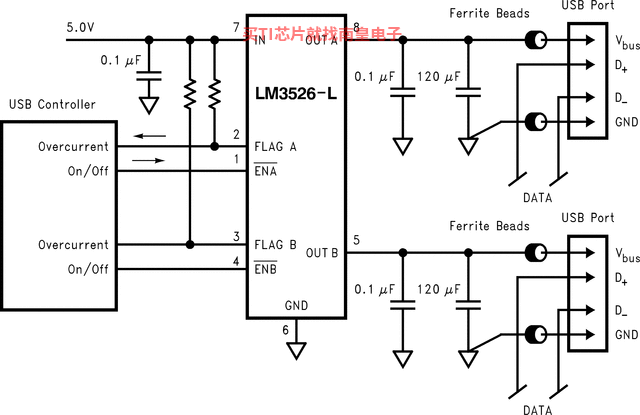

LM3526的电路图解：
