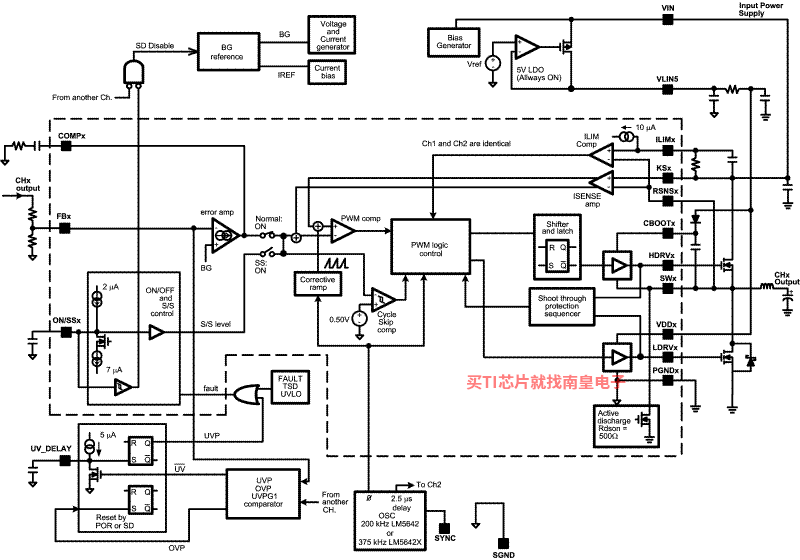

The LM5642 series consists of two current mode synchronous buck regulator controllers operating 180° out of phase with each other at a normal switching frequency of 200kHz for the LM5642 and at 375kHz for the LM5642X.

Out of phase operation reduces the input RMS ripple current, thereby significantly reducing the required input capacitance. The switching frequency can be synchronized to an external clock between 150 kHz and 250 kHz for the LM5642 and between 200 kHz and 500 kHz for the LM5642X. The two switching regulator outputs can also be paralleled to operate as a dual-phase, single output regulator.

The output of each channel can be independently adjusted from 1.3V to 90% of Vin. An internal 5V rail is also available externally for driving bootstrap circuitry.

Current-mode feedback control assures excellent line and load regulation and wide loop bandwidth for excellent response to fast load transients. Current is sensed across either the Vds of the top FET or across an external current-sense resistor connected in series with the drain of the top FET.

The LM5642 features analog soft-start circuitry that is independent of the output load and output capacitance making the soft-start behavior more predictable and controllable than traditional soft-start circuits.

Over-voltage protection is available for both outputs. A UV-Delay pin is also available to allow delayed shut off time for the IC during an output under-voltage event.

• Two Synchronous Buck Regulators
• 180° Out of Phase Operation
• 200 kHz Fixed Nominal Frequency: LM5642
• 375 kHz Fixed Nominal Frequency: LM5642X
• Synchronizable Switching Frequency from 150 kHz to 250 kHz for the LM5642 and 200 kHz to 500 kHz for the LM5642X
• 4.5V to 36V Input Range
• 50 μA Shutdown Current
• Adjustable Output from 1.3V to 90% of Vin
• 0.04% (Typical) Line and Load Regulation Accuracy
• Current Mode Control with or without a Sense Resistor
• Independent Enable/Soft-start Pins Allow Simple Sequential Startup Configuration.
• Configurable for Single Output Parallel Operation.
• Adjustable Cycle-by-cycle Current Limit
• Input Under-voltage Lockout
• Output Over-voltage Latch Protection
• Output Under-voltage Protection with Delay
• Thermal Shutdown
• Self Discharge of Output Capacitors when the Regulator is OFF
• TSSOP and HTSSOP (Exposed PAD) Packages

All trademarks are the property of their respective owners.

• Vin (Min) (V)
• 4.5
• Vin (Max) (V)
• 36
• Vout (Min) (V)
• 1.236
• Vout (Max) (V)
• 34
• Iout (Max) (A)
• 20
• Iq (Typ) (uA)
• 1100
• Switching frequency (Min) (kHz)
• 200
• Switching frequency (Max) (kHz)
• 500
• Features
• Enable, Frequency Synchronization
• Regulated outputs (#)
• 2
• Number of phases
• 2
• Rating
• Catalog

LM5642X的完整型号有：LM5642XMH/NOPB、LM5642XMHX/NOPB、LM5642XMT/NOPB、LM5642XMTX/NOPB，以下是这些产品的关键参数及官网采购报价：

LM5642XMH/NOPB，工作温度：-40 to 125，封装：HTSSOP (PWP)-28，包装数量MPQ：48个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM5642XMH/NOPB的批量USD价格：2.033（1000+）

LM5642XMHX/NOPB，工作温度：-40 to 125，封装：HTSSOP (PWP)-28，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网LM5642XMHX/NOPB的批量USD价格：1.694（1000+）

LM5642XMT/NOPB，工作温度：-40 to 125，封装：TSSOP (PW)-28，包装数量MPQ：48个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：SN，TI官网LM5642XMT/NOPB的批量USD价格：2.033（1000+）

LM5642XMTX/NOPB，工作温度：-40 to 125，封装：TSSOP (PW)-28，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：SN，TI官网LM5642XMTX/NOPB的批量USD价格：1.694（1000+）
