The LMH9126 is high-performance, single-channel, differential input to single-ended output transmit RF gain block amplifier supporting 2.6-GHz center frequency band. The device is well suited to support requirements for the next generation 5G AAS or small cell applications while driving the input of a power amplifier (PA). The RF amplifier provides 18-dB typical gain with good linearity performance of 35-dBm output IP3, while maintaining less than 4-dB noise figure across the whole 1-dB bandwidth. The device is internally matched for 100-Ω differential input impedance providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE) at the input. Also, the device is internally matched for 50-Ω single-ended output impedance required for easy interface with a post-amplifier, SAW filter, or PA.

Operating on a single 3.3-V supply, the device consumes only 375 mW of active power making it suitable for high-density 5G massive MIMO applications. Also, the device is available in a space saving 2-mm × 2-mm, 12-pin QFN package. The device is rated for an operating temperature of up to 105°C to provide a robust system design. There is a 1.8-V JEDEC compliant power down pin available for fast power down and power up of the device suitable for time division duplex (TDD) systems.

• Single-Channel, Differential Input to Single-Ended Output RF Gain Block Amplifier
• 18-dB Typical Gain Across the Band
• 3.5-dB Noise Figure
• 35-dBm OIP3
• 18-dBm Output P1dB
• 375-mW Power Consumption on 3.3-V Single Supply
• Up to 105°C TC Operating Temperature

• Current consumption (mA)
• 106
• Frequency (Min) (MHz)
• 2300
• Frequency (Max) (MHz)
• 2900
• Gain (Typ) (dB)
• 18
• Impedance match (Ohms)
• 50
• Noise figure (Typ) (dB)
• 3.2
• Number of channels (#)
• 1
• Operating temperature range (C)
• -40 to 105
• Output enable
• Yes
• Output IP3 (Typ) (dBm)
• 33
• P1dB (Typ) (dBm)
• 18
• Type
• Active Balun
• Rating
• Catalog
• Power down current
• 10 mA

LMH9126的完整型号有：LMH9126IRRLR，以下是这些产品的关键参数及官网采购报价：

LMH9126IRRLR，工作温度：-40 to 105，封装：WQFN (RRL)-12，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAUAG，TI官网LMH9126IRRLR的批量USD价格：1.19（1000+）

AFE79-LMH9-EVM — 带有源平衡-非平衡变压器 LMH9126、LMH9226、LMH9135 和 LMH9235 的 AFE7920 参考设计评估板

AFE79-LMH9-EVM 评估模块 (EVM) 是一款用于评估 AFE79xx 系列集成射频采样收发器性能的电路板，该收发器可与 LMH9xxx 系列有源平衡-非平衡变压器进行连接。AFE79-LMH9-EVM 展示了 AFE7920、LMH9126、LMH9226、LMH9135 和 LMH9235。该器件完全符合下一代 5G 大规模 MIMO 有源天线系统的要求，同时可与收发器输出端相连，并驱动功率放大器 (PA) 输入端。为了轻松连接 50? 测试设备，默认情况下，该电路板设置为 100? 差分输入和 50? 单端输出。此 EVM 可随时通过板载连接器与 +3.3V (...)

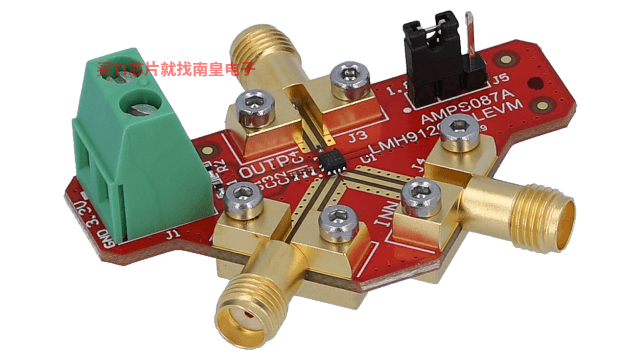

LMH9126-EVM — Single-Ended to Differential 2.3-GHz to 2.9-GHz RF Amplifier With Balun Tx Evaluation Module

LMH9126 评估模块 (EVM) 用于评估采用 2x2mm2 12 引脚 RRL 封装的 LMH9126 器件，即差分输入至单端输出 18dB 增益块放大器。该器件完全符合下一代 5G m-MIMO 有源天线系统的要求，同时可与收发器输出端相连，并驱动功率放大器 (PA) 输入端。此 EVM 旨在快速演示在 2.6GHz 传输应用中，当 1dB BW 为 600MHz 时 LMH9126 的功能和性能。为了轻松连接 50? 测试设备，默认情况下，该电路板设置为 100? 差分输入和 50? 单端输出。此 EVM 可随时通过板载连接器与 +3.3V 电源、信号源和测试仪表相连。
