LMX2502 and LMX2512 are highly integrated, high performance, low power frequency synthesizer systems optimized for Korean PCS and Korean Cellular CDMA (1xRTT, IS-95) mobile handsets. Using a proprietary digital phase locked loop technique, LMX2502 and LMX2512 generate very stable, low noise local oscillator signals for up and down conversion in wireless communications devices.

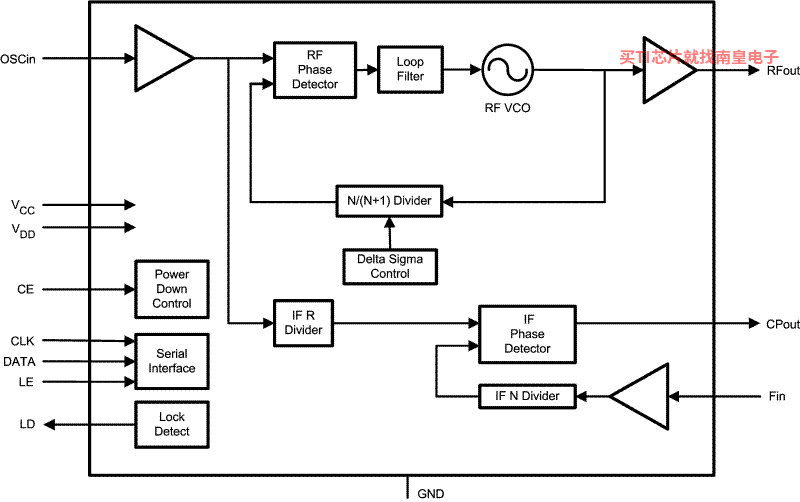

LMX2502 and LMX2512 include a voltage controlled oscillator (VCO), a loop filter, and a fractional-N RF PLL based on a delta sigma modulator. In concert these blocks form a closed loop RF synthesizer system. LMX2502 supports the Korean PCS band and LMX2512 supports the Korean Cellular band.

LMX2502 and LMX2512 include an Integer-N IF PLL also. For more flexible loop filter designs, the IF PLL includes a 4-level programmable charge pump. Together with an external VCO and loop filter, LMX2502 and LMX2512 make a complete closed loop IF synthesizer system.

Serial data is transferred to the device via a three-wire MICROWIRE interface (DATA, LE, CLK).

Operating supply voltage ranges from 2.7 V to 3.3 V. LMX2502 and LMX2512 feature low current consumption: 17 mA at 2.8 V.

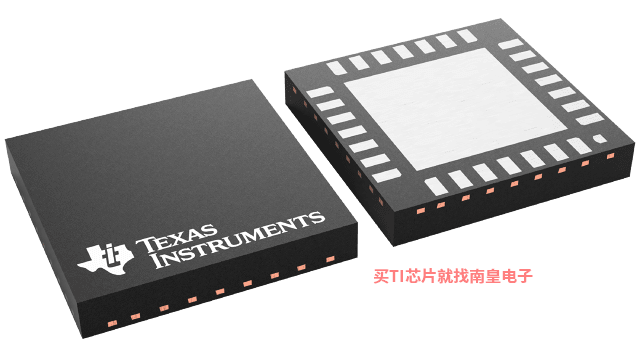

LMX2502 and LMX2512 are available in a 28-pin WQFN package.

• Small Size
  • 5.0 mm X 5.0 mm X 0.75 mm 28-Pin WQFN Package
• RF Synthesizer System
  • Integrated RF VCO
  • Integrated Loop Filter
  • Low Spurious, Low Phase Noise Fractional-N RF PLL Based on 11-Bit Delta Sigma Modulator
  • 10 kHz Frequency Resolution
• IF Synthesizer System
  • Integer-N IF PLL
  • Programmable Charge Pump Current Levels
  • Programmable Frequency
• Supports Various Reference Frequencies
  • 19.20/19.68 MHz
• Fast Lock Time: 500 μs
• Low Current Consumption
  • 17 mA at 2.8 V
• 2.7 V to 3.3 V Operation
• Digital Filtered Lock Detect Output
• Hardware and Software Power Down Control

All trademarks are the property of their respective owners.

• Integrated VCO
• Yes
• Output frequency (Min) (MHz)
• 1619.62
• Output frequency (Max) (MHz)
• 1649.62
• Normalized PLL phase noise (dBc/Hz)
• -138
• Current consumption (mA)
• 17

LMX2502的完整型号有：LMX2502LQ1635/NOPB，以下是这些产品的关键参数及官网采购报价：

LMX2502LQ1635/NOPB，工作温度：-30 to 85，封装：WQFN (NJB)-28，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：SN，TI官网LMX2502LQ1635/NOPB的批量USD价格：2.341（1000+）

CODELOADER — CodeLoader 器件寄存器编程

The CodeLoader 4 software is used to program the LMX PLLs and LMK timing devices through either the USB or line print terminal (LPT) port of a computer. This software also provides information on how to program the device by showing the bits that are actually sent.
