LMZ12001EXT的基本参数
  • 制造厂商:TI
  • 产品类别:电源管理
  • 技术类目:直流/直流开关稳压器 - 降压稳压器
  • 功能描述:具有 20V 最大输入电压的 1A SIMPLE SWITCHER 电源模块,用于军事和坚固耐用的应用
  • 点击这里打开及下载LMZ12001EXT的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
快速报价,在行业拥有较高的知名度及影响力
LMZ12001EXT的产品详情:

The LMZ12001EXT SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 1A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12001EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.

The LMZ12001EXT can accept an input voltage rail between 4.5V and 20V and deliver an adjustable and highly accurate output voltage as low as 0.8V. The LMZ12001EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ12001EXT is a reliable and robust design with the following protection features: thermal shutdown, input under-voltage lockout, output over-voltage protection, short-circuit protection, output current limit, and allows startup into a pre-biased output. A single resistor adjusts the switching frequency up to 1 MHz.



Electrical Specifications

  • 6W maximum total power output
  • Up to 1A output current
  • Input voltage range 4.5V to 20V
  • Output voltage range 0.8V to 6V

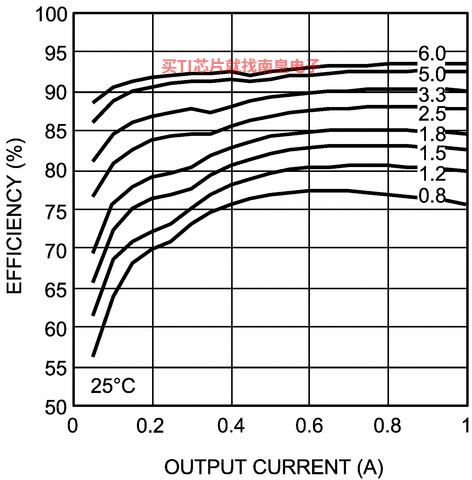

  • Efficiency up to 92%

  • Key Features

  • -55°C to 125°C junction temperature range
  • Integrated shielded inductor
  • Simple PCB layout
  • Flexible startup sequencing using external soft-start capacitor and precision enable
  • Protection against inrush currents and faults such as input UVLO and output short circuit
  • Single exposed pad and standard pinout for easy mounting and manufacturing
  • Fast transient response for FPGAs and ASICs
  • Low output voltage ripple
  • Pin-to-pin compatible family:

  • LMZ14203EXT/2EXT/1EXT (42V max 3A, 2A, 1A)

  • LMZ14203/2/1 (42V max 3A, 2A, 1A)

  • LMZ12003/2/1 (20V max 3A, 2A, 1A)
  • Fully Webench® Power Designer enabled

  • LMZ12001EXT的优势和特性:
    LMZ12001EXT的参数(英文):
    • Iout (Max) (A)
    • 1
    • Vin (Min) (V)
    • 4.5
    • Vin (Max) (V)
    • 20
    • Vout (Min) (V)
    • 0.8
    • Vout (Max) (V)
    • 6
    • Soft start
    • Adjustable
    • Features
    • EMI Tested, Enable, Tracking
    • Iq (Typ) (uA)
    • 1000
    • Regulated outputs (#)
    • 1
    • Switching frequency (Max) (kHz)
    • 1000
    • Switching frequency (Min) (kHz)
    • 200
    • Duty cycle (Max) (%)
    • 85
    • Topology
    • Buck, Synchronous Buck
    LMZ12001EXT具体的完整产品型号参数及价格(美元):

    LMZ12001EXT的完整型号有:LMZ12001EXTTZ/NOPB、LMZ12001EXTTZE/NOPB、LMZ12001EXTTZX/NOPB,以下是这些产品的关键参数及官网采购报价:

    LMZ12001EXTTZ/NOPB,工作温度:-55 to 125,封装:TO-PMOD (NDW)-7,包装数量MPQ:250个,MSL 等级/回流焊峰值温度:Level-3-245C-168 HR,引脚镀层/焊球材料:SN,TI官网LMZ12001EXTTZ/NOPB的批量USD价格:10.512(1000+)

    LMZ12001EXTTZE/NOPB,工作温度:-55 to 125,封装:TO-PMOD (NDW)-7,包装数量MPQ:45个,MSL 等级/回流焊峰值温度:Level-3-245C-168 HR,引脚镀层/焊球材料:SN,TI官网LMZ12001EXTTZE/NOPB的批量USD价格:10.512(1000+)

    LMZ12001EXTTZX/NOPB,工作温度:-55 to 125,封装:TO-PMOD (NDW)-7,包装数量MPQ:500个,MSL 等级/回流焊峰值温度:Level-3-245C-168 HR,引脚镀层/焊球材料:SN,TI官网LMZ12001EXTTZX/NOPB的批量USD价格:8.76(1000+)

    轻松满足您的TI芯片采购需求
    LMZ12001EXT的评估套件:

    LMZ12001EXTEVAL — Simple Switcher® 电源模块 20V 输入电压、1A 扩展温度评估板

    The SIMPLE SWITCHER power module evaluation board is optimized for peak performance and increased flexibility. By incorporating additional ceramic and an aluminum filter capacitor, the power module EVAL board demonstrates the low output ripple, fast transient response, and low conducted and (...)

    LMZ12001EXT PSpice Transient Model

    PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用,包括业内超大的模型库之一,涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

    借助?PSpice for TI 的设计和仿真环境及其内置的模型库,您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案,然后再进行布局和制造,可缩短产品上市时间并降低开发成本。

    在?PSpice for TI 设计和仿真工具中,您可以搜索 TI (...)
