The MAX4597 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V₊ can be transmitted in either direction.

• Low ON-State Resistance (10 )
• ON-State Resistance Flatness (1.5 )
• Control Inputs Are 5.5-V Tolerant
• Low Charge Injection (5 pC Max)
• 300-MHz –3-dB Bandwidth at 25°C
• Low Total Harmonic Distortion (THD) (0.05%)
• 2-V to 5.5-V Single-Supply Operation
• Specified at 5-V and 3.3-V Nodes
• –83-dB OFF Isolation at 1 MHz
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• 0.5-nA Max OFF Leakage
• ESD Performance Tested Per JESD 22
  • 2000-V Human-Body Model (A114-B, Class II)
  • 1000-V Charged-Device Model (C101)
• TTL/CMOS-Logic Compatible
• Applications
  • Sample-and-Hold Circuits
  • Battery-Powered Equipment (Cellular Phones, PDAs)
  • Audio and Video Signal Routing
  • Communication Circuits
  • PCMCIA Cards

• Configuration
• 1:1 SPST
• Number of channels (#)
• 1
• Power supply voltage - single (V)
• 2.5, 3.3, 5
• Protocols
• Analog
• Ron (Typ) (Ohms)
• 6.5
• CON (Typ) (pF)
• 20
• ON-state leakage current (Max) (μA)
• 0.01
• Bandwidth (MHz)
• 300
• Operating temperature range (C)
• -40 to 85
• Input/output continuous current (Max) (mA)
• 20
• Rating
• Catalog

MAX4597的完整型号有：MAX4597DBVR、MAX4597DCKR，以下是这些产品的关键参数及官网采购报价：

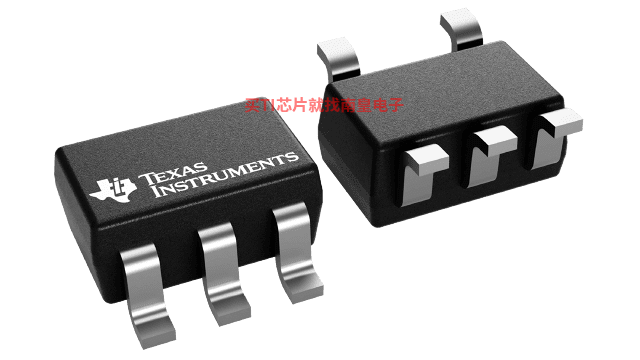

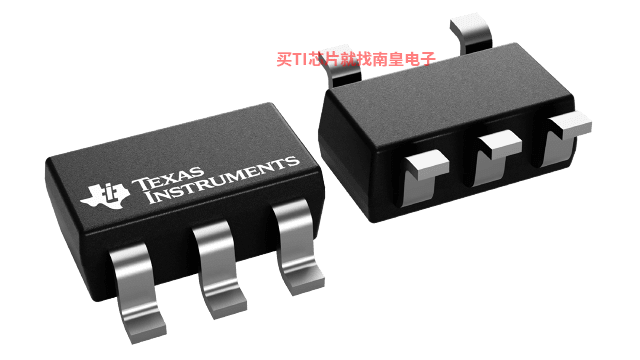

MAX4597DBVR，工作温度：-40 to 85，封装：SOT-23 (DBV)-5，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网MAX4597DBVR的批量USD价格：.316（1000+）

MAX4597DCKR，工作温度：-40 to 85，封装：SC70 (DCK)-5，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网MAX4597DCKR的批量USD价格：.316（1000+）

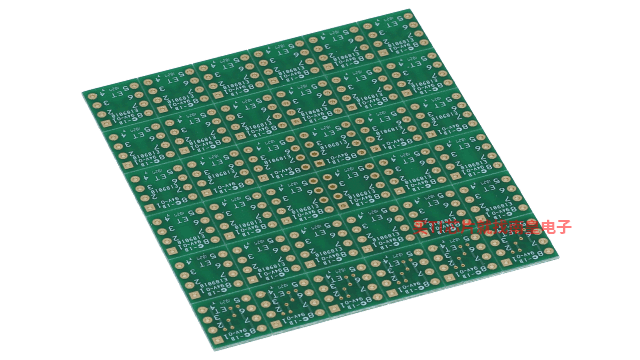

DIP-ADAPTER-EVM — DIP 适配器评估模块

借助 DIP-Adapter-EVM 加快运算放大器的原型设计和测试，该 EVM 有助于快速轻松地连接小型表面贴装 IC 并且价格低廉。您可以使用随附的 Samtec 端子板连接任何受支持的运算放大器，或者将这些端子板直接连接至现有电路。

DIP-Adapter-EVM 套件支持六种常用的业界通用封装，包括：

• D 和 U (SOIC-8)
• PW (TSSOP-8)
• DGK（MSOP-8、VSSOP-8）
• DBV（SOT23-6、SOT23-5 和 SOT23-3）
• DCK（SC70-6 和 SC70-5）
• DRL (SOT563-6)
