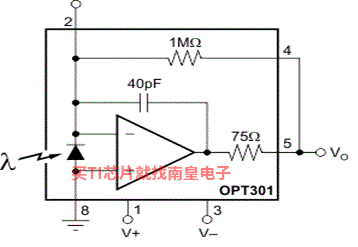

The OPT301 is an opto-electronic integrated circuit containing a photodiode and transimpedance amplifier on a single dielectrically isolated chip. The transimpedance amplifier consists of a precision FET input op amp and an on-chip metal film resistor. The 0.09 × 0.09 inch photodiode is operated at zero bias for excellent linearity and low dark current.

The integrated combination of photodiode and transimpedance amplifier on a single chip eliminates the problems commonly encountered in discrete designs such as leakage current errors, noise pick-up and gain peaking due to stray capacitance.

The OPT301 operates over a wide supply range (±2.25 to ±18V) and supply current is only 400µA. It is packaged in a hermetic TO-99 metal package with a glass window, and is specified for the –40°C to 85°C temperature range.

• PHOTODIODE SIZE: 0.090 x 0.090 inch (2.29 × 2.29mm)
• 1MΩ FEEDBACK RESISTOR
• HIGH RESPONSIVITY: 0.47A/W (650nm)
• IMPROVED UV RESPONSE
• LOW DARK ERRORS: 2mV
• BANDWIDTH: 4kHz
• WIDE SUPPLY RANGE: ±2.25 to ±18V
• LOW QUIESCENT CURRENT: 400μA
• HERMETIC TO-99

• Quiescent current (Max) (uA)
• 500
• Rating
• Catalog
• Operating temperature range (C)
• -55 to 125
• Interface type
• Voltage
• Input type
• Light

OPT301的完整型号有：OPT301M，以下是这些产品的关键参数及官网采购报价：

OPT301M，工作温度：-55 to 125，封装：TO (LMD)-8，包装数量MPQ：20个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：AU，TI官网OPT301M的批量USD价格：49.852（1000+）

OPT301M，工作温度：-55 to 125，封装：TO (LMD)-8，包装数量MPQ：20个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：AU，TI官网OPT301M的批量USD价格：49.852（1000+）
