- 制造厂商：TI
- 产品类别：逻辑和电压转换
- 技术类目：缓冲器、驱动器和收发器 - 通用收发器
- 功能描述：具有奇偶校验发生器/校验器的 18 位通用总线收发器
- 点击这里打开及下载SN74ALVCH16901的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
This 18-bit (dual-octal) noninverting registered transceiver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH16901 is a dual 9-bit to dual 9-bit parity transceiver with registers. The device can operate as a feed-through transceiver or it can generate/check parity from the two 8-bit data buses in either direction.
The SN74ALVCH16901 features independent clock (CLKAB or CLKBA), latch-enable (LEAB or LEBA), and dual 9-bit clock-enable (CLKENAB\ or CLKENBA\) inputs. It also provides parity-enable (SEL\) and parity-select (ODD/EVEN\) inputs and separate error-signal (ERRA\ or ERRB\) outputs for checking parity. The direction of data flow is controlled by OEAB\ and OEBA\. When SEL\ is low, the parity functions are enabled. When SEL\ is high, the parity functions are disabled and the device acts as an 18-bit registered transceiver.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The A and B I/Os and APAR and BPAR inputs have bus-hold circuitry. Active bus-hold circuitry holds unused or undriven data inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
- Member of the Texas Instruments Widebus+? Family
- UBT? Transceiver Combines D-Type Latches and D-Type Flip-Flops for Operation in Transparent, Latched, or Clocked Mode
- Operates From 1.65 V to 3.6 V
- Max tpd of 4.4 ns at 3.3 V
- ±24-mA Output Drive at 3.3 V
- Simultaneously Generates and Checks Parity
- Option to Select Generate Parity and Check or Feed-Through Data/Parity in A-to-B or B-to-A Directions
- Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
Widebus+ and UBT are trademarks of Texas Instruments Incorporated.
- IOL (Max) (mA)
- 24
- IOH (Max) (mA)
- -32
- Technology Family
- ALVC
- Rating
- Catalog
- Operating temperature range (C)
- -40 to 85
SN74ALVCH16901的完整型号有：SN74ALVCH16901DGGR，以下是这些产品的关键参数及官网采购报价：

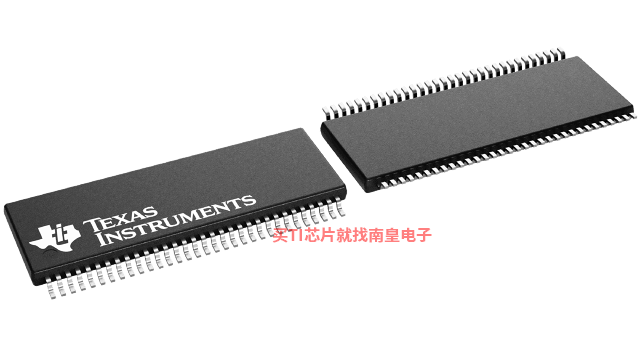

SN74ALVCH16901DGGR，工作温度：-40 to 85，封装：TSSOP (DGG)-64，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ALVCH16901DGGR的批量USD价格：1.708（1000+）
SN74ALVCH16901DGGR，工作温度：-40 to 85，封装：TSSOP (DGG)-64，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ALVCH16901DGGR的批量USD价格：1.708（1000+）
