SN74ALVTHR16245_TI 具有三态输出的 2.5V/3.3V、16 位总线收发器

制造厂商：TI
产品类别：逻辑和电压转换
技术类目：缓冲器、驱动器和收发器 - 通用收发器
功能描述：具有三态输出的 2.5V/3.3V、16 位总线收发器
点击这里打开及下载SN74ALVTHR16245的技术文档资料
TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格

SN74ALVTHR16245的产品详情：

The ’ALVTHR16245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V V_CC operation, but with the capability to provide a TTL interface to a 5-V system environment.

These devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE)\ input can be used to disable the device so that the buses are effectively isolated.

All outputs are designed to sink up to 12 mA, and include equivalent 30- resistors to reduce overshoot and undershoot.

These devices are fully specified for hot-insertion applications using I_off and power-up 3-state. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

When V_CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, (OE)\ should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

SN74ALVTHR16245的优势和特性：

State-of-the-Art Advanced BiCMOS Technology (ABT) Widebus? Design for 2.5-V and 3.3-V Operation and Low Static-Power Dissipation
Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 2.3-V to 3.6-V VCC)
Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
High Drive (–12/12 mA at 3.3-V VCC)
Ioff and Power-Up 3-State Support Hot Insertion
Use Bus Hold on Data Inputs in Place of External Pullup/Pulldown Resistors to Prevent the Bus From Floating
Output Ports Have Equivalent 30- Series Resistors, So No External Resistors Are Required
Flow-Through Architecture Facilitates Printed Circuit Board Layout
Distributed VCC and GND Pins Minimize High-Speed Switching Noise
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Widebus is a trademark of Texas Instruments.

SN74ALVTHR16245的参数（英文）：

IOL (Max) (mA)
12
IOH (Max) (mA)
-8
Technology Family
ALVT
Rating
Catalog
Operating temperature range (C)
-40 to 85

SN74ALVTHR16245具体的完整产品型号参数及价格（美元）：

SN74ALVTHR16245的完整型号有：SN74ALVTHR16245DL、SN74ALVTHR16245GR、SN74ALVTHR16245LR、SN74ALVTHR16245VR，以下是这些产品的关键参数及官网采购报价：

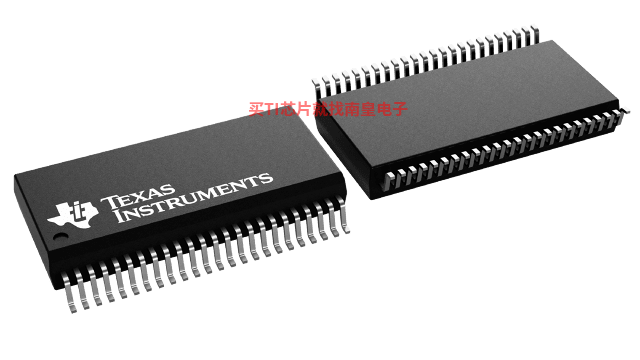

SN74ALVTHR16245DL，工作温度：-40 to 85，封装：SSOP (DL)-48，包装数量MPQ：25个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ALVTHR16245DL的批量USD价格：.837（1000+）

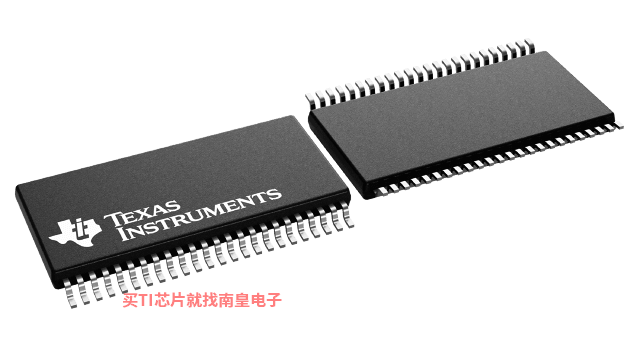

SN74ALVTHR16245GR，工作温度：-40 to 85，封装：TSSOP (DGG)-48，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ALVTHR16245GR的批量USD价格：.761（1000+）

SN74ALVTHR16245LR，工作温度：-40 to 85，封装：SSOP (DL)-48，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ALVTHR16245LR的批量USD价格：.837（1000+）

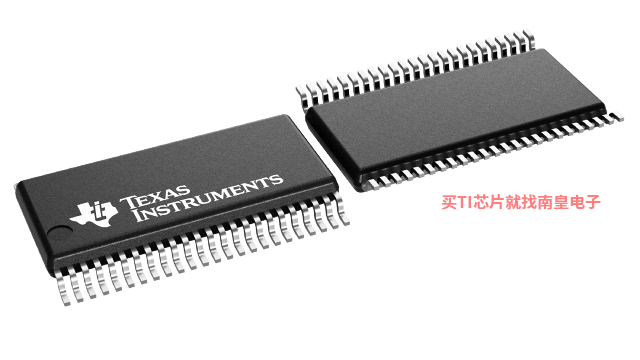

SN74ALVTHR16245VR，工作温度：-40 to 85，封装：TVSOP (DGV)-48，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ALVTHR16245VR的批量USD价格：.761（1000+）
