- 制造厂商：TI
- 产品类别：逻辑和电压转换
- 技术类目：缓冲器、驱动器和收发器 - 同相缓冲器和驱动器
- 功能描述：具有三态输出的 10 通道、4.5V 至 5.5V 缓冲器
- 点击这里打开及下载SN74BCT2827C的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
These 10-bit buffers and bus drivers are specifically designed to drive the capacitive input characteristics of MOS DRAMs. They provide high-performance bus interface for wide data paths or buses carrying parity.
The 3-state control gate is a 2-input AND gate with active-low inputs so if either output-enable (
or
) input is high, all ten outputs are in the high-impedance state. The outputs are also in the high-impedance state during power-up and power-down conditions. The outputs remain in the high-impedance state while the device is powered down.
The SN54BCT2827C is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74BCT2827C is characterized for operation from 0°C to 70°C.
- BiCMOS Design Substantially Reduces ICCZ
- Output Ports Have Equivalent 25- Resistors; No External Resistors Are Required
- Specifically Designed to Drive MOS DRAMs
- 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
- Flow-Through Architecture Optimizes PCB Layout
- Power-Up High-Impedance State
- ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015
- Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK) and Flatpacks (W), and Standard Plastic and Ceramic 300-mil DIPs (JT, NT)
- Technology Family
- BCT
- Supply voltage (Min) (V)
- 4.5
- Supply voltage (Max) (V)
- 5.5
- Number of channels (#)
- 10
- IOL (Max) (mA)
- 12
- ICC (Max) (uA)
- 40000
- IOH (Max) (mA)
- -1
- Input type
- Bipolar
- Output type
- 3-State
- Features
- Very high speed (tpd 5-10ns), Over-voltage tolerant inputs, Power up 3-state, Damping resistors
- Rating
- Catalog
SN74BCT2827C的完整型号有：SN74BCT2827CDW、SN74BCT2827CDWR，以下是这些产品的关键参数及官网采购报价：

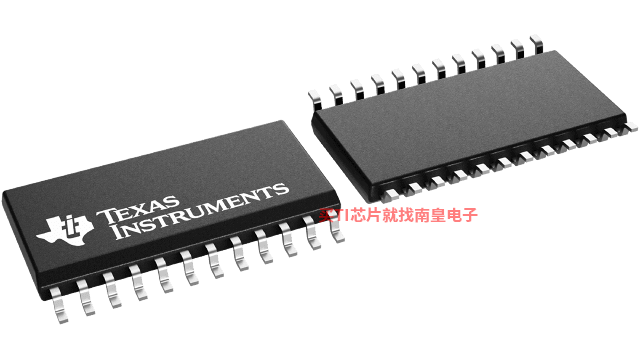

SN74BCT2827CDW，工作温度：0 to 70，封装：SOIC (DW)-24，包装数量MPQ：25个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74BCT2827CDW的批量USD价格：2.392（1000+）
SN74BCT2827CDWR，工作温度：0 to 70，封装：SOIC (DW)-24，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74BCT2827CDWR的批量USD价格：1.993（1000+）

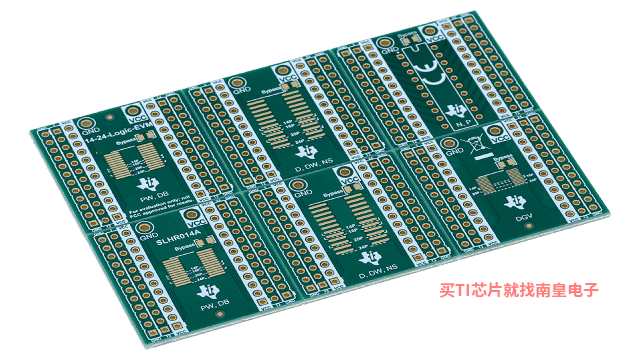

14-24-LOGIC-EVM — 支持 14 到 24 引脚 PW、DB、D、DW、NS、DYY 和 DGV 封装的通用逻辑 EVM
该 EVM 设计用于支持采用 14 至 24 引脚 D、DW、DB、NS、PW、DYY 或 DGV 封装的任何逻辑器件。
