- 制造厂商：TI
- 产品类别：逻辑和电压转换
- 技术类目：缓冲器、驱动器和收发器 - 同相缓冲器和驱动器
- 功能描述：具有漏极开路输出的增强型产品 2 通道、1.65V 至 5.5V 缓冲器
- 点击这里打开及下载SN74LVC2G07-EP的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
This dual buffer/driver is designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC2G07 is open drain and can be connected to other open-drain outputs to implement active low wired OR or active high wired AND functions. The maximum sink current is 32 mA.
This device is fully specified for partial power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Controlled Baseline
- One Assembly Site
- One Test Site
- One Fabrication Site
- Extended Temperature Performance of –55°C to 125°C
- Enhanced Diminishing Manufacturing Sources (DMS) Support
- Enhanced Product-Change Notification
- Qualification Pedigree
- Supports 5-V VCC Operation
- Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
- Max tpd of 5.7 ns at 3.3 V
- Low Power Consumption, 10 μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.
- Technology Family
- LVC
- Supply voltage (Min) (V)
- 1.65
- Supply voltage (Max) (V)
- 5.5
- Number of channels (#)
- 2
- IOL (Max) (mA)
- 32
- ICC (Max) (uA)
- 10
- IOH (Max) (mA)
- -32
- Input type
- Standard CMOS
- Output type
- Open-Drain
- Features
- Very high speed (tpd 5-10ns), Partial power down (Ioff), Over-voltage tolerant inputs
- Rating
- HiRel Enhanced Product
SN74LVC2G07-EP的完整型号有：74LVC2G07MDCKTEPG4、SN74LVC2G07MDCKTEP、V62/08616-01XE，以下是这些产品的关键参数及官网采购报价：

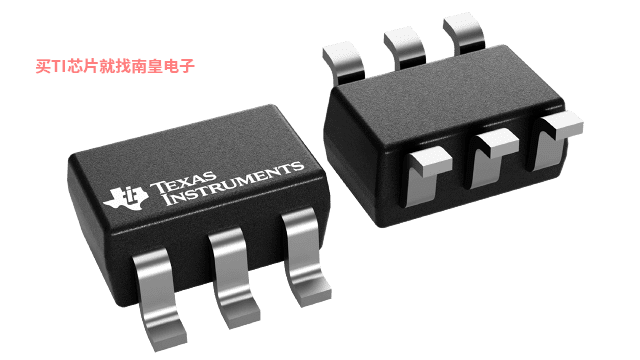

74LVC2G07MDCKTEPG4，工作温度：-55 to 125，封装：SC70 (DCK)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网74LVC2G07MDCKTEPG4的批量USD价格：1.239（1000+）
SN74LVC2G07MDCKTEP，工作温度：-55 to 125，封装：SC70 (DCK)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVC2G07MDCKTEP的批量USD价格：1.239（1000+）
V62/08616-01XE，工作温度：-55 to 125，封装：SC70 (DCK)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网V62/08616-01XE的批量USD价格：1.239（1000+）
74LVC2G07MDCKTEPG4，工作温度：-55 to 125，封装：SC70 (DCK)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网74LVC2G07MDCKTEPG4的批量USD价格：1.239（1000+）
SN74LVC2G07MDCKTEP，工作温度：-55 to 125，封装：SC70 (DCK)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVC2G07MDCKTEP的批量USD价格：1.239（1000+）
V62/08616-01XE，工作温度：-55 to 125，封装：SC70 (DCK)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网V62/08616-01XE的批量USD价格：1.239（1000+）
