- 制造厂商:TI
- 产品类别:逻辑和电压转换
- 技术类目:缓冲器、驱动器和收发器 - 反向缓冲器和驱动器
- 功能描述:具有三态输出的 8 通道、2.7V 至 3.6V 反相器
- 点击这里打开及下载SN74LVCZ240A的技术文档资料
- TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
This octal buffer/driver is designed for 2.7-V to 3.6-V VCC operation.
The SN74LVCZ240A is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
This device is organized as two 4-bit buffers/drivers with separate output-enable (OE)\ inputs. When OE\ is low, the device passes data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.
When VCC is between 0 and 1.5 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
This device is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.
- Operates From 2.7 V to 3.6 V
- Inputs Accept Voltages to 5.5 V
- Max tpd of 6.5 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) <2 V at VCC = 3.3 V, TA = 25°C
- Ioff and Power-Up 3-State Support Hot Insertion
- Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC)
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
- Technology Family
- LVC
- Supply voltage (Min) (V)
- 2.7
- Supply voltage (Max) (V)
- 3.6
- Number of channels (#)
- 8
- IOL (Max) (mA)
- 24
- IOH (Max) (mA)
- -24
- ICC (Max) (uA)
- 100
- Input type
- Standard CMOS
- Output type
- 3-State
- Features
- Balanced outputs, Very high speed (tpd 5-10ns), Damping resistors
- Rating
- Catalog
SN74LVCZ240A的完整型号有:SN74LVCZ240ADW、SN74LVCZ240ANSR、SN74LVCZ240APW、SN74LVCZ240APWR,以下是这些产品的关键参数及官网采购报价:

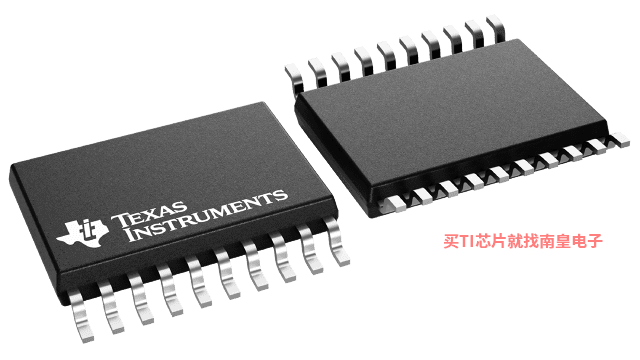

SN74LVCZ240ADW,工作温度:-40 to 85,封装:SOIC (DW)-20,包装数量MPQ:25个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网SN74LVCZ240ADW的批量USD价格:.399(1000+)
SN74LVCZ240ANSR,工作温度:-40 to 85,封装:SO (NS)-20,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网SN74LVCZ240ANSR的批量USD价格:.439(1000+)
SN74LVCZ240APW,工作温度:-40 to 85,封装:TSSOP (PW)-20,包装数量MPQ:70个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网SN74LVCZ240APW的批量USD价格:.479(1000+)
SN74LVCZ240APWR,工作温度:-40 to 85,封装:TSSOP (PW)-20,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网SN74LVCZ240APWR的批量USD价格:.399(1000+)
14-24-LOGIC-EVM — 支持 14 到 24 引脚 PW、DB、D、DW、NS、DYY 和 DGV 封装的通用逻辑 EVM
该 EVM 设计用于支持采用 14 至 24 引脚 D、DW、DB、NS、PW、DYY 或 DGV 封装的任何逻辑器件。
