These octal flip-flops are designed specifically for low-voltage (3.3-V) V_CC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The eight flip-flops of the ’LVTH374 devices are edge-triggered D-type flip-flops. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels set up at the data (D) inputs.

A buffered output-enable (OE)\ input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.

OE\ does not affect the internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

When V_CC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE\ should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

These devices are fully specified for hot-insertion applications using I_off and power-up 3-state. The I_off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

• Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
• Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
• Support Unregulated Battery Operation Down to 2.7 V
• Ioff and Power-Up 3-State Support Hot Insertion
• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Latch-Up Performance Exceeds 500 mA Per JESD 17
• ESD Protection Exceeds JESD 22
  • 2000-V Human-Body Model (A114-A)
  • 200-V Machine Model (A115-A)

• Number of channels (#)
• 8
• Technology Family
• LVT
• Supply voltage (Min) (V)
• 2.7
• Supply voltage (Max) (V)
• 3.6
• Input type
• TTL-Compatible CMOS
• Output type
• 3-State
• Clock Frequency (Max) (MHz)
• 150
• IOL (Max) (mA)
• 64
• IOH (Max) (mA)
• -32
• ICC (Max) (uA)
• 5000
• Features
• Ultra high speed (tpd <5ns), Over-voltage tolerant inputs, Partial power down (Ioff), Power up 3-state, Bus-hold

SN74LVTH374的完整型号有：SN74LVTH374DBR、SN74LVTH374DW、SN74LVTH374DWR、SN74LVTH374NSR、SN74LVTH374PW、SN74LVTH374PWR，以下是这些产品的关键参数及官网采购报价：

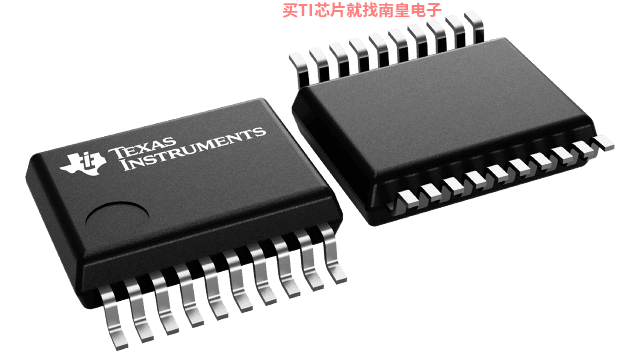

SN74LVTH374DBR，工作温度：-40 to 85，封装：SSOP (DB)-20，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVTH374DBR的批量USD价格：.263（1000+）

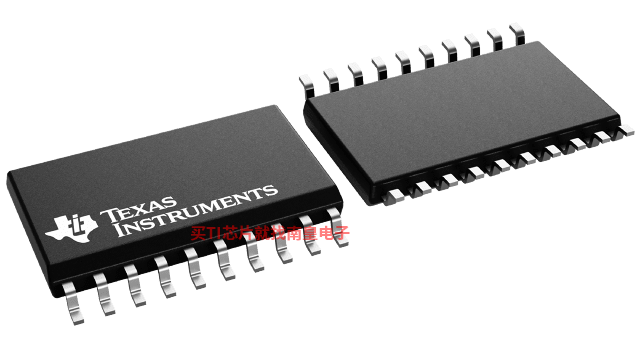

SN74LVTH374DW，工作温度：-40 to 85，封装：SOIC (DW)-20，包装数量MPQ：25个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVTH374DW的批量USD价格：.287（1000+）

SN74LVTH374DWR，工作温度：-40 to 85，封装：SOIC (DW)-20，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVTH374DWR的批量USD价格：.239（1000+）

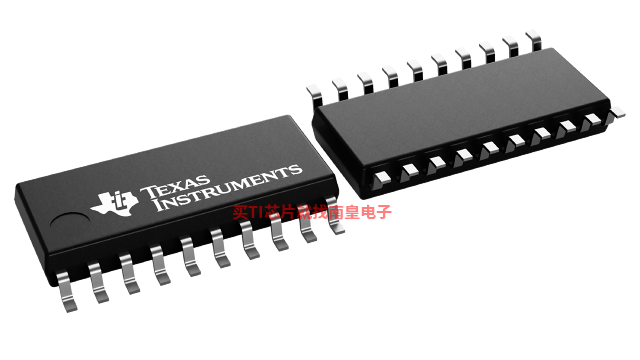

SN74LVTH374NSR，工作温度：-40 to 85，封装：SO (NS)-20，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVTH374NSR的批量USD价格：.263（1000+）

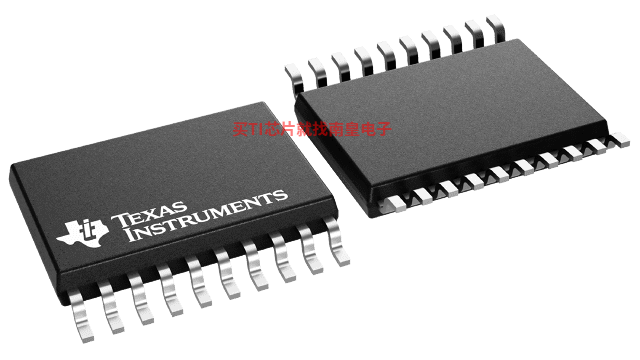

SN74LVTH374PW，工作温度：-40 to 85，封装：TSSOP (PW)-20，包装数量MPQ：70个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVTH374PW的批量USD价格：.287（1000+）

SN74LVTH374PWR，工作温度：-40 to 85，封装：TSSOP (PW)-20，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74LVTH374PWR的批量USD价格：.239（1000+）

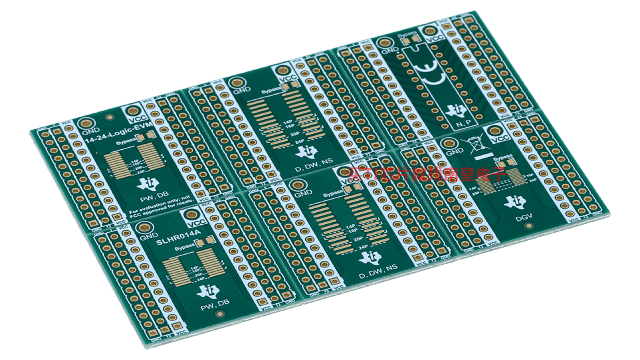

14-24-LOGIC-EVM — 支持 14 到 24 引脚 PW、DB、D、DW、NS、DYY 和 DGV 封装的通用逻辑 EVM

该 EVM 设计用于支持采用 14 至 24 引脚 D、DW、DB、NS、PW、DYY 或 DGV 封装的任何逻辑器件。
