SN75ALS176的产品详情:

The SN65ALS176 and SN75ALS176 series differential bus transceivers are designed for bidirectional data communication on multipoint bus transmission lines. They are designed for balanced transmission lines and meet TIA/EIA-422-B, TIA/EIA-485-A, and ITU Recommendations V.11 and X.27.

The SN65ALS176 and SN75ALS176 series combine a 3-state, differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form a differential input/output (I/O) bus port that is designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. This port features wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications.

The SN65ALS176 is characterized for operation from -40°C to 85°C. The SN75ALS176 series is characterized for operation from 0°C to 70°C.

SN75ALS176的优势和特性:
  • Meet or Exceed the Requirements of TIA/EIA-422-B, TIA/EIA-485-A and ITU Recommendations V.11 and X.27
  • Operate at Data Rates up to 35 Mbaud
  • Four Skew Limits Available:
  • SN65ALS176...15 ns
  • SN75ALS176...10 ns
  • SN75ALS176A...7.5 ns
  • SN75ALS176B...5 ns
  • Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments
  • Low Supply-Current Requirements ...30 mA Max
  • Wide Positive and Negative Input/Output Bus-Voltage Ranges
  • Thermal Shutdown Protection
  • Driver Positive and Negative Current Limiting
  • Receiver Input Hysteresis
  • Glitch-Free Power-Up and Power-Down Protection
  • Receiver Open-Circuit Fail-Safe Design
SN75ALS176的参数(英文):
  • Number of receivers
  • 4
  • Number of transmitters
  • 1
  • Duplex
  • Half
  • Supply voltage (Nom) (V)
  • 5
  • Signaling rate (Max) (Mbps)
  • 35
  • IEC 61000-4-2 contact (+/- kV)
  • None
  • Fault protection (V)
  • -10 to 15
  • Common mode range
  • -7 to 12
  • Number of nodes
  • 32
  • Isolated
  • No
  • ICC (Max) (mA)
  • 30
  • Rating
  • Catalog
  • Operating temperature range (C)
  • 0 to 70
SN75ALS176具体的完整产品型号参数及价格(美元):

SN75ALS176的完整型号有:SN75ALS176D、SN75ALS176DR、SN75ALS176P,以下是这些产品的关键参数及官网采购报价:

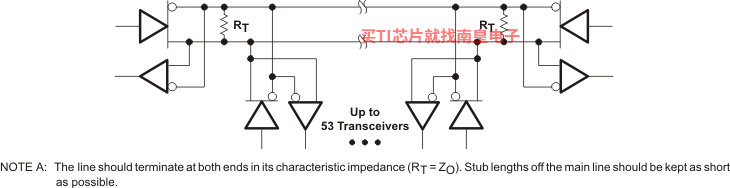

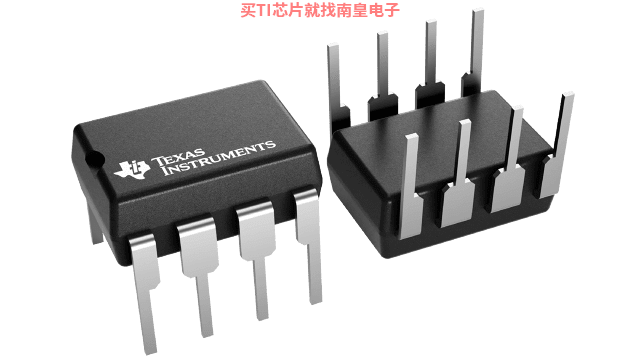

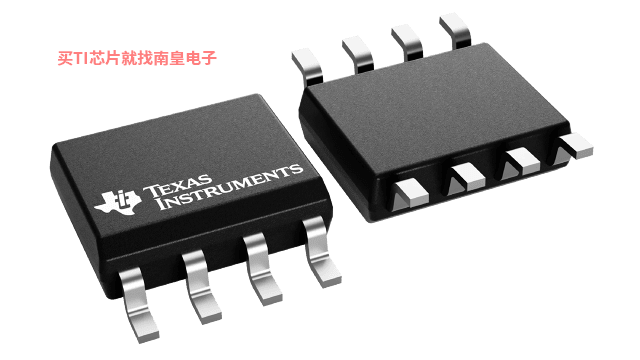

SN75ALS176D,工作温度:0 to 70,封装:SOIC (D)-8,包装数量MPQ:75个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网SN75ALS176D的批量USD价格:1.022(1000+)

SN75ALS176DR,工作温度:0 to 70,封装:SOIC (D)-8,包装数量MPQ:2500个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网SN75ALS176DR的批量USD价格:.356(1000+)

SN75ALS176P,工作温度:0 to 70,封装:PDIP (P)-8,包装数量MPQ:50个,MSL 等级/回流焊峰值温度:N/A for Pkg Type,引脚镀层/焊球材料:NIPDAU,TI官网SN75ALS176P的批量USD价格:.98(1000+)
