These quad differential receivers accept digital data overbalanced transmission lines. They translate differential input logic levels to TTL output logic levels.

The TB5R1 is a pin- and function-compatible replacement for the Agere systems BRF1A and BRF2A; it includes 3-kV HBM and 2-kV CDM ESD protection.

The TB5R2 is a pin- and function-compatible replacement for the Agere systems BRS2A and BRS2B and incorporates a 125-mV receiver input offset, preferred state output, 3-kV HBM and 2-kV CDM ESD protection. The TB5R2 preferred state feature places the high state when the inputs are open, shorted to ground, or shorted to the power supply.

The power-down loading characteristics of the receiver input circuit are approximately 8 k relative to the power supplies; hence they do not load the transmission line when the circuit is powered down.

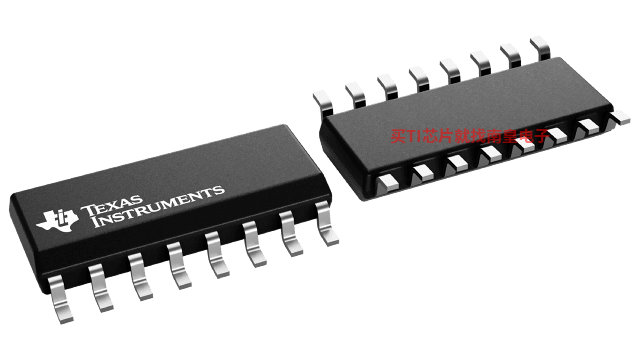

The packaging for these differential line receivers include a 16-pin gull wing SOIC (DW) and SOIC (D).

The enable inputs of this device include internal pullup resistors of approximately 40 k that are connected to V_CC to ensure a logical high level input if the inputs are open circuited.

• Functional Replacements for the Agere BRF1A, BRF2A, BRS2A, and BRS2B
• Pin Equivalent to General Trade 26LS32
• High Input Impedance Approximately 8 k
• 4-ns Maximum Propagation Delay
• TB5R1 Provides 50-mV Hysteresis
• TB5R2 With -125-mV Threshold Offset for Preferred State Output
• -1.1-V to 7.1-V Common Mode Range
• Single 5-V ±10% Supply
• Slew Rate Limited (1 ns min 80% to 20%)
• TB5R2 Output Defaults to Logic 1 When Inputs Left Open or Shorted to VCC or GND
• ESD Protection HBM > 3 kV, CDM > 2 kV
• Operating Temperature Range: -40°C to 85°C

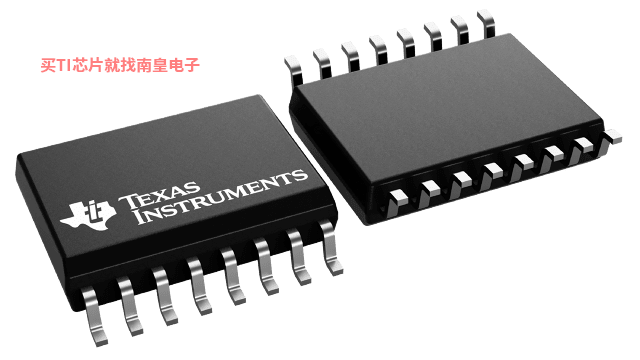

• Available in Gull-Wing SOIC (JEDEC MS-013, DW) and SOIC (D) Package
• APPLICATIONS
  • Digital Data or Clock Transmission Over Balanced Lines

• Function
• Receiver
• Protocols
• PECL
• Number of transmitters
• 0
• Number of receivers
• 4
• Supply voltage (V)
• 5
• Signaling rate (Mbps)
• 100
• Input signal
• PECL
• Output signal
• TTL
• Rating
• Catalog
• Operating temperature range (C)
• -40 to 85

TB5R1的完整型号有：TB5R1D、TB5R1DW，以下是这些产品的关键参数及官网采购报价：

TB5R1D，工作温度：-40 to 85，封装：SOIC (D)-16，包装数量MPQ：40个，MSL 等级/回流焊峰值温度：Level-2-250C-1YEAR/Level-1-220C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TB5R1D的批量USD价格：8.95（1000+）

TB5R1DW，工作温度：-40 to 85，封装：SOIC (DW)-16，包装数量MPQ：40个，MSL 等级/回流焊峰值温度：Level-2-250C-1YEAR/Level-1-220C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TB5R1DW的批量USD价格：8.95（1000+）
