TL317_TI 100mA、35V、低 IQ、可调节线性稳压器

TL317的基本参数

制造厂商：TI
产品类别：电源管理
技术类目：线性和低压降 (LDO) 稳压器
功能描述：100mA、35V、低 IQ、可调节线性稳压器
点击这里打开及下载TL317的技术文档资料
TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格

TL317的产品详情：

The TL317 is an adjustable three-terminal positive-voltage regulator capable of supplying 100 mA over an output-voltage range of 1.25 V to 32 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage.

This regulator offers full overload protection available only in integrated circuits. Included on the chip are current-limiting and thermal-overload protection. All overload-protection circuitry remains fully functional, even when ADJUSTMENT is disconnected. Normally, no capacitors are required unless the device is situated far from the input filter capacitors, in which case an input bypass is required. An optional output capacitor can be added to improve transient response. ADJUSTMENT can be bypassed to achieve very high ripple rejection.

In addition to replacing fixed regulators, the TL317 regulator is useful in a wide variety of other applications. Because the regulator is floating and sees only the input-to-output differential voltage, supplies of several hundred volts can be regulated as long as the maximum input-to-output differential is not exceeded. Its primary application is that of a programmable output regulator, but by connecting a fixed resistor between ADJUSTMENT and OUTPUT, this device can be used as a precision current regulator. Supplies with electronic shutdown can be achieved by clamping ADJUSTMENT to ground, programming the output to 1.25 V, where most loads draw little current.

TL317的优势和特性：

Output Voltage Range Adjustable From 1.25 V to 32 V When Used With an External Resistor Divider
Output Current Capability of 100 mA
Input Regulation Typically 0.01% Per Input-Voltage Change
Output Regulation Typically 0.5%
Ripple Rejection Typically 80 dB

TL317的参数（英文）：

Output options
Adjustable Output
Iout (Max) (A)
0.1
Vin (Max) (V)
35
Vin (Min) (V)
2.5
Vout (Max) (V)
32
Vout (Min) (V)
1.25
Noise (uVrms)
30
Iq (Typ) (mA)
0.05
Thermal resistance θJA (°C/W)
110
Rating
Catalog
Load capacitance (Min) (μF)
0
Regulated outputs (#)
1
Features
—
Accuracy (%)
1.5
Dropout voltage (Vdo) (Typ) (mV)
2000
Operating temperature range (C)
-40 to 125, 0 to 125

TL317具体的完整产品型号参数及价格（美元）：

TL317的完整型号有：TL317CD、TL317CDR、TL317CDRG4、TL317CLP、TL317CLPR、TL317CPWR、TL317PS、TL317PSR，以下是这些产品的关键参数及官网采购报价：

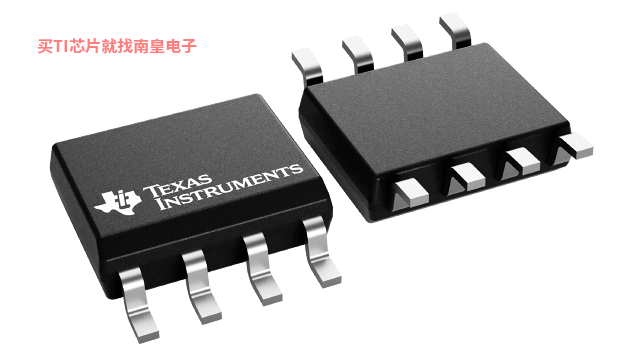

TL317CD，工作温度：0 to 125，封装：SOIC (D)-8，包装数量MPQ：75个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TL317CD的批量USD价格：.331（1000+）

TL317CDR，工作温度：0 to 125，封装：SOIC (D)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TL317CDR的批量USD价格：.077（1000+）

TL317CDRG4，工作温度：0 to 125，封装：SOIC (D)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TL317CDRG4的批量USD价格：.317（1000+）

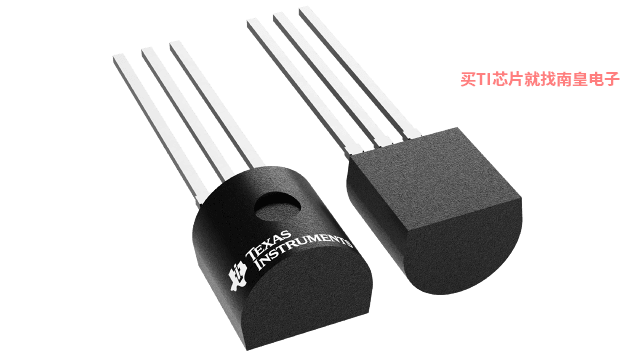

TL317CLP，工作温度：0 to 125，封装：TO-92 (LP)-3，包装数量MPQ：1000个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SN，TI官网TL317CLP的批量USD价格：.348（1000+）

TL317CLPR，工作温度：0 to 125，封装：TO-92 (LP)-3，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SN，TI官网TL317CLPR的批量USD价格：.293（1000+）

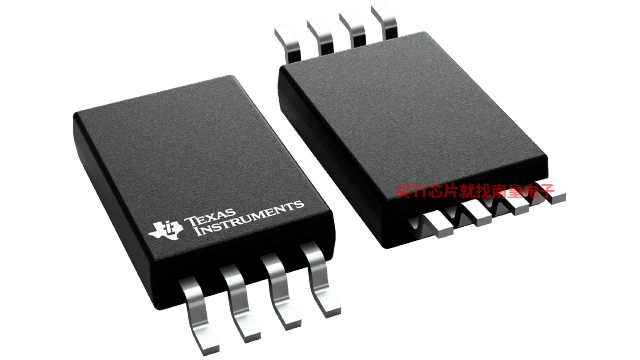

TL317CPWR，工作温度：0 to 125，封装：TSSOP (PW)-8，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SN，TI官网TL317CPWR的批量USD价格：.276（1000+）

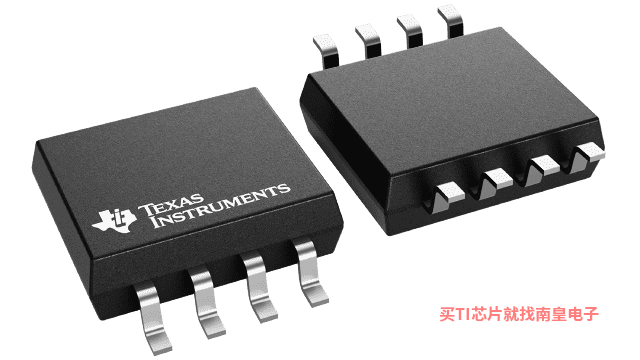

TL317PS，工作温度：-40 to 125，封装：SO (PS)-8，包装数量MPQ：80个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TL317PS的批量USD价格：.331（1000+）

TL317PSR，工作温度：-40 to 125，封装：SO (PS)-8，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TL317PSR的批量USD价格：.276（1000+）

TL317的评估套件：

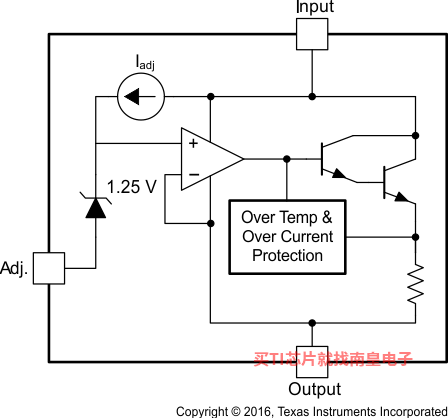

TL317的电路图解：
