- 制造厂商:TI(德州仪器,Texas Instruments)
- 产品类别:电源管理
- 技术类目:监控器和复位 IC
- 功能描述:适用于 5V 系统的 4 引脚监控器
- 点击这里打开及下载TL7759的技术文档资料
- TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格

The TL7759 is a supply-voltage supervisor designed for use as a reset controller in microcomputer and microprocessor systems. The supervisor monitors the supply voltage for undervoltage conditions. During power up, when the supply voltage, VCC, attains a value approaching 1 V, the RESET and RESET\ outputs become active (high and low, respectively) to prevent undefined operation. If the supply voltage drops below the input threshold voltage level (VIT-), the reset outputs go to the reset active state until the supply voltage has returned to its nominal value (see timing diagram).
The TL7759C is characterized for operation from 0°C to 70°C.
- Power-On Reset Generator
- Automatic Reset Generation After Voltage Drop
- Precision Input Threshold Voltage...4.55 V ±120 mV
- Low Standby Current...20 uA
- Reset Outputs Defined When VCC Exceeds 1 V
- True and Complementary Reset Outputs
- Wide Supply-Voltage Range...1 V to 7 V
- Number of supplies monitored
- 1
- Threshold voltage 1 (Typ) (V)
- 4.55
- Features
- Wide input voltage, Complimentary output
- Reset threshold accuracy (%)
- 2.6
- Output driver type/reset output
- Active-high, Active-low, Open-drain
- Time delay (ms)
- Programmable
- Rating
- Catalog
- Watchdog timer WDI (sec)
- None
- Operating temperature range (C)
- 0 to 70
TL7759的完整型号有:TL7759CD、TL7759CDR、TL7759CP、TL7759CPSR、TL7759CPWR,以下是这些产品的关键参数及官网采购报价:

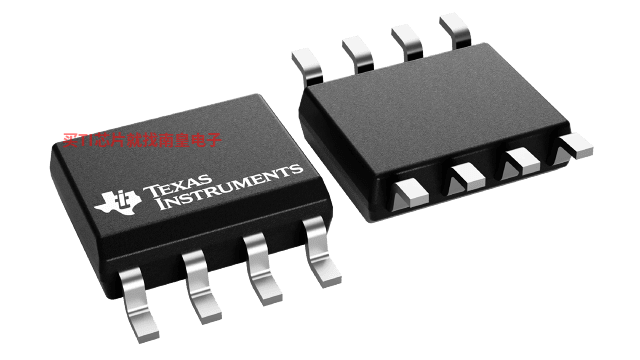

TL7759CD,工作温度:0 to 70,封装:SOIC (D)-8,包装数量MPQ:75个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网TL7759CD的批量USD价格:.361(1000+)
TL7759CDR,工作温度:0 to 70,封装:SOIC (D)-8,包装数量MPQ:2500个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网TL7759CDR的批量USD价格:.301(1000+)

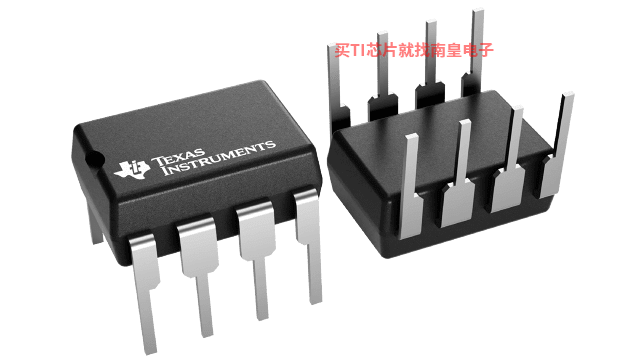

TL7759CP,工作温度:0 to 70,封装:PDIP (P)-8,包装数量MPQ:50个,MSL 等级/回流焊峰值温度:N/A for Pkg Type,引脚镀层/焊球材料:NIPDAU,TI官网TL7759CP的批量USD价格:.346(1000+)

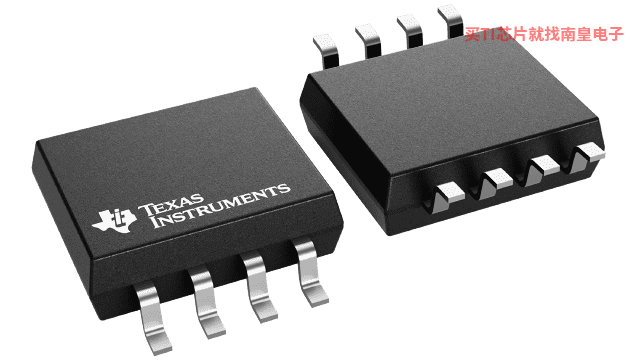

TL7759CPSR,工作温度:0 to 70,封装:SO (PS)-8,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网TL7759CPSR的批量USD价格:.331(1000+)

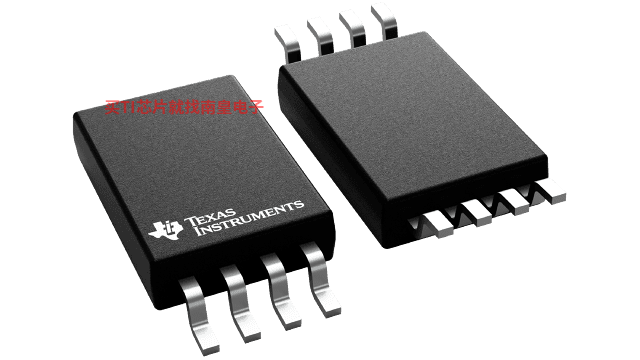

TL7759CPWR,工作温度:0 to 70,封装:TSSOP (PW)-8,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网TL7759CPWR的批量USD价格:.301(1000+)
