TMP105的基本参数
  • 制造厂商:TI
  • 产品类别:传感器
  • 技术类目:温度传感器和控制 IC - 数字温度传感器
  • 功能描述:具有 I2C/SMBus 接口和警报功能的 ±2°C、2.6V 至 3.3V 数字温度传感器
  • 点击这里打开及下载TMP105的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
快速报价,在行业拥有较高的知名度及影响力
TMP105的产品详情:

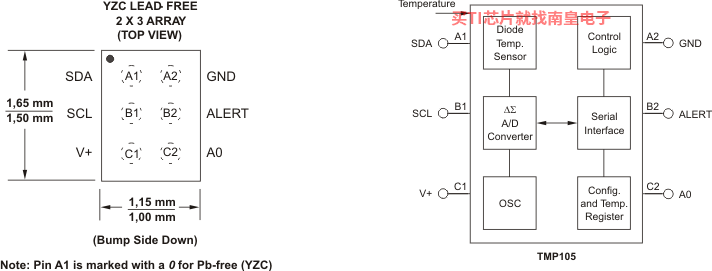

The TMP105 is a two-wire, serial output temperature sensor available in a WCSP package. Requiring no external components, the TMP105 is capable of reading temperatures with a resolution of 0.0625°C.

The TMP105 features a Two-Wire interface that is SMBus-compatible, with the TMP105 allowing up to two devices on one bus. The TMP105 features an SMBus Alert function.

The TMP105 is ideal for extended temperature measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications.

The TMP105 is specified for operation over a temperature range of –40°C to +125°C.

TMP105的优势和特性:
  • SUPPORTS 1.8V I2C BUS
  • TWO ADDRESSES
  • DIGITAL OUTPUT: Two-Wire Serial Interface
  • RESOLUTION: 9- to 12-Bits, User-Selectable
  • ACCURACY:
    • ±2.0°C (max) from –25°C to +85°C
    • ±3.0°C (max) from –40°C to +125°C
  • LOW QUIESCENT CURRENT: 50μA, 1.5μA Standby
  • NO POWER-UP SEQUENCE REQUIRED, I2C PULLUPS CAN BE ENABLED PRIOR TO V+
TMP105的参数(英文):
  • Local sensor accuracy (Max) (+/- C)
  • 2
  • Type
  • Local
  • Operating temperature range (C)
  • -40 to 125
  • Supply voltage (Min) (V)
  • 2.6
  • Interface type
  • I2C, SMBus
  • Supply voltage (Max) (V)
  • 3.3
  • Supply current (Max) (uA)
  • 85
  • Temp resolution (Max) (bits)
  • 12
  • Features
  • ALERT, One-shot conversion
  • Remote channels (#)
  • 0
  • Addresses
  • 2
  • Rating
  • Catalog
TMP105具体的完整产品型号参数及价格(美元):

TMP105的完整型号有:TMP105YZCR、TMP105YZCT,以下是这些产品的关键参数及官网采购报价:

TMP105YZCR,工作温度:-40 to 125,封装:DSBGA (YZC)-6,包装数量MPQ:3000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SNAGCU,TI官网TMP105YZCR的批量USD价格:.647(1000+)

TMP105YZCT,工作温度:-40 to 125,封装:DSBGA (YZC)-6,包装数量MPQ:250个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SNAGCU,TI官网TMP105YZCT的批量USD价格:.776(1000+)

轻松满足您的TI芯片采购需求
TMP105的评估套件:

LM75SW-LINUX — 用于 LM75 的 Linux 驱动程序

Linux 驱动程序支持 LM75 兼容温度传感器。Linux 驱动程序支持通过 I2C 总线进行通信,并可与硬件监测子系统接口连接。
Linux 主线状态

在 Linux 主线中提供:是
可通过 git.ti.com 获取:不适用

支持的器件:
  • LM75A
  • TMP100
  • TMP101
  • TMP105
  • TMP112
  • TMP175
  • TMP275
  • TMP75
  • TMP1075
Linux 源文件

与该器件关联的文件为:

  • drivers/hwmon/lm75.c
  • Documentation/devicetree/bindings/i2c/trivial-devices.txt
  • drivers/hwmon/lm75.h
  • (...)
