- 制造厂商：TI
- 产品类别：传感器
- 技术类目：温度传感器和控制 IC - 数字温度传感器
- 功能描述：采用 SOT-23 封装、具有 SPI 接口和警报功能的 ±1.5°C 数字温度传感器
- 点击这里打开及下载TMP122的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
The TMP122 and TMP124 are SPI-compatible temperature sensors available in SOT23-6 and SO-8 packages. Requiring only a pull up resistor for complete function, the TMP122 and TMP124 temperature sensors are capable of measuring temperatures within 2°C of accuracy over a temperature range of –40°C to +125°C, with operation up to 150°C. Programmable resolution, programmable set points and shut down function provide versatile for any application. Low supply current, and a supply range from 2.7V to 5.5V, make the TMP122 an excellent candidate for low-power applications.
The TMP122 and TMP124 are ideal for extended thermal measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications.
- DIGITAL OUTPUT: SPI-Compatible Interface
- PROGRAMMABLE RESOLUTION: 9- to 12-Bits + Sign
- ACCURACY: ±1.5°C from –25°C to +85°C (max) ±2.0°C from –40°C to +125°C (max)
- LOW QUIESCENT CURRENT: 50 μA
- WIDE SUPPLY RANGE: 2.7V to 5.5V
- TINY SOT23-6 AND SO-8 PACKAGES
- OPERATION TO 150°C
- PROGRAMMABLE HIGH/LOW SETPOINTS
- APPLICATIONS
- POWER-SUPPLY TEMPERATURE MONITORING
- COMPUTER PERIPHERAL THERMAL PROTECTION
- NOTEBOOK COMPUTERS
- CELL PHONES
- BATTERY MANAGEMENT
- OFFICE MACHINES
- THERMOSTAT CONTROLS
- ENVIRONMENTAL MONITORING and HVAC
- ELECTROMECHANICAL DEVICE TEMPERATURE
SPI is a registered trademark of Motorola. All other trademarks are the property of their respective owners.
- Local sensor accuracy (Max) (+/- C)
- 1.5
- Type
- Local
- Operating temperature range (C)
- -40 to 125
- Supply voltage (Min) (V)
- 2.7
- Interface type
- SPI
- Supply voltage (Max) (V)
- 5.5
- Supply current (Max) (uA)
- 75
- Temp resolution (Max) (bits)
- 12
- Features
- ALERT
- Remote channels (#)
- 0
- Addresses
- NA
- Rating
- Catalog
TMP122的完整型号有：TMP122AIDBVR、TMP122AIDBVT，以下是这些产品的关键参数及官网采购报价：

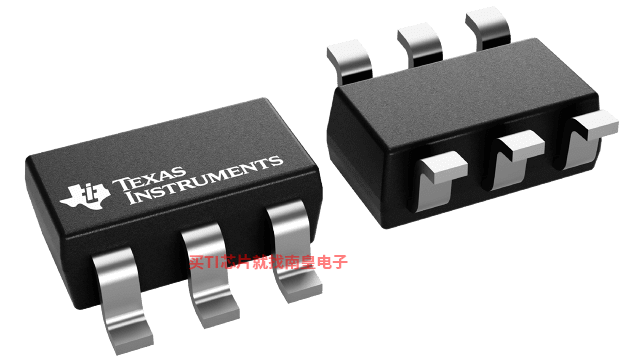

TMP122AIDBVR，工作温度：-40 to 125，封装：SOT-23 (DBV)-6，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TMP122AIDBVR的批量USD价格：1.002（1000+）
TMP122AIDBVT，工作温度：-40 to 125，封装：SOT-23 (DBV)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TMP122AIDBVT的批量USD价格：1.202（1000+）
TMP122AIDBVR，工作温度：-40 to 125，封装：SOT-23 (DBV)-6，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TMP122AIDBVR的批量USD价格：1.002（1000+）
TMP122AIDBVT，工作温度：-40 to 125，封装：SOT-23 (DBV)-6，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TMP122AIDBVT的批量USD价格：1.202（1000+）
