The TPA6100A2D is a stereo audio power amplifier packaged in either an 8-pin SOIC package or an 8-pin MSOP package capable of delivering 50 mW of continuous RMS power per channel into 16- loads. Amplifier gain is externally configured by a means of three resistors per input channel and does not require external compensation for settings of 1 to 10.

The TPA6100A2D is optimized for battery applications because of its low supply current, shutdown current, and THD+N. To obtain the low-supply voltage range, the TPA6100A2D biases BYPASS to V_DD/4. A resistor with a resistance equal to R_F must be added from the inputs to ground to allow the output to be biased at V_DD/2.

When driving a 16- load with 45-mW output power from 3.3 V, THD+N is 0.04% at 1 kHz, and less than 0.2% across the audio band of 20 Hz to 20 kHz. For 28 mW into 32- loads, the THD+N is reduced to less than 0.03% at 1 kHz, and is less than 0.2% across the audio band of 20 Hz to 20 kHz.

• 50-mW Stereo Output
• Low Supply Current...0.75 mA
• Low Shutdown Current...50 nA
• Pin Compatible With LM4881 and TPA102(1)
• Pop Reduction Circuitry
• Internal Midrail Generation
• Thermal and Short-Circuit Protection
• Surface-Mount Packaging
  • MSOP and SOIC
• 1.6-V to 3.6-V Supply Voltage Range

(1) The polarity of the SHUTDOWN\ pin is reversed.

• Output power (W)
• 0.05
• Analog supply (Min) (V)
• 1.6
• Analog supply (Max) (V)
• 3.6
• PSRR (dB)
• 72
• Rating
• Catalog
• Operating temperature range (C)
• -40 to 85
• Headphone channels
• Stereo
• Volume control
• No
• Shutdown current (ISD) (uA)
• 0.05
• Architecture
• Class-AB
• Iq per channel (Typ) (mA)
• 0.8

TPA6100A2的完整型号有：TPA6100A2D、TPA6100A2DGK、TPA6100A2DGKR、TPA6100A2DR，以下是这些产品的关键参数及官网采购报价：

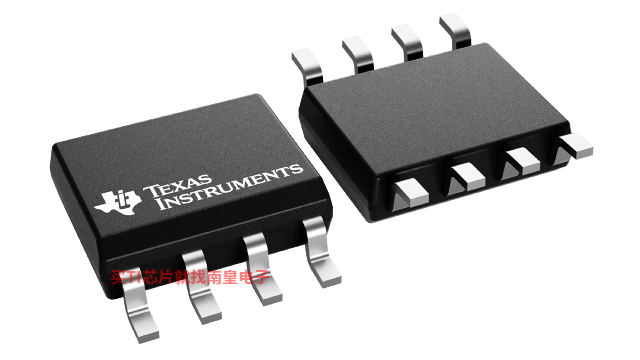

TPA6100A2D，工作温度：-40 to 85，封装：SOIC (D)-8，包装数量MPQ：75个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPA6100A2D的批量USD价格：.474（1000+）

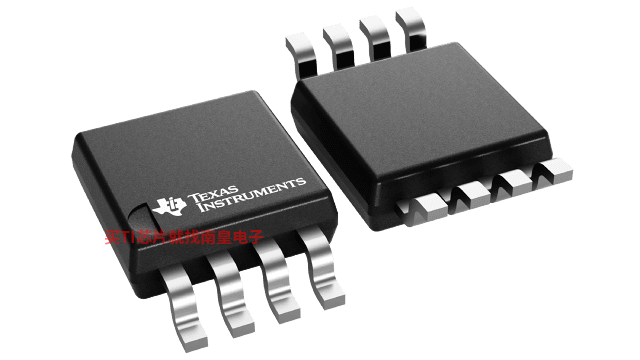

TPA6100A2DGK，工作温度：-40 to 85，封装：VSSOP (DGK)-8，包装数量MPQ：80个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPA6100A2DGK的批量USD价格：.574（1000+）

TPA6100A2DGKR，工作温度：-40 to 85，封装：VSSOP (DGK)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPA6100A2DGKR的批量USD价格：.495（1000+）

TPA6100A2DR，工作温度：-40 to 85，封装：SOIC (D)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPA6100A2DR的批量USD价格：.395（1000+）

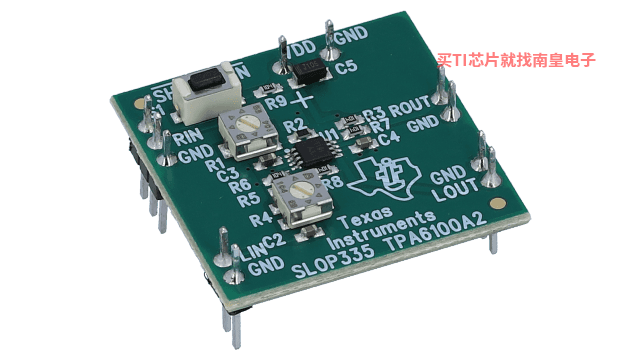

TPA6100A2EVM — TPA6100A2 评估模块 (EVM)

The TPA6100A2 is a stereo headphone amplifier capable of delivering 50mW of continuous RMS power per channel into 16-Ohm speakers. The amplifier's gain is externally set by three resistors per input channel.

PSPICE-FOR-TI — 适用于 TI 设计和模拟工具的 PSpice

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用，包括业内超大的模型库之一，涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库，您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案，然后再进行布局和制造，可缩短产品上市时间并降低开发成本。
