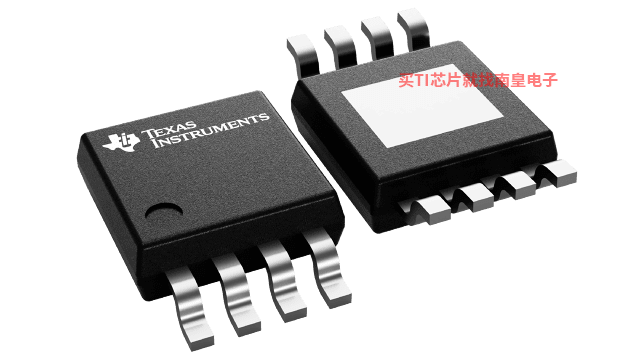

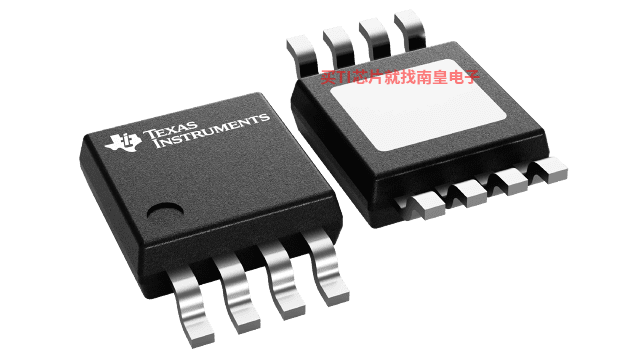

The TPA6110A2 is a stereo audio power amplifier packaged in an 8-pin PowerPAD™ MSOP package capable of delivering 150 mW of continuous RMS power per channel into 16-Ω loads. Amplifier gain is externally configured by means of two resistors per input channel and does not require external compensation for settings of 1 to 10.

THD+N when driving a 16-Ω load from 5 V is 0.03% at 1 kHz, and less than 1% across the audio band of 20 Hz to 20 kHz. For 32-Ω loads, the THD+N is reduced to less than 0.02% at 1 kHz, and is less than 1% across the audio band of 20 Hz to 20 kHz. For 10-kΩ loads, the THD+N performance is 0.005% at 1 kHz, and less than 0.5% across the audio band of 20 Hz to 20 kHz.

• 150 mW Stereo Output
• PC Power Supply Compatible
  • Fully Specified for 3.3 V and 5 V Operation
  • Operation to 2.5 V
• Pop Reduction Circuitry
• Internal Mid-Rail Generation
• Thermal and Short-Circuit Protection
• Surface-Mount Packaging
  • PowerPAD? MSOP
• Pin Compatible With LM4881

PowerPAD Is a trademark of Texas Instruments.

• Output power (W)
• 0.15
• Analog supply (Min) (V)
• 2.5
• Analog supply (Max) (V)
• 5.5
• PSRR (dB)
• 83
• Rating
• Catalog
• Operating temperature range (C)
• -40 to 85
• Headphone channels
• Stereo
• Volume control
• No
• Shutdown current (ISD) (uA)
• 1
• Architecture
• Class-AB
• Iq per channel (Typ) (mA)
• 0.75

TPA6110A2的完整型号有：TPA6110A2DGN、TPA6110A2DGNR，以下是这些产品的关键参数及官网采购报价：

TPA6110A2DGN，工作温度：-40 to 85，封装：HVSSOP (DGN)-8，包装数量MPQ：80个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAUAG，TI官网TPA6110A2DGN的批量USD价格：.524（1000+）

TPA6110A2DGNR，工作温度：-40 to 85，封装：HVSSOP (DGN)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPA6110A2DGNR的批量USD价格：.437（1000+）
