- 制造厂商：TI
- 产品类别：电源管理
- 技术类目：以太网供电 (PoE) IC - 供电设备
- 功能描述：具有传统 UVLO 阈值和自动重试功能的 3 级 PoE PD
- 点击这里打开及下载TPS2377-1的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
These easy-to-use 8-pin integrated circuits contain all of the features needed to develop an IEEE 802.3af-compliant powered device (PD). The TPS2375-1 and TPS2377-1 are second generation PDCs (PD Controllers) featuring a 100-V ratings and true open-drain, power-good function. These devices are auto-retry versions of selected TPS2375 family members. Information on the TPS2375/6/7 devices can be found on the TPS2375/6/7 data sheet (SLVS525A).
In addition to the basic functions of detection, classification, and undervoltage lockout (UVLO), these controllers include an adjustable inrush limiting feature. The TPS2375-1 has 802.3af-compliant UVLO limits, and the TPS2377-1 has legacy UVLO limits.
The TPS2375 family specifications incorporate a voltage offset of 1.5 V between its limits and the IEEE 802.3af specifications to accommodate the required input diode bridges used to make the PD polarity insensitive.
Additional resources can be found on the TI Web site www.ti.com.
- Auto-Retry After Current-Limit Fault
- TPS2375-1: IEEE 802.3af Thresholds
- TPS2377-1: Legacy Thresholds
- Fully Supports IEEE 802.3af Specification
- Integrated 0.58-Ω, 100-V, Low-Side Switch
- 15-kV System Level ESD Capable
- Programmable Inrush Current Control
- Fixed 450-mA Current Limit
- Open-Drain, Power-Good Reporting
- Industrial Temperature Range: -40°C to 85°C

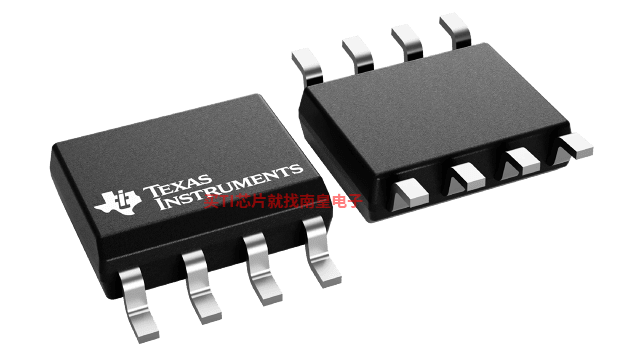

- 8-Pin SOIC and TSSOP Packages
- APPLICATIONS
- VoIP Phones
- WLAN Access Points
- Security Cameras
- Internet Appliances
- POS Terminals
- Vin (Min) (V)
- 0
- Vin (Max) (V)
- 57
- PoE current limit (Min) (mA)
- 405
- PoE inrush limit (Typ) (mA)
- Programmable
- rDS(on) per FET (Typ) (mOhms)
- 580
- PoE standards supported
- 802.3at Type 1 (802.3af)
- PD power level
- 13W
- DC/DC control
- PD Only
- Fault response
- Auto Retry
- Features
- PG, Programmable UVLO, Thermal Shutdown
TPS2377-1的完整型号有：TPS2377D-1、TPS2377DR-1，以下是这些产品的关键参数及官网采购报价：
TPS2377D-1，工作温度：-40 to 85，封装：SOIC (D)-8，包装数量MPQ：75个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPS2377D-1的批量USD价格：1.162（1000+）
TPS2377DR-1，工作温度：-40 to 85，封装：SOIC (D)-8，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPS2377DR-1的批量USD价格：.968（1000+）
