- 制造厂商：TI
- 产品类别：电源管理
- 技术类目：直流/直流开关稳压器 - 降压稳压器
- 功能描述：具有 NVM 和 PMBus 的双通道 6+1/5+2 VR13 D-CAP+ 降压多相控制器
- 点击这里打开及下载TPS53679的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
The TPS53679 is a fully VR13 SVID compliant step-down controller with dual channels, built-in non-volatile memory (NVM), and PMBus™ interface, and is fully compatible with TI NexFET ™power stage. Advanced control features such as D-CAP+™ architecture with undershoot reduction (USR) provide fast transient response, low output capacitance, and good current sharing. The device also provides novel phase interleaving strategy and dynamic phase shedding for efficiency improvement at different loads. Adjustable control of VCORE slew rate and voltage positioning round out the Intel® VR13™ features. In addition, the device supports the PMBus communication interface for reporting the telemetry of voltage, current, power, temperature, and fault conditions to the systems. All programmable parameters can be configured by the PMBus interface and can be stored in NVM as the new default values to minimize the external component count.
The TPS53679 device if offered in a thermally enhanced -pin QFN packaged and is rated to operate from –40°C to 125°C.
- Intel VR13 Serial VID (SVID) Compliant
- Full VR13 Server Feature Set Including Digital Input Power Monitor
- Programmable Loop Compensations
- Configurable with Non-Volatile Memory (NVM) for Low External Component Counts
- Individual Phase Current Calibrations and Reports
- Dynamic Phase Shedding with Programmable Current Threshold for Optimizing Efficiency at Light and Heavy Loads
- Fast Phase-Adding for Undershoot Reduction (USR)
- Backward VR12.0 and VR12.5 Compatible
- 8-Bit DAC with Selectable 5 mV or 10 mV Resolution and Output Ranges from 0.25 V to 1.52V or 0.5 to 2.8125 V for Dual Channels
- Driverless Configuration for Efficient High-Frequency Switching
- Fully Compatible with TI NextFET? Power Stage for High-Density Solutions
- Accurate, Adjustable Voltage Positioning
- Patented AutoBalance? Phase Balancing
- Selectable, 16-level Per-Phase Current Limit
- PMBus? System Interface for Telemetry of Voltage, Current, Power, Temperature, and Fault Conditions
- Dynamic Output Voltage Transitions with Programmable Slew Rates via SVID or PMBus Interface
- Conversion Voltage Range: 4.5 V to 17 V
- Low Quiescent Current
- Vin (Min) (V)
- 4.5
- Vin (Max) (V)
- 17
- Vout (Min) (V)
- 0.25
- Vout (Max) (V)
- 2.8125
- Iout (Max) (A)
- 240
- Iq (Typ) (uA)
- 13000
- Switching frequency (Min) (kHz)
- 300
- Switching frequency (Max) (kHz)
- 1000
- Features
- Adjustable Current Limit, Dynamic Voltage Scaling, Enable, I2C, Light Load Efficiency, Multiple Outputs, PMBus, Phase Interleaving, Power Good, Pre-Bias Start-Up, Remote Sense, SVID, Synchronous Rectification, UVLO Adjustable, Voltage Margining
- Regulated outputs (#)
- 2
- Number of phases
- 6+1, 5+2, 7
- Rating
- Catalog
TPS53679的完整型号有：TPS53679RSBR、TPS53679RSBT，以下是这些产品的关键参数及官网采购报价：

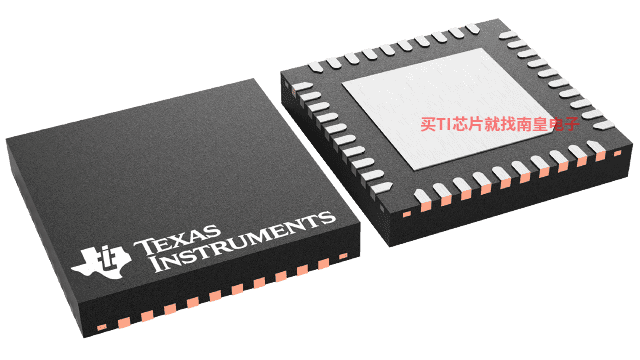

TPS53679RSBR，工作温度：-40 to 125，封装：WQFN (RSB)-40，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAUAG，TI官网TPS53679RSBR的批量USD价格：4.84（1000+）
TPS53679RSBT，工作温度：-40 to 125，封装：WQFN (RSB)-40，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAUAG，TI官网TPS53679RSBT的批量USD价格：5.808（1000+）
FUSION_DIGITAL_POWER_DESIGNER — Digital Power 软件
Fusion Digital Power图形用户界面 (GUI) 软件用于配置和监视精选的德州仪器 (TI) 数字电源控制器以及序列发生器/运行状况监视器。此应用程序使用 PMBus 协议通过 TI USB 适配器经由串行总线与器件进行通信。PSPICE-FOR-TI — 适用于 TI 设计和模拟工具的 PSpice
PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用，包括业内超大的模型库之一，涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。借助?PSpice for TI 的设计和仿真环境及其内置的模型库，您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案，然后再进行布局和制造，可缩短产品上市时间并降低开发成本。
在?PSpice for TI 设计和仿真工具中，您可以搜索 TI (...)
TIDA-01367 — Cavium CN99xx Thunder X2 CPU PMBus VDD/VDD SRAM 核心功耗设计
TIDA-01367 参考设计采用 TPS53679 多相控制器和 CSD95490Q5MC 智能功率级，可实现适合为联网专用集成电路 (ASIC) 供电的高性能设计。该控制器的双路输出分别面向具有六相设计的 240A、0.8V 内核轨和 20A、0.85V 辅助轨。智能功率级和集成 PMBus 便于轻松设置输出电压和遥测关键设计参数。此参考设计允许对电源进行配置、输出电压调整和补偿调整，并可监控输入和输出电压、电流、功率和温度。
TI 的 Fusion Digital Power 设计器可用于系统编程、监控、验证和特性描述。
PMP20489 — 高密度 12V 输入、0.8V 200A 和 3.3V 75A POL 参考设计
基于 TPS53679 的此参考设计提供了单个 IC 来控制两个多相输出，主输出上有多达 6 相，而通道 2 上有多达两相；总共最多七相。多相还有助于消除输出纹波以及在给定开关频率下进行有效的更高带宽控制。PMP20489 参考设计展示了一种大电流五相 + 两相应用以及两个板载动态负载。测试报告重点介绍了热性能、动态响应和效率。
