- 制造厂商：TI
- 产品类别：电源管理
- 技术类目：直流/直流开关稳压器 - 降压稳压器
- 功能描述：具有 3.3V 输出的 3V 至 6V 输入、6A SWIFT 同步降压转换器
- 点击这里打开及下载TPS54616的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格

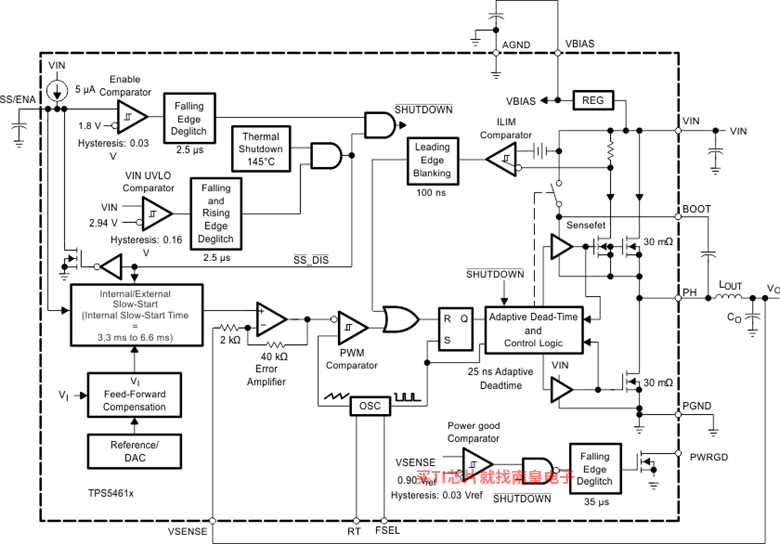

The SWIFT™ family of dc/dc regulators, the TPS54611, TPS54612, TPS54613, TPS54614, TPS54615 and TPS54616 low-input voltage high-output current synchronous-buck PWM converters integrate all required active components. Included on the substrate are true, high-performance, voltage error amplifiers that provide high performance under transient conditions; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a powergood output useful for processor/logic reset, fault signaling, and supply sequencing.

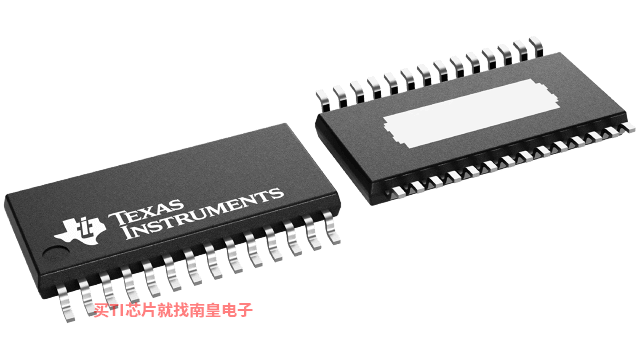

The TPS5461x devices are available in a thermally enhanced 28-pin TSSOP (PWP) PowerPAD™ package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT? designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
- 30-mΩ, 12-A Peak MOSFET Switches for High Efficiency at 6-A Continuous Output Source and Sink
- 0.9-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V Fixed Output Voltage Devices With 1.0% Initial Accuracy
- Internally Compensated for Easy Use and Minimal Component Count
- Fast Transient Response
- Wide PWM Frequency – Fixed 350 kHz, 550 kHz or Adjustable 280 kHz to 700 kHz
- Load Protected by Peak Current Limit and Thermal Shutdown
- Integrated Solution Reduces Board Area and Total Cost
- Vin (Min) (V)
- 4
- Vin (Max) (V)
- 6
- Vout (Min) (V)
- 3.3
- Vout (Max) (V)
- 3.3
- Iout (Max) (A)
- 6
- Iq (Typ) (uA)
- 11000
- Switching frequency (Min) (kHz)
- 280
- Switching frequency (Max) (kHz)
- 700
- Features
- Enable, Power Good, Synchronous Rectification
- Rating
- Catalog
- Regulated outputs (#)
- 1
- Control mode
- Voltage Mode
- Duty cycle (Max) (%)
- 90
TPS54616的完整型号有：TPS54616PWP、TPS54616PWPR，以下是这些产品的关键参数及官网采购报价：
TPS54616PWP，工作温度：-40 to 125，封装：HTSSOP (PWP)-28，包装数量MPQ：50个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TPS54616PWP的批量USD价格：1.626（1000+）
TPS54616PWPR，工作温度：-40 to 125，封装：HTSSOP (PWP)-28，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TPS54616PWPR的批量USD价格：1.355（1000+）
