- 制造厂商:TI
- 产品类别:电源管理
- 技术类目:直流/直流开关稳压器 - 降压稳压器
- 功能描述:采用 3x3mm QFN 小型封装的 2.25MHz 600mA/1000mA 双路降压转换器
- 点击这里打开及下载TPS62421的技术文档资料
- TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格

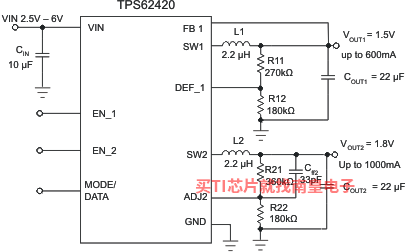

The TPS6242x device is a synchronous dual step-down DCDC converter. It provides two independent output voltage rails powered by 1-cell Li-Ion or 3-cell NiMH/NiCD batteries. The device is also suitable to operate from a standard 3.3-V or 5-V voltage rail.
With an input voltage range of 2.5 V to 6 V, the TPS6242x is ideal for battery-powered portable applications like smart phones, PDAs, and other portable equipment.
With the EasyScale™ serial interface the output voltages can be modified during operation. It therefore supports dynamic voltage scaling for low power DSP and processors.
The TPS6242x operates at 2.25-MHz fixed switching frequency and enter the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. For low-noise applications the devices can be forced into fixed-frequency PWM mode by pulling the MODE/DATA pin High. In the shutdown mode, the current consumption is reduced to 1.2 µA. The device allows the use of small inductors and capacitors to achieve a small solution size.

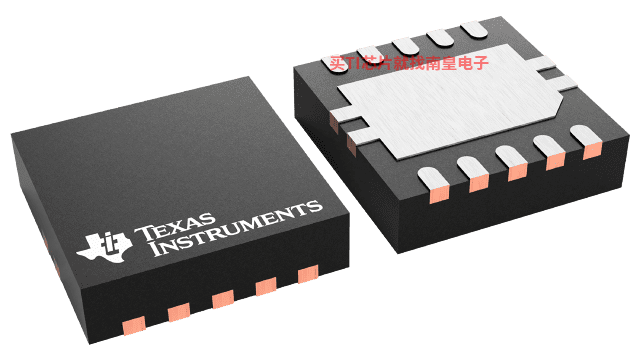

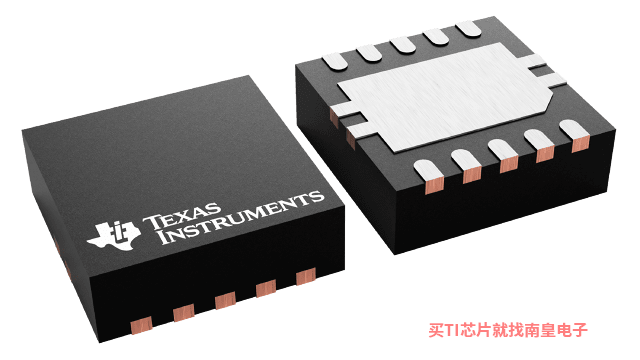

The TPS6242x operates over a free-air temperature range of 40°C to 85°C. It is available in a 10-pin leadless package (3 mm × 3 mm VSON)
- High Efficiency up to 95%
- VIN Range from 2.5 V to 6 V
- 2.25-MHz Fixed Frequency Operation
- Output Current 600 mA and 1000 mA
- Adjustable Output Voltage from 0.6 V to VIN
- Pin Selectable Output Voltage Supports Simple Dynamic VoltageScaling
- Optional EasyScale One-Pin Serial Interface for Dynamic Output Voltage Adjustment
- Power-Save Mode at Light Load Currents
- 180° Out of Phase Operation
- Output Voltage Accuracy in PWM Mode ±1%
- Typical 32-μA Quiescent Current for both Converters
- 100% Duty Cycle for Lowest Dropout
- Available in a 10-Pin VSON (3 mm × 3 mm)
- Vin (Min) (V)
- 2.5
- Vin (Max) (V)
- 6
- Vout (Min) (V)
- 1.2
- Vout (Max) (V)
- 1.8
- Iout (Max) (A)
- 0.6
- Iq (Typ) (uA)
- 32
- Switching frequency (Min) (kHz)
- 2000
- Switching frequency (Max) (kHz)
- 2500
- Features
- Enable, Forced PWM, Light Load Efficiency, Synchronous Rectification, Adaptive/Dynamic Voltage Scaling
- Rating
- Catalog
- Regulated outputs (#)
- 2
- Control mode
- Voltage Mode
- Duty cycle (Max) (%)
- 100
TPS62421的完整型号有:TPS62421DRCR、TPS62421DRCT,以下是这些产品的关键参数及官网采购报价:
TPS62421DRCR,工作温度:-40 to 85,封装:VSON (DRC)-10,包装数量MPQ:3000个,MSL 等级/回流焊峰值温度:Level-2-260C-1 YEAR,引脚镀层/焊球材料:NIPDAU,TI官网TPS62421DRCR的批量USD价格:.658(1000+)
TPS62421DRCT,工作温度:-40 to 85,封装:VSON (DRC)-10,包装数量MPQ:250个,MSL 等级/回流焊峰值温度:Level-2-260C-1 YEAR,引脚镀层/焊球材料:NIPDAU,TI官网TPS62421DRCT的批量USD价格:.79(1000+)
