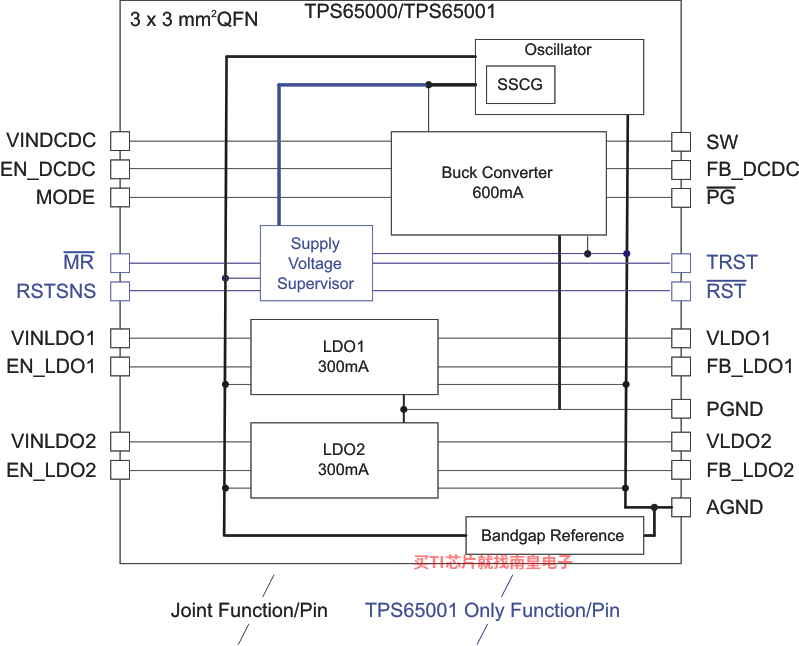

The TPS6500xx devices are single-chip power management (PWM) ICs for portable applications. Both devices combine a single step-down converter with two low-dropout (LDO) regulators. The step-down converter enters a low-power mode at light load for maximum efficiency across the widest possible range of load currents. For low-noise applications, the devices can be forced into fixed-frequency PWM through a pin. The step-down converter is small because of its small inductor and capacitors. The step-down converter has power good status output for sequencing. The LDOs can supply 300 mA and operate with an input voltage range from 1.6 V to 6 V. A step-down converter or main battery can power the LDOs directly. The step-down converter and the LDOs have separate voltage inputs that enable maximum design and sequencing flexibility.

The TPS65001 extends functionality by adding a supply voltage supervisor (SVS). To maximize the flexibility of the SVS, the reset voltage is set with two external resistors and the reset time is set by a small external capacitor. For external control, the SVS can use its active-low manual reset input to connect to a push button.

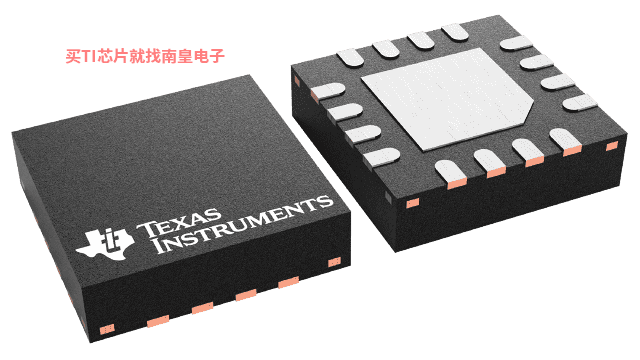

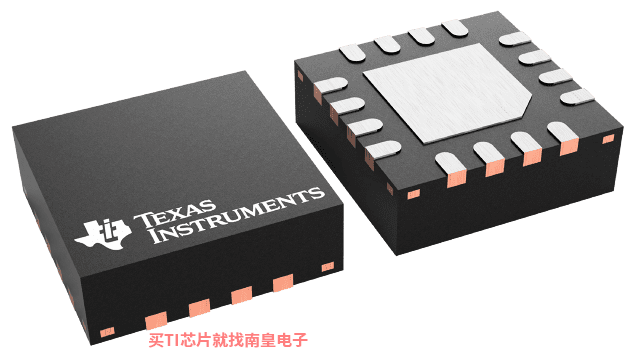

The TPS65000 is available in a 16-pin leadless package (3 mm × 3 mm QFN). The TPS65001 is available in a 20-pin leadless package (3 mm × 3 mm QFN).

• Step-Down Converters:
  • VIN Range From 2.3 V to 6 V
  • Spread Spectrum Clock (SSC) Generation for Reduced EMI
  • 2.25-MHz Fixed Frequency Operation
  • 600-mA or 1-A (TPS650061) Output Current
• Low Dropouts (LDOs):
  • VIN Range From 1.6 V to 6 V
  • Adjustable Output Voltage
  • Up to 300-mA Output Current
  • Separate Power Inputs and Enables
• Supply Voltage Supervisor (TPS65001)
  • Manual Reset Input for Push Button
  • Adjustable Reset Time
  • Adjustable Reset Voltage
• 3-mm × 3-mm 16-Pin WQFN (TPS65000)
• 3-mm × 3-mm 20-Pin WQFN (TPS65001)
• APPLICATIONS
  • Points-of-Load
  • Embedded Processor Power
  • Cell Phones
  • Smart Phones
  • PDAs
  • Pocket PCs
  • Portable Media Players

All other trademarks are the property of their respective owners

• Regulated outputs (#)
• 3
• Vin (Min) (V)
• 2.3
• Vin (Max) (V)
• 6
• Iout (Max) (A)
• 0.6
• Rating
• Catalog
• LDO
• 2
• Iq (Typ) (mA)
• 0.073
• Features
• Enable Pin, Power Good, Spread-Spectrum Clock (SSC) Generation
• Processor name
• C2000
• Processor supplier
• Texas Instruments
• Shutdown current (ISD) (Typ) (uA)
• 0.16
• Switching frequency (Typ) (kHz)
• 2250
• Configurability
• Factory programmable, Hardware configurable

TPS65000的完整型号有：TPS65000RTER、TPS65000RTET，以下是这些产品的关键参数及官网采购报价：

TPS65000RTER，工作温度：-40 to 85，封装：WQFN (RTE)-16，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TPS65000RTER的批量USD价格：.659（1000+）

TPS65000RTET，工作温度：-40 to 85，封装：WQFN (RTE)-16，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TPS65000RTET的批量USD价格：.791（1000+）

TPS65000EVM-469 — TPS65000EVM-469 评估模块

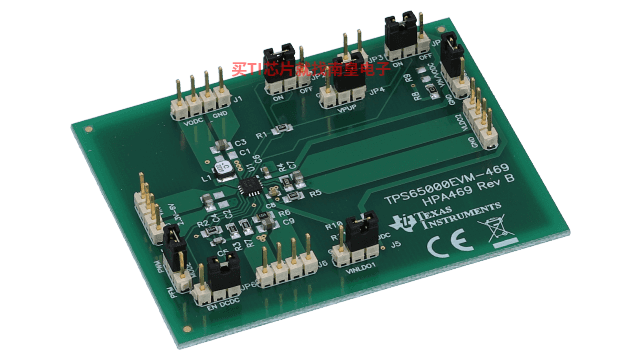

The TPS65000EVM-469 facilitates evalvation of the TPS65000 power management IC for portable device applications. The TPS65000 contains one DC/DC switcher, 2 low-dropout (LDO) regulators, and a Spread Spectrum Clock (SSC) to supress EMI noise. It is powered from a 2V to 6V source.
