The TPS65020 device is an integrated power management IC for applications powered by one Li-Ion or Li-Polymer cell, and which requires multiple power rails.

The TPS65020 device provides three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O, and memory rails in a processor-based system. All three step-down converters enter a low-power mode at light load for maximum efficiency across the widest possible range of load currents.

The TPS65020 device also integrates two 200-mA LDO voltage regulators, which are enabled with an external input pin. Each LDO operates with an input voltage range from 1.5 V to 6.5 V, thus allowing them to be supplied from one of the step-down converters or directly from the main battery. The two 200-mA LDO voltage regulators are intended for use with the SDRAM and PLL power supply in an Intel PXA270-based system. The serial interface is used for dynamic voltage scaling of the core voltage, masking interrupts, or for disabling or enabling and setting the LDO output voltages. The interface is compatible with both the fast and standard mode I²C specifications, allowing transfers at up to 400 kHz.

The TPS65020 incorporates a push-button debounced input and latched output for implementation of a push-button turnon feature, typically required in smart phones or wireless PDAs.

• 1.2-A, 97% Efficient Step-Down Converter for System Voltage (VDCDC1)
• 1-A, Up to 95% Efficient Step-Down Converter for Memory Voltage (VDCDC2)
• 800-mA, 90% Efficient Step-Down Converter for Processor Core (VDCDC3)
• 20-mA LDO and Switch for Real-Time Clock (VRTC)
• 2 × 200-mA LDO for SRAM and PLL
• Dynamic Voltage Management for Processor Core
• Externally Adjustable Reset Delay Time
• Battery Backup Functionality
• Separate Enable Pins for Inductive Converters
• I2C-Compatible Serial Interface
• 85-μA Quiescent Current
• Low Ripple PFM Mode
• Thermal Shutdown Protection
• Push-Button I/O

• Regulated outputs (#)
• 6
• Vin (Min) (V)
• 2.5
• Vin (Max) (V)
• 6
• Iout (Max) (A)
• 1.2
• Rating
• Catalog
• LDO
• 3
• Iq (Typ) (mA)
• 0.085
• Features
• Comm Control, Power Good, Power Sequencing
• Processor name
• PXA
• Processor supplier
• Marvell
• Shutdown current (ISD) (Typ) (uA)
• 23
• Switching frequency (Typ) (kHz)
• 1500
• Configurability
• Hardware configurable, Software configurable

TPS65020的完整型号有：TPS65020RHAR、TPS65020RHAT，以下是这些产品的关键参数及官网采购报价：

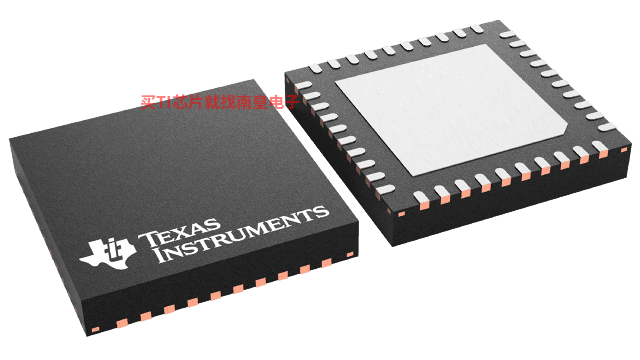

TPS65020RHAR，工作温度：-40 to 85，封装：VQFN (RHA)-40，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：NIPDAU，TI官网TPS65020RHAR的批量USD价格：3.241（1000+）

TPS65020RHAT，工作温度：-40 to 85，封装：VQFN (RHA)-40，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：NIPDAU，TI官网TPS65020RHAT的批量USD价格：3.889（1000+）

TPS65020EVM-110 — TPS65020 评估模块

The TPS65020EVM-110 is an evaluation tool for the TPS65020 multi-output Power Management IC. It features multiple DC/DC step-down Converters, several LDOs, an I2C interface and is designed to supply processors like the Intel Xscale Bulverde PXA27x series, TI OMAP16xx and OMAP17xx as well as other (...)

IPG-UI — IPG-UI EVM GUI

此 IPG-UI GUI 可用于配置多个 PMIC 器件，评估这些器件的功能和性能。此 GUI 是使用基于网络的技术构建的，支持通过 USB2ANY 适配器板与 EVM 硬件互动。提供 USB2ANY 浏览器，用于将 USB2ANY 适配器板上的固件更新为要求的 2.7.0.0 版。
