- 制造厂商：TI
- 产品类别：电源管理
- 技术类目：LED 驱动器 - 照明 LED 驱动器
- 功能描述：具有 2.2A 输出电流的集成式闪光灯充电器和 IGBT 驱动器
- 点击这里打开及下载TPS65561的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
This device offers a complete solution for charging a photo flash capacitor from a battery input, and subsequently discharging the capacitor to a xenon flash tube. The device has an integrated voltage reference, power switch, IGBT driver, and control logic blocks for capacitor charging applications and driving IGBT applications. Compared with discrete solutions, this device reduces the component count, shrinks the solution size, and eases designs for xenon tube applications. Additional advantages are a fast charging time and high efficiency from an optimized PWM control algorithm.
Other provisions of the device includes sensing the output voltage from the primary side, programmable peak current, thermal shutdown, an output pin for charge completion, and input pins for charge enable and flash enable.
- Highly Integrated Solution to Reduce Components
- Integrated Voltage Reference
- Integrated 50-V Power Switch,
- Integrated IGBT Driver
- High Efficiency
- Programmable Peak Current: 1.1 A to 2.2 A
- Input Battery Voltage of 1.6 V to 12 V
- Optimized Control Loop for Fast Charge Time
- Output Voltage Feedback From Primary Side

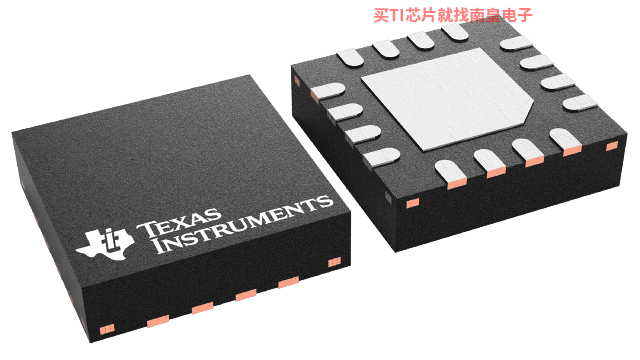

- 16-Pin QFN Package
- Protection
- MAX On Time
- MAX Off Time
- Overcurrent Shutdown to Monitor VDS at the SW pin (OVDS)
- Thermal Monitor
- APPLICATIONS
- Digital Still Cameras
- Optical Film Cameras
PowerPAD is a trademark of Texas Instruments.
- Input voltage (type)
- Linear
- Topology
- Flyback
- Vin (Min) (V)
- 1.6
- Vin (Max) (V)
- 12
- Iout (Max) (A)
- 2.2
- Iq (Typ) (mA)
- 5
- Features
- LED Thermal Monitor
- Operating temperature range (C)
- -35 to 85, -30 to 85
TPS65561的完整型号有：TPS65561RGTR、TPS65561RGTT，以下是这些产品的关键参数及官网采购报价：
TPS65561RGTR，工作温度：-35 to 85，封装：VQFN (RGT)-16，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TPS65561RGTR的批量USD价格：.826（1000+）
TPS65561RGTT，工作温度：-30 to 85，封装：VQFN (RGT)-16，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网TPS65561RGTT的批量USD价格：.976（1000+）
