The TPS7510x linear low dropout (LDO) matching LED current source is optimized for low-power keypad and navigation pad LED backlighting applications. The device provides a constant current to up to four unmatched LEDs organized in two banks of two LEDs each in a common-cathode topology. Without an external resistor, the current source defaults to a factory-programmable, preset current level with ±0.5% accuracy (typical). An optional external resistor can be used to set initial brightness to user-programmable values with higher accuracy. Brightness can be varied from off to full brightness by inputting a pulse width modulation (PWM) signal on each enable pin (ENx, where x indicates LED bank A or B). Each bank has independent enable and brightness control, but current matching is done to all four channels concurrently. The input supply range is ideally suited for single-cell Li-Ion battery supplies and the TPS7510x can provide up to 25 mA per LED.

No internal switching signals are used, eliminating troublesome electromagnetic interference (EMI). The TPS7510x is offered in an ultra-small, 9-ball, 0.4-mm ball-pitch wafer chip-scale package (WCSP) and a 2.50-mm × 2.50-mm, 10-pin WSON package, yielding a very compact total solution size ideal for mobile handsets and portable backlighting applications. The device is fully specified over T_J = –40°C to +85°C.

• Regulated Output Current with 2% LED-to-LED Matching
• Drives Up to Four LEDs at 25 mA Each in a Common Cathode Topology
• 28-mV Typical Dropout Voltage Extends Usable Supply Range in Li-Ion Battery Applications
• Brightness Control Using PWM Signals
• Two 2-LED Banks With Independent Enable and PWM Brightness Control per Bank
• No Internal Switching Signals—Eliminates EMI
• Default LED Current Eliminates External Components
  • Default Values from 3 mA to 10 mA (in 1-mA Increments) Available Using Innovative Factory EEPROM Programming
  • Optional External Resistor can be Used for High-Accuracy, User-Programmable Current
• Over current and Over temperature Protection

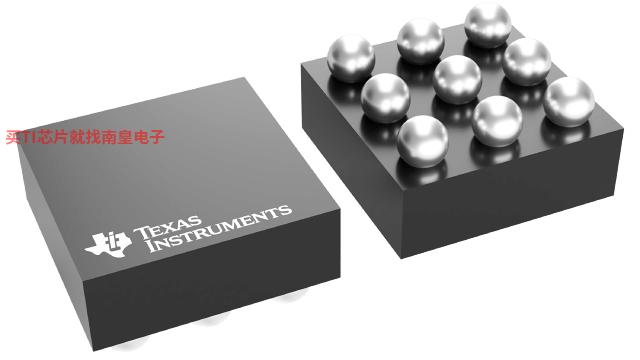

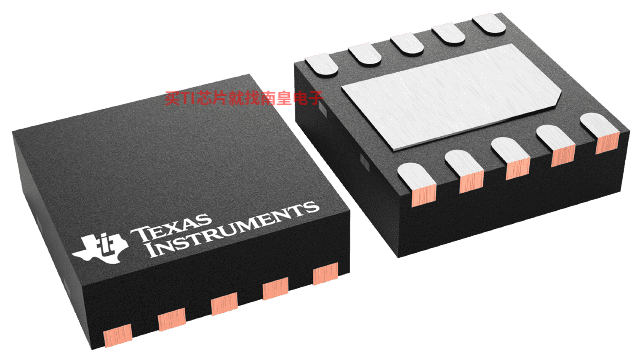

• Available in Wafer Chip-Scale Package or 2.50-mm × 2.50-mm WSON-10

• Number of channels (#)
• 4
• LED current per channel (mA)
• 25
• LED configuration
• Parallel
• Program memory
• No
• Programmable ramp control
• No
• Vin (Min) (V)
• 2.7
• Vin (Max) (V)
• 5.5
• Iout (Max) (A)
• 0.025
• Features
• Enable/shutdown, GPIO interface, PWM control, Thermal shutdown
• Iq (Typ) (mA)
• 0.18
• Shutdown current (Typ) (uA)
• 0.1
• Operating temperature range (C)
• -40 to 85
• Rating
• Catalog

TPS75105的完整型号有：TPS75105DSKR、TPS75105DSKT、TPS75105YFFR、TPS75105YFFT，以下是这些产品的关键参数及官网采购报价：

TPS75105DSKR，工作温度：-40 to 85，封装：SON (DSK)-10，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPS75105DSKR的批量USD价格：.484（1000+）

TPS75105DSKT，工作温度：-40 to 85，封装：SON (DSK)-10，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TPS75105DSKT的批量USD价格：.581（1000+）

TPS75105YFFR，工作温度：-40 to 85，封装：DSBGA (YFF)-9，包装数量MPQ：3000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SNAGCU，TI官网TPS75105YFFR的批量USD价格：.484（1000+）

TPS75105YFFT，工作温度：-40 to 85，封装：DSBGA (YFF)-9，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：SNAGCU，TI官网TPS75105YFFT的批量USD价格：.581（1000+）

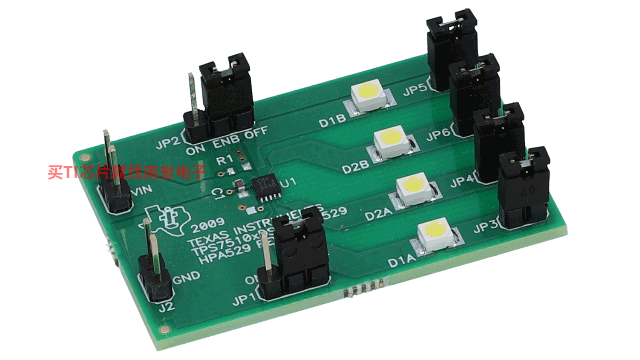

TPS75105DSKEVM-529 — TPS75105DSKEVM-529 评估模块

TPS75105DSKEVM-529 评估模块是一块完全组装且经过测试的电路板，用于评估 TPS75105 低压降 2 组 LED 驱动器。TPS75105DSKEVM-529 可以驱动 4 个 LED（每个 LED 为 5mA 恒流），并由 2.7V 至 5.5V 电源供电。

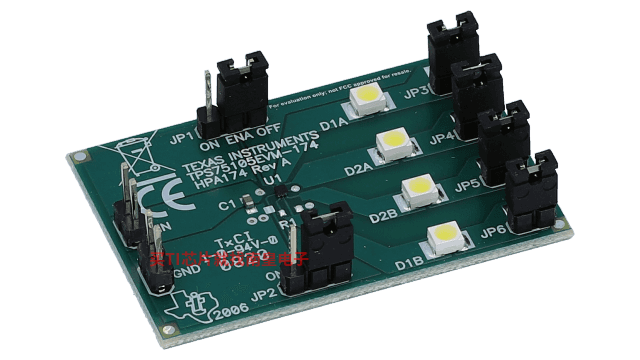

TPS75105EVM-174 — TPS75105EVM-174 Evaluation Module

The TPS75105EVM-174 evaluation module (EVM) helps designers evaluate the operation and performance of the TPS75105 low-dropout linear regulator (LDO), two-bank LED driver withPWM dimming.
