The TRS3227 consists of one line driver, one line receiver, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. This device operates at data-signaling rates of 1 Mbit/s in normal operating mode and a maximum of 30-V/µs driver output slew rate. This device also features a logic-level output (READY) that asserts when the charge pump is regulating and the device is ready to begin transmitting.

The TRS3227 achieves a 1-µA supply current using the auto-powerdown plus feature. This device automatically enters a low-power powerdown mode when the RS-232 cable is disconnected or the drivers of the connected peripherals are inactive for more than 30 s. It turns on again when it senses a valid transition at any driver or receiver input. Auto-powerdown saves power without changes to the existing BIOS or operating system.

The TRS3227C is characterized for operation from 0°C to 70°C. The TRS3227I is characterized for operation from -40°C to 85°C.

• Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
• Operates With 3-V to 5.5-V VCC Supply
• Operates at Least 1 Mbit/s
• Low Standby Current . . . 1 μA Typ
• External Capacitors . . . 4 × 0.1 μF
• Accepts 5-V Logic Input With 3.3-V Supply
• Designed to Be Interchangeable With industry Standard '3227 Devices
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection for RS-232 I/O Pins
  • ±15 kV - Human-Body Model
  • ±8 kV - IEC61000-4-2, Contact Discharge
  • ±8 kV - IEC61000-4-2, Air-Gap Discharge
• Auto-Powerdown Plus Feature Automatically Disables Drivers for Power Savings

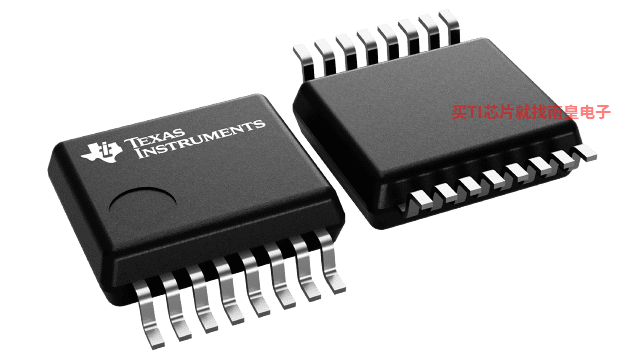

• Packaged in Plastic Shrink Small-Outline Package
• APPLICATIONS
  • Battery-Powered, Hand-Held, and Portable Equipment
  • PDAs and Palmtop PCs
  • Notebooks, Sub-Notebooks, and Laptops
  • Digital Cameras
  • Mobile Phones and Wireless Devices

• Drivers per package
• 1
• Receivers per package
• 1
• Logic voltage (Min) (V)
• 3.3
• Data rate (Max) (kbps)
• 1000
• Main supply voltage (Nom) (V)
• 3.3, 5
• Features
• Auto-Powerdown Plus
• ESD HBM (kV)
• 15
• Rating
• Catalog
• Operating temperature range (C)
• -40 to 85, 0 to 70
• Vout (Typ) (V)
• 5.4

TRS3227的完整型号有：TRS3227CDBR、TRS3227IDB、TRS3227IDBR，以下是这些产品的关键参数及官网采购报价：

TRS3227CDBR，工作温度：0 to 70，封装：SSOP (DB)-16，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TRS3227CDBR的批量USD价格：.564（1000+）

TRS3227IDB，工作温度：-40 to 85，封装：SSOP (DB)-16，包装数量MPQ：80个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TRS3227IDB的批量USD价格：.846（1000+）

TRS3227IDBR，工作温度：-40 to 85，封装：SSOP (DB)-16，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网TRS3227IDBR的批量USD价格：.733（1000+）
