- 制造厂商:TI
- 产品类别:开关与多路复用器
- 技术类目:模拟开关和多路复用器
- 功能描述:5V、1:1 (SPST)、单通道通用模拟开关(低电平有效)
- 点击这里打开及下载TS5A4595的技术文档资料
- TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
The TS5A4595 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.
- Low ON-State Resistance (8 )
- ON-State Resistance Flatness (1.5 )
- Control Inputs Are 5.5-V Tolerant
- Low Charge Injection (5 pC Max)
- 450-MHz -3-dB Bandwidth at 25°C
- Low Total Harmonic Distortion (THD) (0.04%)
- 2-V to 5.5-V Single-Supply Operation
- -82-dB OFF Isolation at 1 MHz
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- 0.5-nA Max OFF Leakage
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
- TTL/CMOS-Logic Compatible
- Applications
- Sample-and-Hold Circuits
- Battery-Powered Equipment (Cellular Phones, PDAs)
- Audio and Video Signal Routing
- Communication Circuits
- PCMCIA Cards
- Configuration
- 1:1 SPST
- Number of channels (#)
- 1
- Power supply voltage - single (V)
- 2.5, 3.3, 5
- Protocols
- Analog
- Ron (Typ) (Ohms)
- 5
- CON (Typ) (pF)
- 13
- ON-state leakage current (Max) (μA)
- 0.01
- Bandwidth (MHz)
- 450
- Operating temperature range (C)
- -40 to 85
- Input/output continuous current (Max) (mA)
- 20
- Rating
- Catalog
- Supply current (Typ) (uA)
- 0.01
TS5A4595的完整型号有:TS5A4595DBVR、TS5A4595DCKR,以下是这些产品的关键参数及官网采购报价:

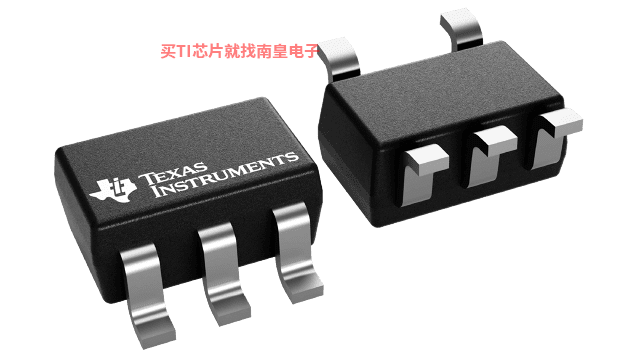

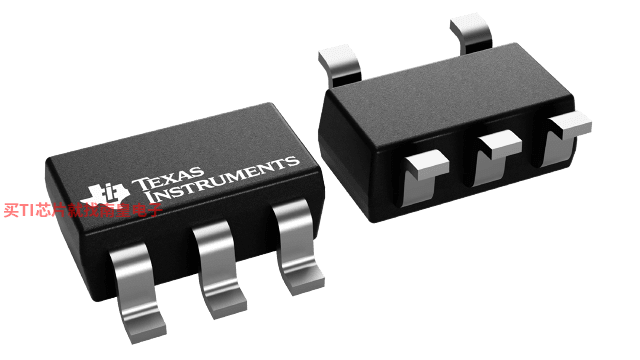

TS5A4595DBVR,工作温度:-40 to 85,封装:SOT-23 (DBV)-5,包装数量MPQ:3000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网TS5A4595DBVR的批量USD价格:.102(1000+)
TS5A4595DCKR,工作温度:-40 to 85,封装:SC70 (DCK)-5,包装数量MPQ:3000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网TS5A4595DCKR的批量USD价格:.102(1000+)

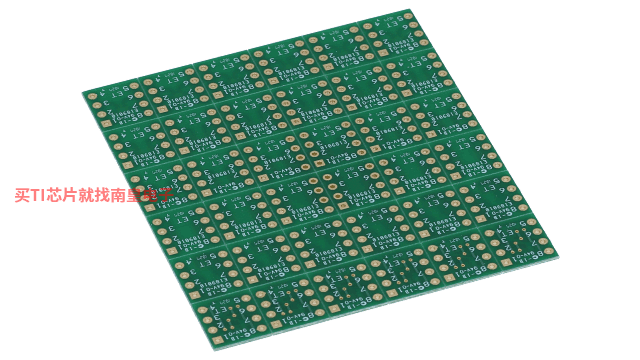

DIP-ADAPTER-EVM — DIP 适配器评估模块
借助 DIP-Adapter-EVM 加快运算放大器的原型设计和测试,该 EVM 有助于快速轻松地连接小型表面贴装 IC 并且价格低廉。您可以使用随附的 Samtec 端子板连接任何受支持的运算放大器,或者将这些端子板直接连接至现有电路。
DIP-Adapter-EVM 套件支持六种常用的业界通用封装,包括:
- D 和 U (SOIC-8)
- PW (TSSOP-8)
- DGK(MSOP-8、VSSOP-8)
- DBV(SOT23-6、SOT23-5 和 SOT23-3)
- DCK(SC70-6 和 SC70-5)
- DRL (SOT563-6)
