- 制造厂商：TI
- 产品类别：电源管理
- 技术类目：栅极驱动器 - 低侧驱动器
- 功能描述：具有单个公共电流感应的数字控制兼容双低侧 +/- 4A MOSFET 驱动器
- 点击这里打开及下载UCD7201的技术文档资料
- TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格
The UCD7201 is a member of the UCD7K family of digital control compatible drivers for applications utilizing digital control techniques or applications requiring fast local peak current limit protection.

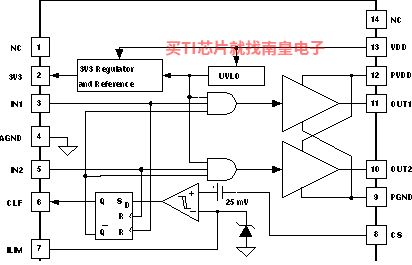

The UCD7201 includes dual low-side ±4-A high- current MOSFET gate drivers. It allows the digital power controllers such as UCD9110 or UCD9501 to interface to the power stage in double ended topologies. It provides a cycle-by-cycle current limit function for both driver channels, a programmable threshold and a digital output current limit flag which can be monitored by the host controller. With a fast cycle-by-cycle current limit protection, the driver can turn off the power stage in the event of an overcurrent condition.
- Adjustable Current Limit Protection
- 3.3-V, 10-mA Internal Regulator
- DSP/μC Compatible Inputs
- Dual ±4-A TrueDrive? High Current Drivers
- 10-ns Typical Rise and Fall Times with 2.2-nF Loads
- 20-ns Input-to-Output Propagation Delay
- 25-ns Current Sense-to-Output Propagation Delay
- Programmable Current Limit Threshold
- Digital Output Current Limit Flag
- 4.5-V to 15-V Supply Voltage Range
- Rated from –40°C to 105°C
- Number of channels (#)
- 2
- Power switch
- MOSFET, IGBT
- Peak output current (A)
- 4
- Input VCC (Min) (V)
- 4.5
- Input VCC (Max) (V)
- 15
- Features
- Programmable common current sense
- Operating temperature range (C)
- -40 to 105
- Rise time (ns)
- 10
- Fall time (ns)
- 10
- Prop delay (ns)
- 20
- Input threshold
- CMOS, TTL
- Channel input logic
- CMOS, TTL
- Input negative voltage (V)
- 0
- Rating
- Catalog
- Undervoltage lockout (Typ)
- 4.5
- Driver configuration
- Dual, Uncommitted Non-Inverting
UCD7201的完整型号有：UCD7201PWP、UCD7201PWPR，以下是这些产品的关键参数及官网采购报价：

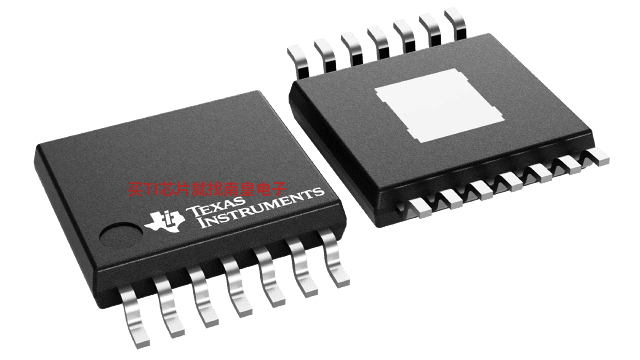

UCD7201PWP，工作温度：-40 to 105，封装：HTSSOP (PWP)-14，包装数量MPQ：90个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网UCD7201PWP的批量USD价格：1.76（1000+）
UCD7201PWPR，工作温度：-40 to 105，封装：HTSSOP (PWP)-14，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-2-260C-1 YEAR，引脚镀层/焊球材料：NIPDAU，TI官网UCD7201PWPR的批量USD价格：1.467（1000+）
