The UCD7242 is a complete power system ready to drive two independent buck power supplies. High side MOSFETs, low side MOSFETs, drivers, current sensing circuitry and necessary protection functions are all integrated into one monolithic solution to facilitate minimum size and maximum efficiency. Driver circuits provide high charge and discharge current for the high-side NMOS switch and the low-side NMOS synchronous rectifier in a synchronous buck circuit. The MOSFET gates are driven to +6.25 V by an internally regulated V_GG supply. The internal V_GG regulator can be disabled to permit the user to supply an independent gate drive voltage. This flexibility allows a wide power conversion input voltage range of 2.2V to 18V. Internal under voltage lockout (UVLO) logic ensures V_GG is good before allowing chip operation.

The synchronous rectifier enable (SRE) pin controls whether or not the low-side MOSFET is turned on when the PWM signal is low. When SRE is high the part operates in continuous conduction mode for all loads. In this mode the drive logic block uses the PWM signal to control both the high-side and low-side gate drive signals. Dead time is also optimized to prevent cross conduction. When SRE is low, the part operates in discontinuous conduction mode at light loads. In this mode the low-side MOSFET is always held off.

On-board comparators monitor the current through the high side switch to safeguard the power stage from sudden high current loads. Blanking delay is set for the high side comparator to avoid false reports coincident with switching edge noise. In the event of an over-current fault, the high-side FET is turned off and the Fault Flag (FLT) is asserted to alert the controller.

MOSFET current is measured and monitored by a precision integrated current sense element. This method provides an accuracy of ±5% over most of the load range. The amplified signal is available for use by the controller on the I_MON pin.

An on-chip temperature sense converts the die temperature to a voltage at the T_MON pin for the controller’s use. If the die temperature exceeds 170°C, the temperature sensor initiates a thermal shutdown that halts output switching and sets the FLT flag. Normal operation resumes when the die temperature falls below the thermal hysteresis band.

• Fully Integrated Power Switches With Drivers for Dual Synchronous Buck Converters
• Full Compatibility With TI Fusion Digital Power Supply Controllers, Such as the UCD92xx Family
• Wide Input Voltage Range: 4.75 V to 18 V Operational Down to 2.2 V Input With an External Bias Supply
• Up to 10A Output Current per Channel
• Operational to 2 MHz Switching Frequency
• High Side Current Limit With Current Limit Flag
• Onboard Regulated 6 V Driver Supply From VIN
• Thermal Protection
• Temperature Sense Output – Voltage Proportional to Chip Temperature
• UVLO and OVLO Circuits Ensure Proper Drive Voltage
• Rated From –40°C to 125°C Junction Temperature
• RoHS Compliant
• Accurate On-Die Current Sensing (±5%)
• APPLICATIONS
  • Digitally-Controlled Synchronous-Buck Power Stages
  • High Current Dual-Phase VRM/EVRD Regulators for Desktop, Server, Telecom and Notebook Processors

• Supply voltage (Min) (V)
• 2.2
• Supply voltage (Max) (V)
• 18
• Number of outputs
• 2
• Peak output current (A)
• 10
• Prop delay (ns)
• 32
• Driver configuration
• Dual
• Operating temperature range (C)
• -40 to 125
• Rating
• Catalog

UCD7242的完整型号有：HPA00846RSJR、UCD7242RSJR、UCD7242RSJT，以下是这些产品的关键参数及官网采购报价：

HPA00846RSJR，工作温度：-40 to 125，封装：VQFN-HR (RSJ)-32，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：-，引脚镀层/焊球材料：-，TI官网HPA00846RSJR的批量USD价格：2.332（1000+）

UCD7242RSJR，工作温度：-40 to 125，封装：VQFN-HR (RSJ)-32，包装数量MPQ：2500个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网UCD7242RSJR的批量USD价格：2.332（1000+）

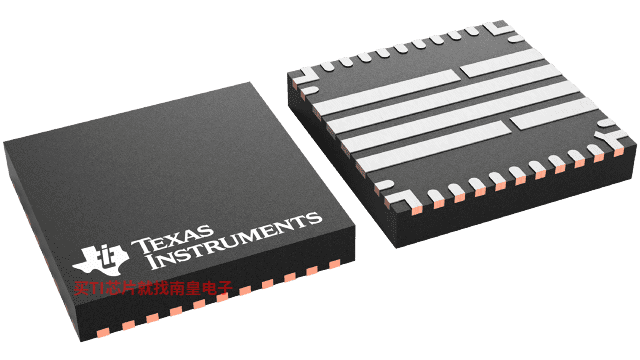

UCD7242RSJT，工作温度：-40 to 125，封装：VQFN-HR (RSJ)-32，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网UCD7242RSJT的批量USD价格：2.798（1000+）

FUSION_DIGITAL_POWER_DESIGNER — Digital Power 软件

Fusion Digital Power图形用户界面 (GUI) 软件用于配置和监视精选的德州仪器 (TI) 数字电源控制器以及序列发生器/运行状况监视器。此应用程序使用 PMBus 协议通过 TI USB 适配器经由串行总线与器件进行通信。

FUSION_MFR_GUI — Fusion Digital Power 制造工具

The Fusion Digital Power Manufacturing Tool (aka MFR GUI) is a Graphical User Interface used to download firmware, upgrade firmware, configure, calibrate and test .

The MFR GUI supports the same devices as Fusion Digital Power Designer software. This tool is typically used in manufacturing (...)

PSPICE-FOR-TI — 适用于 TI 设计和模拟工具的 PSpice

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用，包括业内超大的模型库之一，涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库，您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案，然后再进行布局和制造，可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中，您可以搜索 TI (...)

PMP20481 — 适用于 5V 和 7V 应用的高效紧凑型双路 10A 数字负载点参考设计

PMP20481 参考设计将数字 TPS40425 控制器与数字降压驱动器 UCD7242 配对使用，适用于双 10A 负载点，具有微小的 0.625"x1.075" (15.9mmx27.3mm) 解决方案尺寸。UCD7242 将双 10A 同步降压电源驱动器完全集成到 6mmx6mm 的小型 QFN 封装中。PMP20481 展示了高效率负载点，具有出色的热性能，可用于高输出应用。
